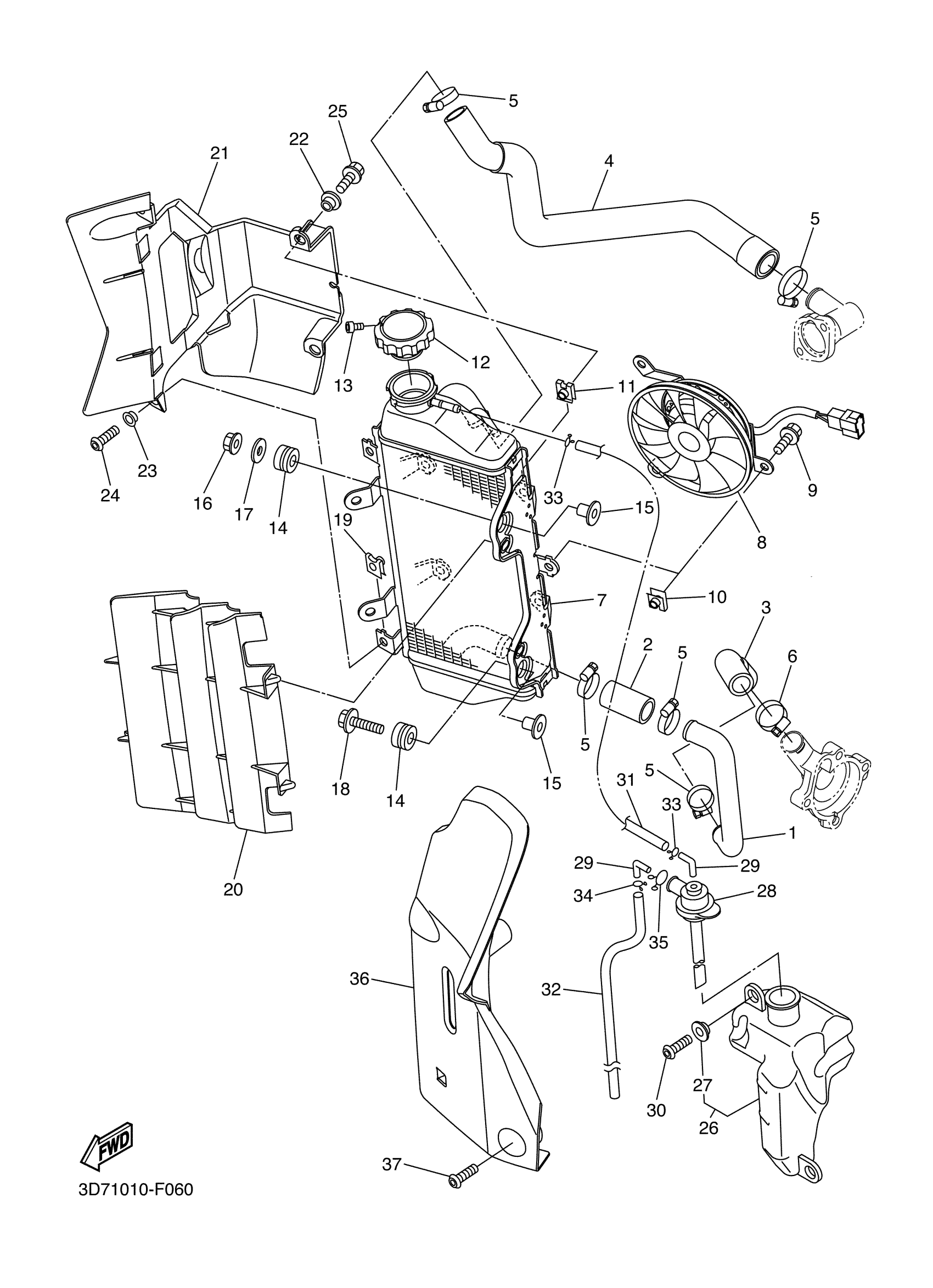

Yamaha WR25XZW (WR250X) 32CE 2010 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

3D7-12481-00-00

Unavailable

2

HOSE 2

3D7-12577-00-00

$5.49

3

HOSE 3

3D7-12578-00-00

$10.99

4

HOSE 4

3D7-12579-00-00

$40.99

5

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

6

HOSE CLAMP ASSY

90450-28001-00

$14.99

7

RADIATOR ASSY

3D7-12461-10-00

$571.99

8

BLOWER ASSY

3D7-12405-00-00

Unavailable

9

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

10

NUT 1

5SL-12671-00-00

$6.99

11

NUT 1

5SL-12671-00-00

$6.99

12

CAP, RADIATOR

3D7-12462-00-00

$44.99

13

BOLT, SOCKET

91317-03006-00

$9.49

14

GROMMET

90480-15010-00

Unavailable

15

COLLAR

90387-0614M-00

$11.49

16

NUT, FLANGE

95702-06500-00

Unavailable

17

WASHER, PLATE

90201-06033-00

Unavailable

18

BOLT, WITH WASHER

90119-06181-00

Unavailable

19

NUT, SPRING

90183-061A3-00

Unavailable

20

PANEL 1

3D7-2172A-00-00

Unavailable

21

GUIDE, AIR

3D7-2137Y-00-00

Unavailable

22

COLLAR

90387-06130-00

Unavailable

23

COLLAR

90387-06180-00

Unavailable

24

SCREW(4DN)

90149-06302-00

Unavailable

25

BOLT, FLANGE

95817-06016-00

Unavailable

26

TANK, RECOVERY

3D7-21871-00-00

Unavailable

27

COLLAR

90387-08079-00

Unavailable

28

CAP

3D7-21875-00-00

Unavailable

29

ELBOW

26H-21828-00-00

Unavailable

30

SCREW(3XV)

90149-06298-00

Unavailable

31

PIPE 1

3D7-21816-00-00

Unavailable

32

TUBE,FLEXUBLE

91A11-05056-00

Unavailable

33

CLIP 101235600

90467-08003-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable

35

CLIP

90467-10M04-00

Unavailable

36

PANEL, INNER

3D7-2175E-01-00

Unavailable

37

SCREW(3XV)

90149-06298-00

Unavailable
