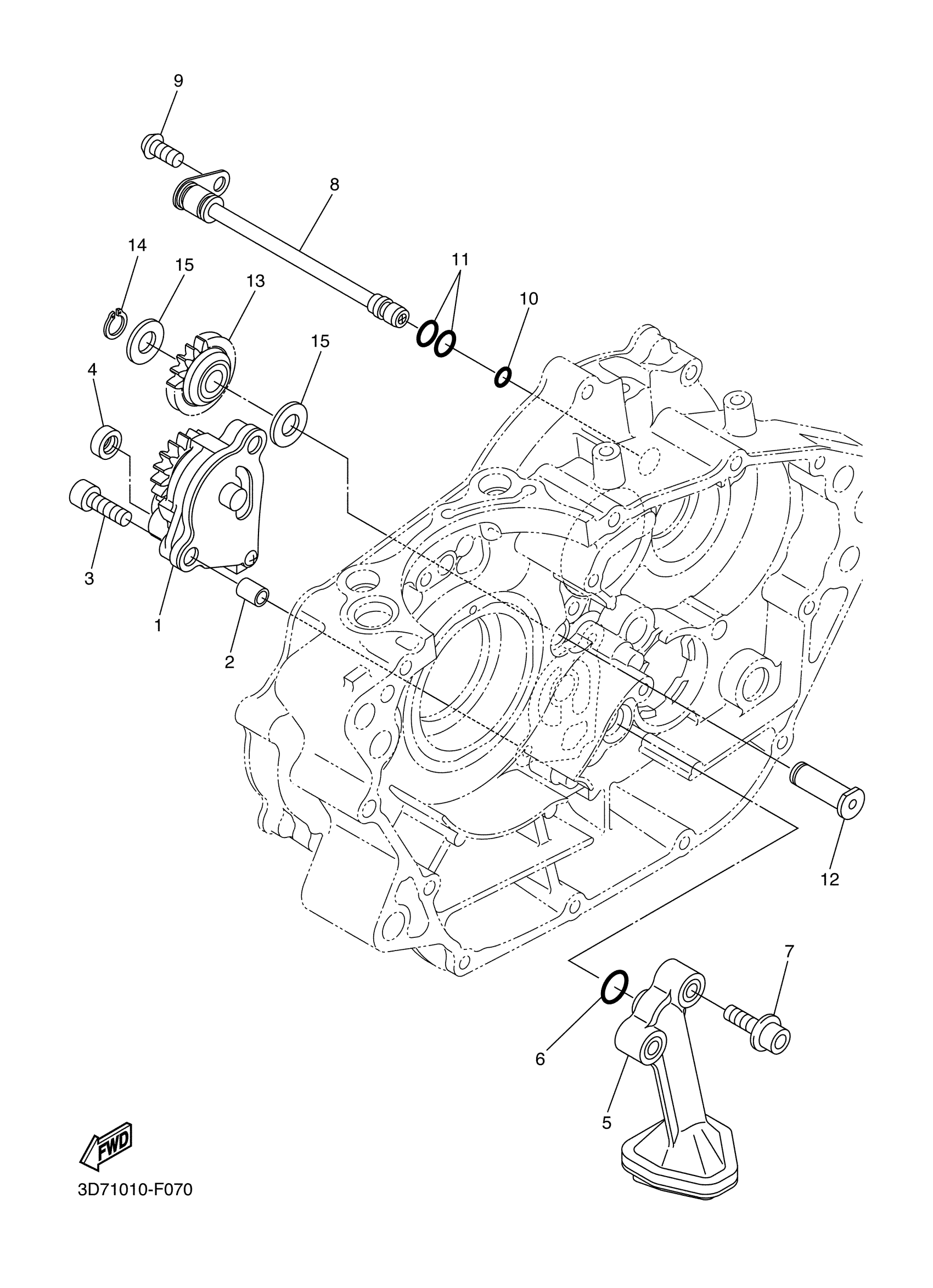

Yamaha WR25XZW (WR250X) 32CE 2010 OIL PUMP Diagram

OIL PUMP ASSY

3D7-13300-00-00

$164.99

PIN, DOWEL

99530-08012-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

GASKET (5Y1)

90430-08178-00

$5.60

STRAINER HOUSING ASSY

3D7-13410-00-00

Unavailable

O-RING (7OR)

93210-12648-00

$9.49

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

PIPE, DELIVERY 2

3D7-13171-00-00

Unavailable

SCREW

90149-06081-00

$8.49

O-RING (11M)

93210-07540-00

$7.49

O-RING (1J7)

93210-09350-00

$7.49

SHAFT, IDLE GEAR

3D7-13342-00-00

Unavailable

GEAR, OIL PUMP IDLE

3D7-13341-00-00

Unavailable

CIRCLIP(10W)

99009-10400-00

$4.73

WASHER, PLATE (2W5)

90201-10614-00

$8.49
