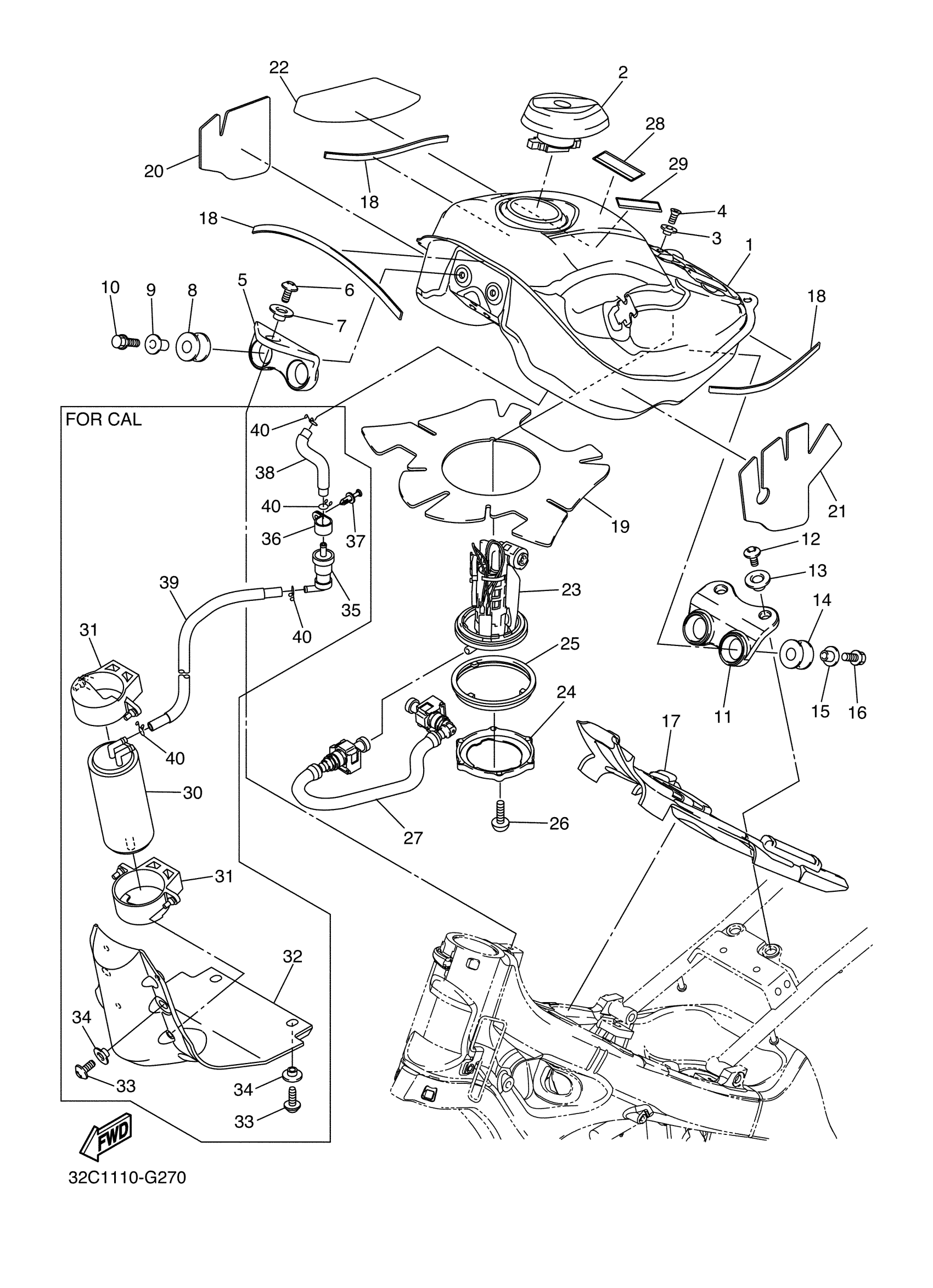

Yamaha WR25XZW (WR250X) 32CE 2010 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3D7-24110-30-P0

$2,067.99

2

CAP ASSY

3D7-24602-30-00

Unavailable

3

BRACKET, SEAT

4EW-2412F-00-00

$11.85

4

SCREW, FLAT

98707-06020-00

$6.23

5

BRACKET, FUEL TANK 1

3D7-24191-00-00

Unavailable

6

SCREW(4DN)

90149-06302-00

Unavailable

7

COLLAR(50M)

90387-087L0-00

$5.76

8

GROMMET

3D7-24339-00-00

$3.08

9

COLLAR

90387-06136-00

$5.30

10

BOLT, FLANGE

95022-06025-00

$1.37

11

BRACKET, FUEL TANK 2

3D7-24192-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06095-00

$5.86

13

COLLAR(50M)

90387-087L0-00

$5.76

14

GROMMET

3D7-24339-00-00

$3.08

15

COLLAR

90387-06136-00

$5.30

16

BOLT, FLANGE

95022-06025-00

$1.37

17

DAMPER, LOCATING 1

3D7-24181-00-00

Unavailable

18

MOLD, FUEL TANK

3D7-24188-00-00

Unavailable

19

DAMPER, PLATE 4

3D7-2414N-00-00

Unavailable

20

DAMPER, PLATE 5

3D7-2414P-00-00

Unavailable

21

DAMPER, PLATE 6

3D7-2414R-01-00

Unavailable

22

SEAL

3D7-21268-00-00

Unavailable

23

FUEL PUMP COMP.

3D7-13907-14-00

Unavailable

24

BRACKET, FUEL PUMP

3D7-24491-00-00

Unavailable

25

O-RING

1S4-24486-00-00

Unavailable

26

BOLT, BUTTON HEAD

92012-05016-00

Unavailable

27

PIPE, FUEL 1

3D7-13971-01-00

Unavailable

28

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

29

LABEL, CAUTION

5PW-2415E-12-00

Unavailable

30

CANISTER ASSY

32C-24170-00-00

Unavailable

31

DAMPER, LOCATING 2

32C-24182-00-00

Unavailable

32

COVER, CANISTER

32C-2419E-00-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-06095-00

$5.86

34

COLLAR (3L1)

90387-07717-00

Unavailable

35

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

36

CLAMP

90464-15014-00

Unavailable

37

RIVET

90269-05001-00

Unavailable

38

PIPE 10

32C-24321-00-00

Unavailable

39

PIPE 11

32C-24322-00-00

Unavailable

40

CLIP

90467-090A2-00

Unavailable
