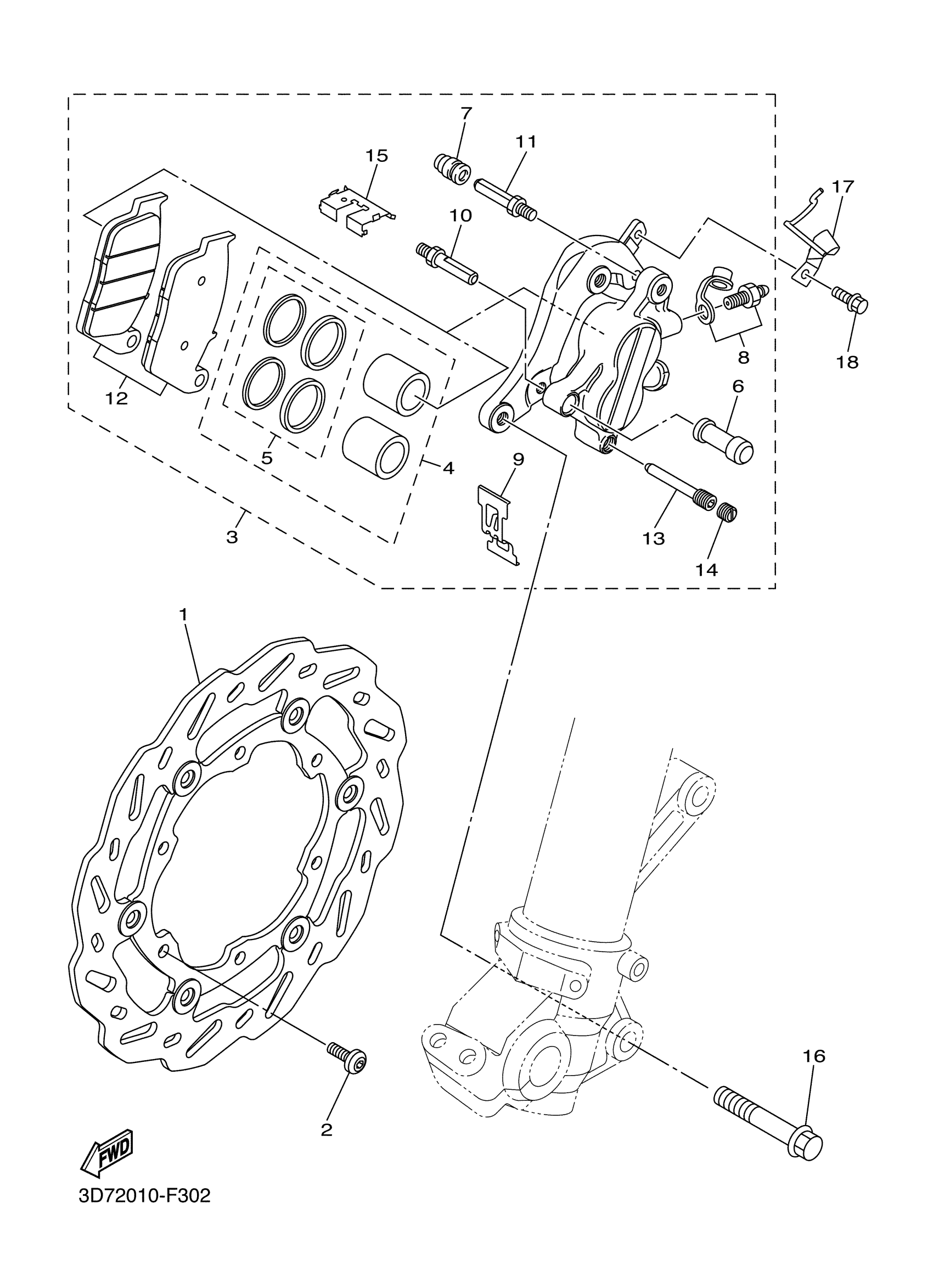

Yamaha WR25XZW (WR250X) 32CE 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3D7-2581T-12-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

3

CALIPER ASSY (LEFT)

3D7-2580T-10-00

$377.05

4

PISTON ASSY, CALIPER

3D7-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

6

BOOT 2

1UY-25937-51-00

$11.48

7

BOOT, CALIPER

3JD-25917-00-00

$7.03

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

SPRING, RETURN

4TU-25977-00-00

Unavailable

10

BOLT

3SP-25914-51-00

$3.67

11

BOLT

3D7-25926-00-00

$8.80

12

BRAKE PAD KIT

3D7-W0045-10-00

Unavailable

13

PIN 2

4TU-25744-00-00

$5.67

14

PLUG

5DH-25916-00-00

$6.94

15

RETAINER, CALIPER

3D7-25849-00-00

$5.95

16

BOLT, FLANGE

90105-08158-00

Unavailable

17

HOLDER, BRAKE HOSE 1

3D7-25875-00-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable
