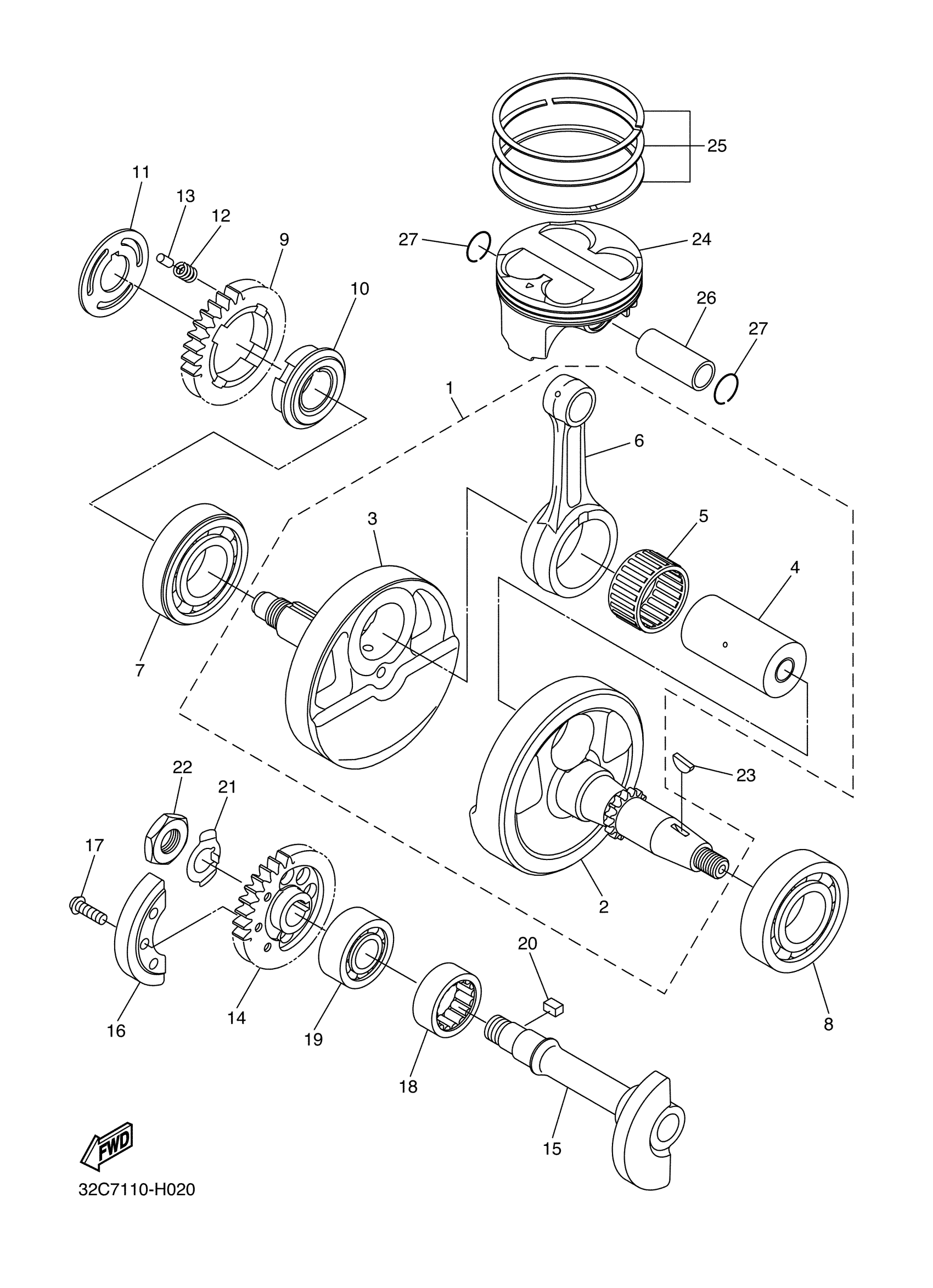

Yamaha WR25XZW (WR250X) 32CE 2010 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

3D7-11400-01-00

Unavailable

2

CRANK 1

3D7-11412-00-00

Unavailable

3

CRANK 2

3D7-11422-00-00

Unavailable

4

PIN, CRANK 1

3D7-11681-01-00

Unavailable

5

BEARING

93310-63257-00

Unavailable

6

ROD, CONNECTING

3D7-11651-00-00

Unavailable

7

BEARING

93306-20648-00

$91.99

8

BEARING

93306-20657-00

Unavailable

9

GEAR, DRIVE

3D7-11536-00-00

Unavailable

10

BOSS, BUFFER

3D7-11496-00-00

Unavailable

11

PLATE, ABSORBER

3D7-11533-00-00

Unavailable

12

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

13

PIN, DOWEL

93605-10090-00

$8.49

14

GEAR, BALANCE WEIGHT

3D7-11531-00-00

Unavailable

15

SHAFT 1

3D7-11455-00-00

Unavailable

16

WEIGHT 1

3D7-11454-00-00

Unavailable

17

SCREW

90149-06068-00

Unavailable

18

BEARING, CYLINDRICAL(3YL)

93311-62574-00

Unavailable

19

BEARING

93305-20301-00

Unavailable

20

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

21

WASHER, LOCK

90215-14003-00

Unavailable

22

NUT, HEXAGON

90170-14171-00

Unavailable

23

KEY, WOODRUFF

90280-03006-00

Unavailable

24

PISTON (STD)

3D7-11631-00-00

Unavailable

25

PISTON RING SET (STD)

5NL-11603-11-00

Unavailable

26

PIN, PISTON

4C8-11633-00-00

Unavailable

27

CIRCLIP

93450-18157-00

Unavailable
