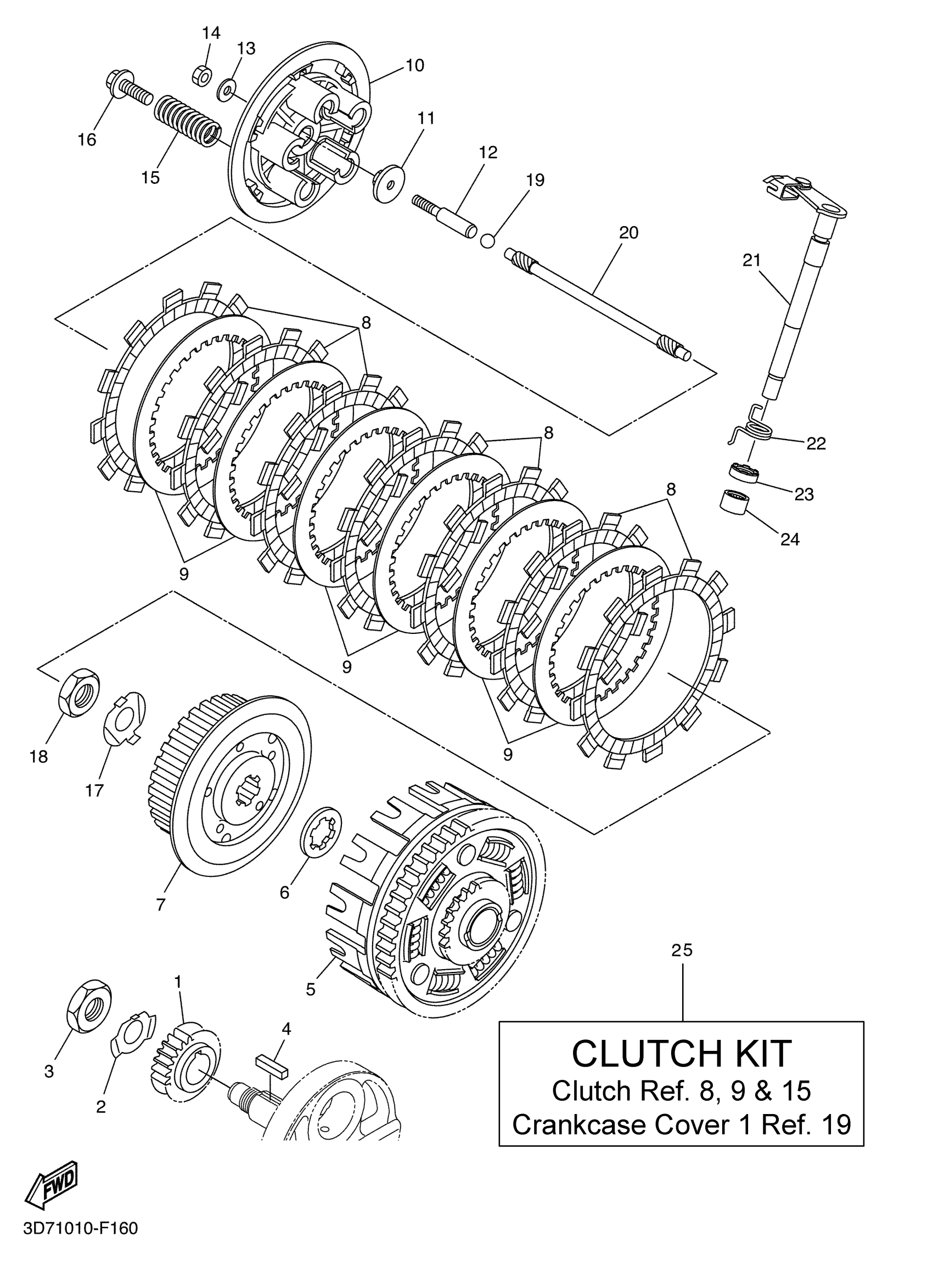

Yamaha WR25XZW (WR250X) 32CE 2010 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

3D7-16111-00-00

Unavailable

2

WASHER, LOCK

90215-16001-00

$4.35

3

NUT(24V)

90170-16343-00

$14.99

4

KEY, STRAIGHT

90282-05009-00

Unavailable

5

PRIMARY DRIVEN GEAR COMP.

3D7-16150-00-00

Unavailable

6

PLATE, THRUST 1

30X-16154-00-00

$25.99

7

BOSS, CLUTCH

3D7-16371-00-00

Unavailable

8

PLATE, FRICTION

3XJ-16321-00-00

$22.99

9

PLATE, CLUTCH 1

3XJ-16324-10-00

$13.49

10

PLATE, PRESSURE 1

3D7-16351-00-00

Unavailable

11

PLATE, PUSH

1W1-16358-01-00

$23.99

12

ROD, PUSH 1

3D7-16356-00-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

SPRING (583 CLUTCH)

90501-23391-00

$7.49

16

SCREW, WITH WASHER (583)

90159-06010-00

Unavailable

17

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

18

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

19

BALL (498)

93511-32027-00

Unavailable

20

ROD, PUSH 2

3D7-16357-00-00

Unavailable

21

PUSH LEVER ASSY

3D7-16380-00-00

Unavailable

22

SPRING, TORSION

90508-18052-00

Unavailable

23

OIL SEAL

93102-12004-00

Unavailable

24

BEARING

93317-11295-00

Unavailable

25

CLUTCH PLATE KIT

2CF-W001G-00-00

Unavailable
