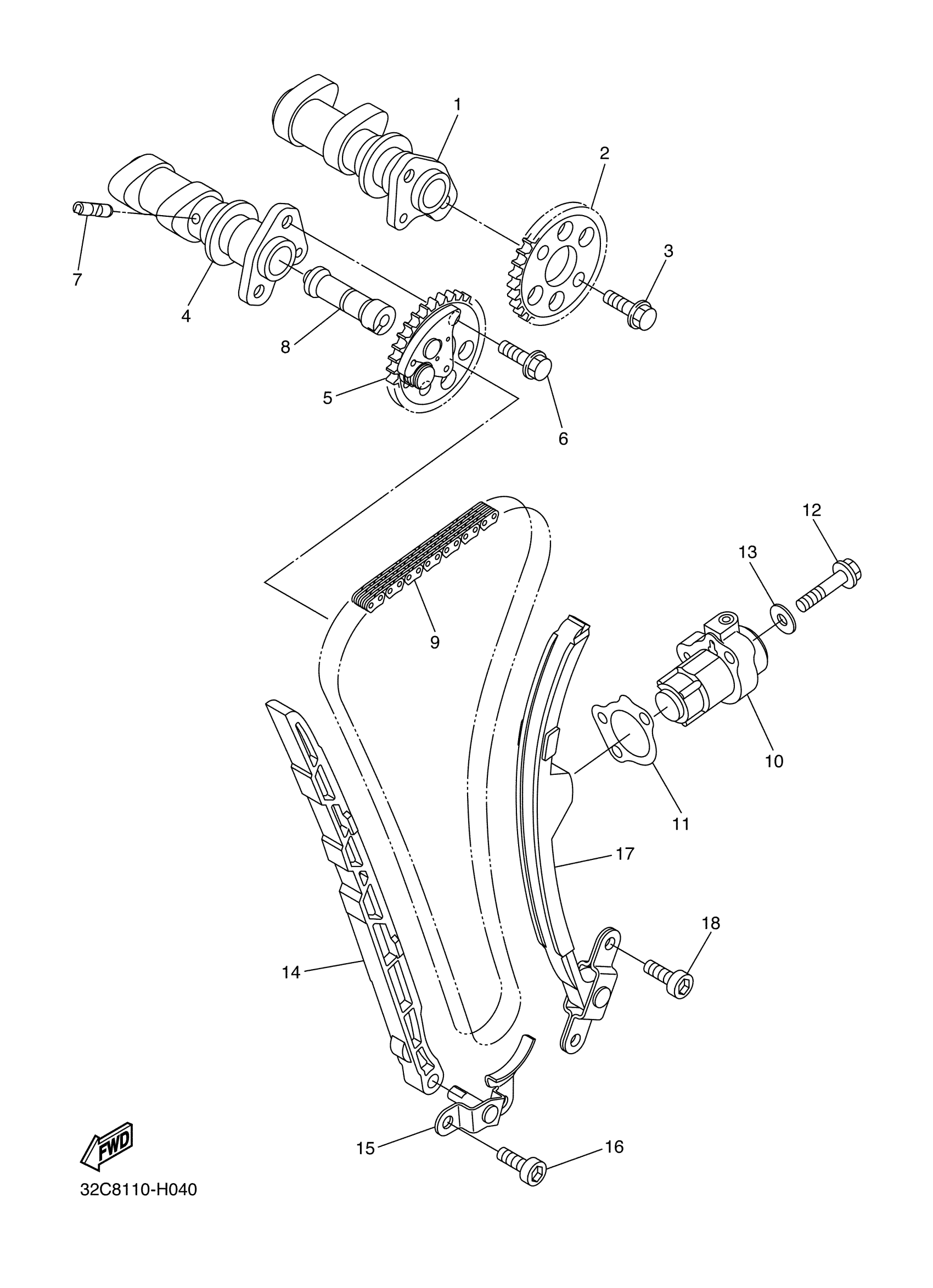

Yamaha WR25XZW (WR250X) 32CE 2010 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

3D7-12171-00-00

$243.99

2

SPROCKET, CAM CHAIN

3D7-12176-00-00

Unavailable

3

BOLT, FLANGE

90105-07004-00

$5.60

4

CAMSHAFT 2

3D7-12181-00-00

$188.99

5

DECOMPRESSION ASSY

3D7-12280-00-00

Unavailable

6

BOLT, FLANGE

90105-07004-00

$5.60

7

PIN, DECOMPRESSION LEVER

3D7-12284-01-00

$15.49

8

LEVER, DECOMPRESSION SPRING

3D7-12290-00-00

Unavailable

9

CHAIN

94591-57118-00

$35.99

10

TENSIONER ASSY, CAM CHAIN

3D7-12210-12-00

$204.99

11

GASKET, TENSIONER CASE

15B-12213-00-00

$10.99

12

BOLT, FLANGE

95022-06025-00

$3.62

13

GASKET 256113960000

90430-06014-00

Unavailable

14

GUIDE, STOPPER 1

3D7-12231-00-00

Unavailable

15

PLATE, GUIDE STOPPER 1

3D7-12233-00-00

Unavailable

16

BOLT (33M)

91312-06014-00

Unavailable

17

GUIDE, STOPPER 2

3D7-12241-00-00

Unavailable

18

BOLT (33M)

91312-06014-00

Unavailable
