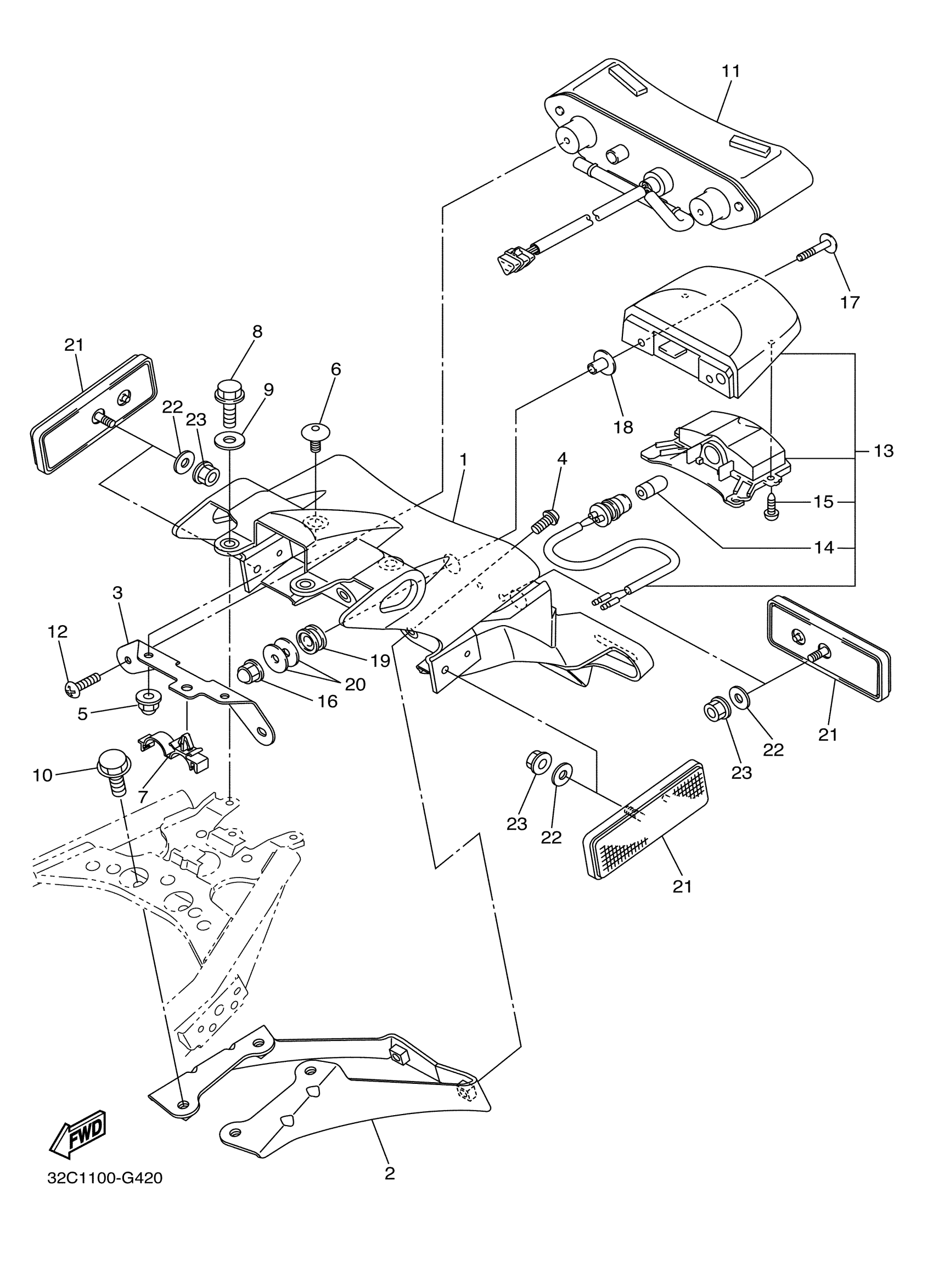

Yamaha WR25XXL (WR250X) 32C2 2008 TAILLIGHT Diagram

#

Description
Price

1

GUARD, MUD

32C-21629-01-00

$96.99

2

BRACKET, REAR STAY

32C-21688-00-00

Unavailable

3

STAY 2

32C-2164G-00-00

Unavailable

4

BOLT,HEX. SOCKET BUTTON

90111-06095-00

$8.49

5

NUT, CROWN

90176-05003-00

$3.55

6

BOLT

90111-05011-00

$5.60

7

CLAMP

90464-16006-00

$9.49

8

BOLT, FLANGE

90105-05025-00

Unavailable

9

WASHER PLATE (664)

90201-05556-00

Unavailable

10

BOLT, FLANGE

95817-06012-00

$1.43

11

TAILLIGHT UNIT ASSY

32C-84710-01-00

$150.99

12

SCREW, TRUSS TAP.

97707-50014-00

$8.49

13

LICENCE LIGHT UNIT ASSY

32C-84745-01-00

$77.99

14

BULB

4SV-84347-00-00

$8.99

15

SCREW, PAN TAP.2 SLIT

97707-40612-00

$6.99

16

NUT, CROWN(47X)

90176-05054-00

Unavailable

17

BOLT

90111-05010-00

Unavailable

18

COLLAR

90387-06159-00

Unavailable

19

DAMPER

4WM-83513-00-00

Unavailable

20

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

21

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

22

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

23

NUT, FLANGE

95702-05500-00

Unavailable
