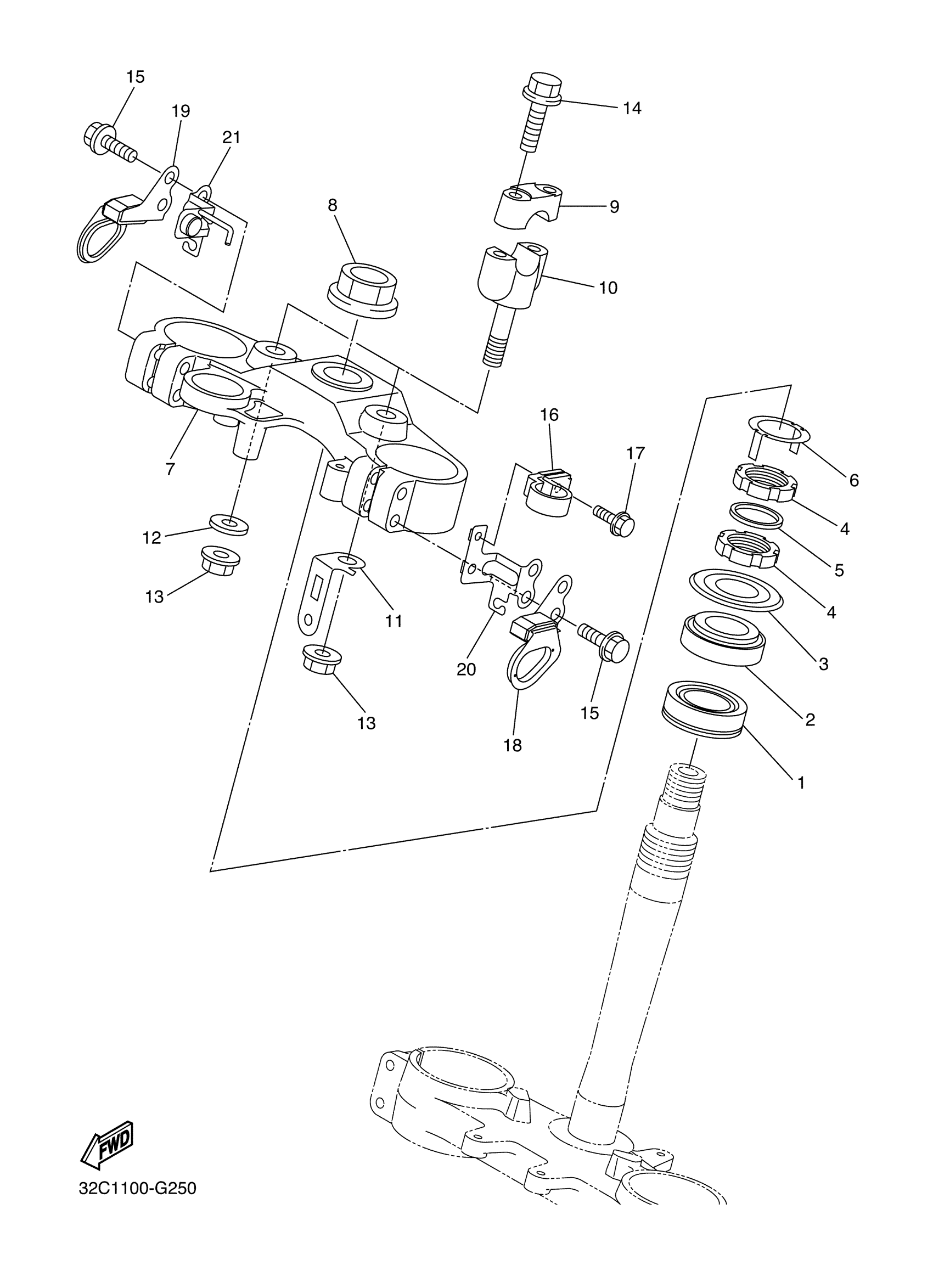

Yamaha WR25XXL (WR250X) 32C2 2008 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$58.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

4

NUT(4JX)

90179-28650-00

Unavailable

5

WASHER, PLATE(4GY)

90202-28216-00

$4.72

6

WASHER, SPECIAL

4GY-23418-00-00

Unavailable

7

CROWN, HANDLE

3D7-23435-01-00

Unavailable

8

NUT(2HG)

90179-24542-00

$18.99

9

HOLDER, HANDLE UPPER

1E6-23441-10-P1

$25.99

10

HOLDER, HANDLE LOWER

3D7-23442-00-00

$46.99

11

STAY

3D7-2317E-00-00

Unavailable

12

WASHER, PLATE

90201-12027-00

$8.49

13

NUT, SELF-LOCKING

95602-12200-00

$4.46

14

BOLT, FLANGE

90105-08154-00

$7.49

15

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

16

GUIDE, CABLE

5VK-23389-00-00

Unavailable

17

BOLT, FLANGE

90105-05016-00

Unavailable

18

STAY, FLASHER 1

32C-83368-01-00

Unavailable

19

STAY, FLASHER 2

32C-83369-01-00

Unavailable

20

STAY, HEADLIGHT 1

32D-84318-00-00

Unavailable

21

STAY, HEADLIGHT 2

32D-84319-00-00

Unavailable
