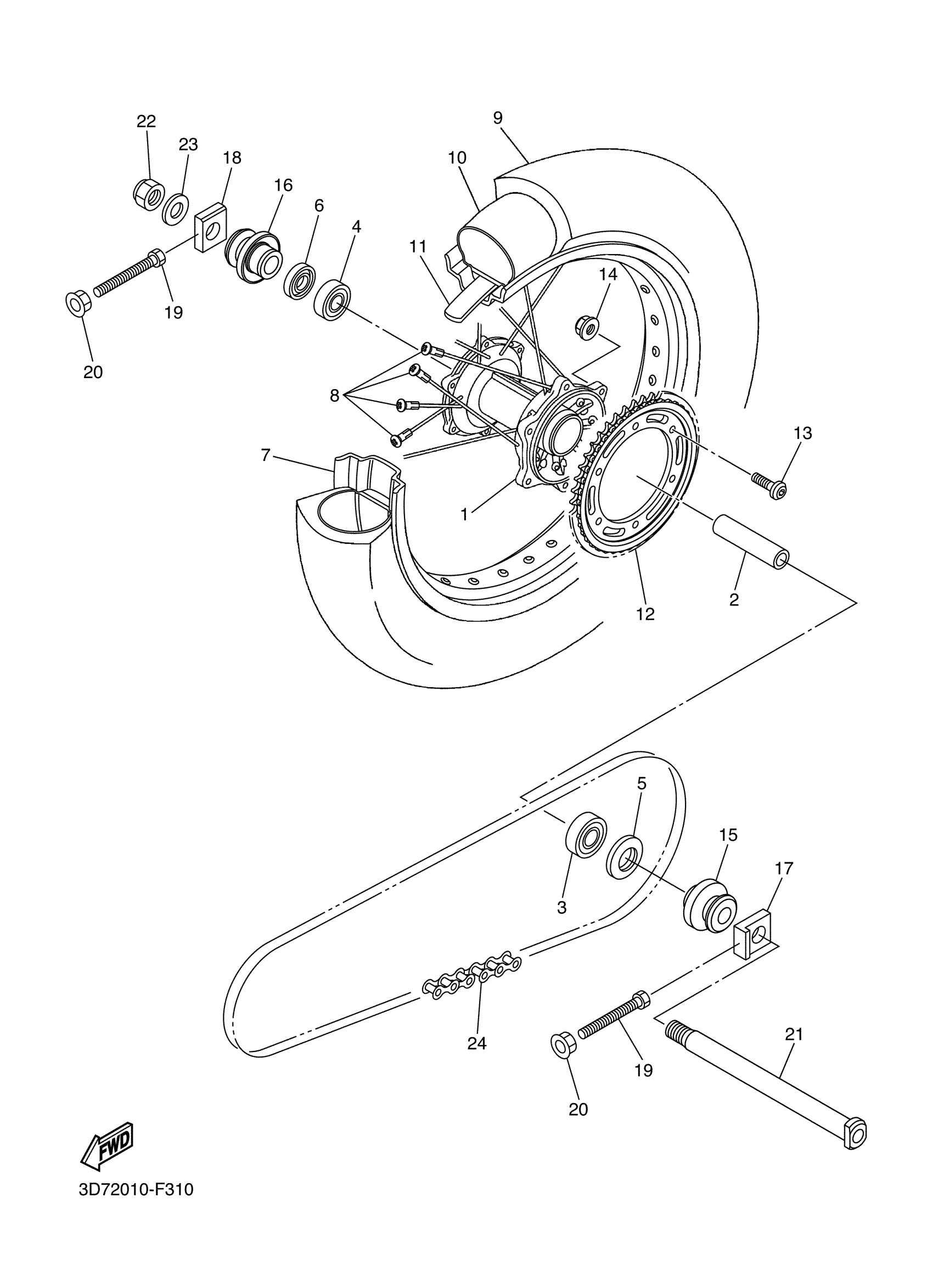

Yamaha WR25XXL (WR250X) 32C2 2008 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

3D7-25311-00-00

$314.99

2

SPACER, BEARING

5ET-25317-00-00

$49.99

3

BEARING(89A)

93306-27206-00

$70.99

4

BEARING(85G)

93306-07202-00

$38.99

5

OIL SEAL

93106-30001-00

$12.49

6

OIL SEAL

93106-30045-00

$10.49

7

RIM

94440-17002-00

Unavailable

8

SPOKE SET, REAR

3D7-25304-10-00

Unavailable

9

TIRE (140/70R17 M/C 66H BT090R)

94114-17008-00

Unavailable

10

TUBE

94214-17003-00

$49.99

11

BAND, RIM

94314-17035-00

$5.49

12

RR. WHEEL SPROCKET COMP.

3D7-25410-10-00

Unavailable

13

BOLT

90111-08030-00

$8.49

14

NUT, SELF-LOCKING

95602-08200-00

$3.20

15

COLLAR ASSY

3D7-2530S-01-00

$59.99

16

COLLAR ASSY

3D7-2531S-01-00

Unavailable

17

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

18

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

19

BOLT

90101-08006-00

Unavailable

20

NUT

90179-08019-00

Unavailable

21

AXLE, WHEEL

3D7-25381-00-00

Unavailable

22

NUT, SELF-LOCKING

90185-20002-00

Unavailable

23

WASHER, PLATE

90201-20020-00

Unavailable

24

CHAIN

94582-02108-00

Unavailable
