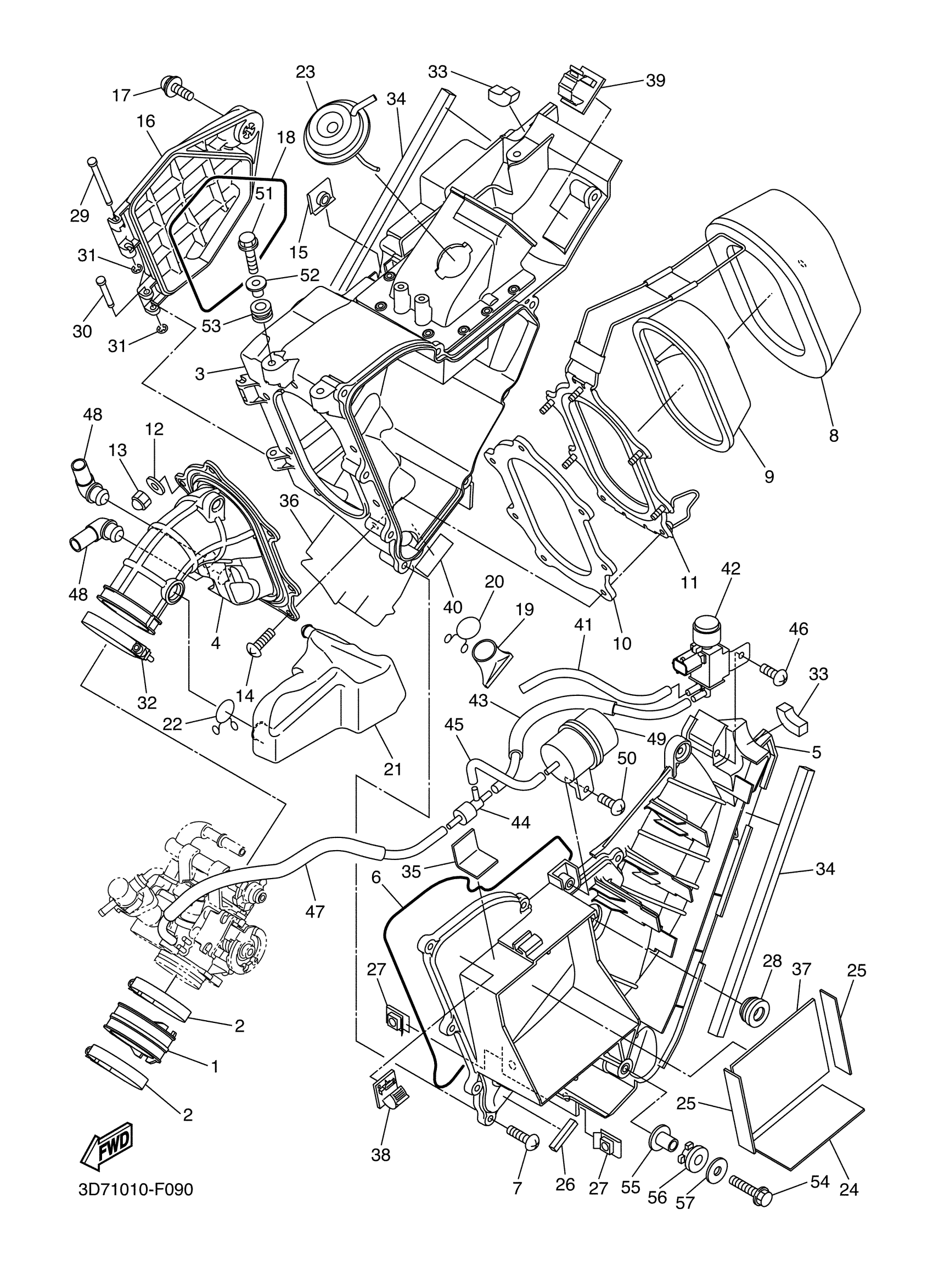

Yamaha WR25XXL (WR250X) 32C2 2008 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

3D7-13586-10-00

Unavailable

2

HOSE CLAMP ASSY

90450-54006-00

$14.99

3

AIR CLEANER CASE COMP.

3D7-W1441-00-00

Unavailable

4

JOINT, AIR CLEANER 1

3D7-14453-01-00

Unavailable

5

CAP, CLEANER CASE 1

3D7-14412-00-00

Unavailable

6

SEAL

51Y-14462-00-00

$18.49

7

SCREW, TRUSS TAP.

97707-50025-00

$8.49

8

ELEMENT, AIR CLEANER

1LN-14451-01-00

$22.99

9

GUIDE

4GY-14458-00-00

$71.99

10

SEAL

1LN-14462-00-00

Unavailable

11

HOLDER, GUIDE

3D7-14459-00-00

Unavailable

12

WASHER, PLATE

90201-05040-00

$1.96

13

NUT, CROWN

90176-05005-00

$1.75

14

SCREW, BINDING

90154-05021-00

$8.49

15

NUT, SPRING

90183-061A0-00

Unavailable

16

COVER, CLEANER CASE 1

3D7-1441A-00-00

Unavailable

17

SCREW, WITH WASHER

90159-06039-00

Unavailable

18

SEAL

3D7-14462-00-00

Unavailable

19

SEAL

59V-14457-00-00

Unavailable

20

CLIP

90467-220A1-00

Unavailable

21

CHAMBER, AIR

3D7-13581-00-00

Unavailable

22

CLIP

90467-180A1-00

Unavailable

23

DIAPHRAGM

3D7-14545-00-00

Unavailable

24

DAMPER, PLATE 1

5EJ-2414H-00-00

Unavailable

25

DAMPER 2

5TJ-14426-00-00

Unavailable

26

DAMPER 1

5PS-28217-00-00

Unavailable

27

NUT, SPRING

90183-060A7-00

Unavailable

28

GROMMET

5CA-14435-00-00

Unavailable

29

PIN

90249-05005-00

Unavailable

30

PIN,SPEC'L SHAPE

90249-05006-00

Unavailable

31

CIRCLIP (EU0)

99080-04600-00

Unavailable

32

HOSE CLAMP ASSY

90450-54009-00

Unavailable

33

DAMPER 2

3D7-14426-00-00

Unavailable

34

DAMPER 3

3D7-1442G-00-00

Unavailable

35

DAMPER 4

3D7-1442H-00-00

Unavailable

36

PROTECTOR

3D7-1442F-00-00

Unavailable

37

DAMPER 1

29N-14425-00-00

Unavailable

38

CLAMP

90464-13007-00

Unavailable

39

CLAMP

90464-20021-00

Unavailable

40

DAMPER 2

3C5-21639-00-00

Unavailable

41

HOSE, VACUUM SENSING 4

3D7-13533-00-00

Unavailable

42

SOLENOID VALVE

5PS-1410H-01-00

Unavailable

43

HOSE, VACUUM SENSING 2

3D7-13544-00-00

Unavailable

44

VALVE, CHECK

5PS-14552-01-00

Unavailable

45

HOSE

90445-08030-00

Unavailable

46

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

47

HOSE, VACUUM SENSING 3

3D7-13532-00-00

Unavailable

48

PIPE

5TJ-14419-00-00

Unavailable

49

TANK, SURGE

5PS-1446E-00-00

Unavailable

50

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

51

BOLT, FLANGE

95817-06020-00

Unavailable

52

COLLAR

90387-06199-00

Unavailable

53

GROMMET(4FM)

90480-12596-00

Unavailable

54

BOLT, FLANGE

95822-06025-00

Unavailable

55

COLLAR

90387-07021-00

Unavailable

56

GROMMET

90480-15001-00

Unavailable

57

WASHER, PLATE

90201-06081-00

Unavailable
