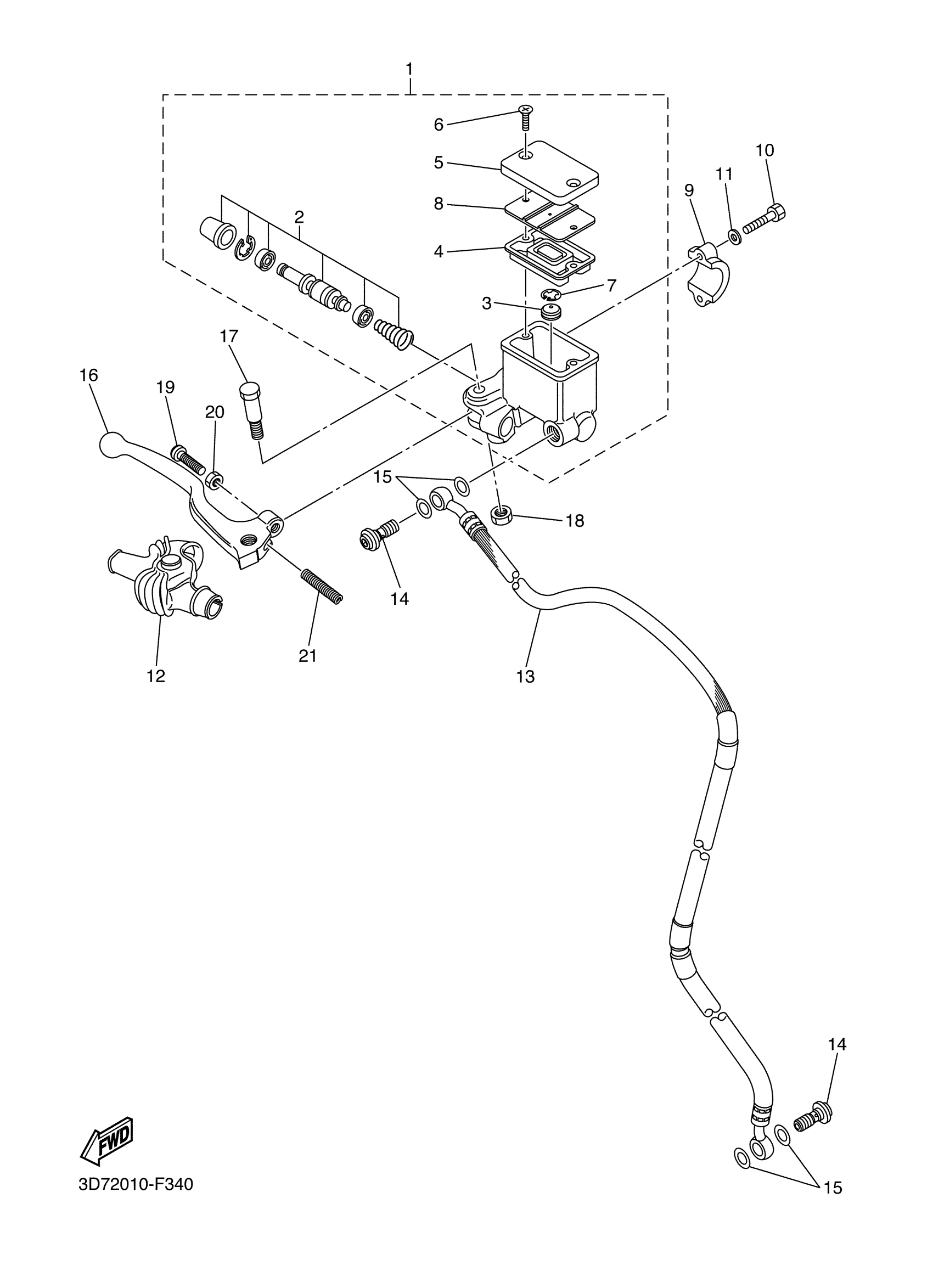

Yamaha WR25XXL (WR250X) 32C2 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3D7-W2587-10-00

Unavailable

2

CYL KIT,MASTER

5VK-25807-00-00

Unavailable

3

SEPARATOR ASSY

5CG-25715-00-00

$13.49

4

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$27.99

5

CAP, RESERVOIR

3GM-25852-22-00

$63.99

6

SCREW, FLAT

98707-04012-00

$2.18

7

CIRCLIP

5CG-2585G-00-00

$5.49

8

PLATE, DIAPHRAGM

3GM-2585B-20-00

Unavailable

9

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER(6TA)

92907-06600-00

$2.72

12

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

13

HOSE, BRAKE 1

3D7-25872-10-00

Unavailable

14

BOLT, UNION

90401-10172-00

$5.60

15

GASKET

90430-10005-00

$9.49

16

LEVER 2

55Y-83922-02-00

Unavailable

17

BOLT (4L0)

90109-06577-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

SCREW (2L0)

90149-06131-00

Unavailable

20

NUT

90170-06021-00

Unavailable

21

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable
