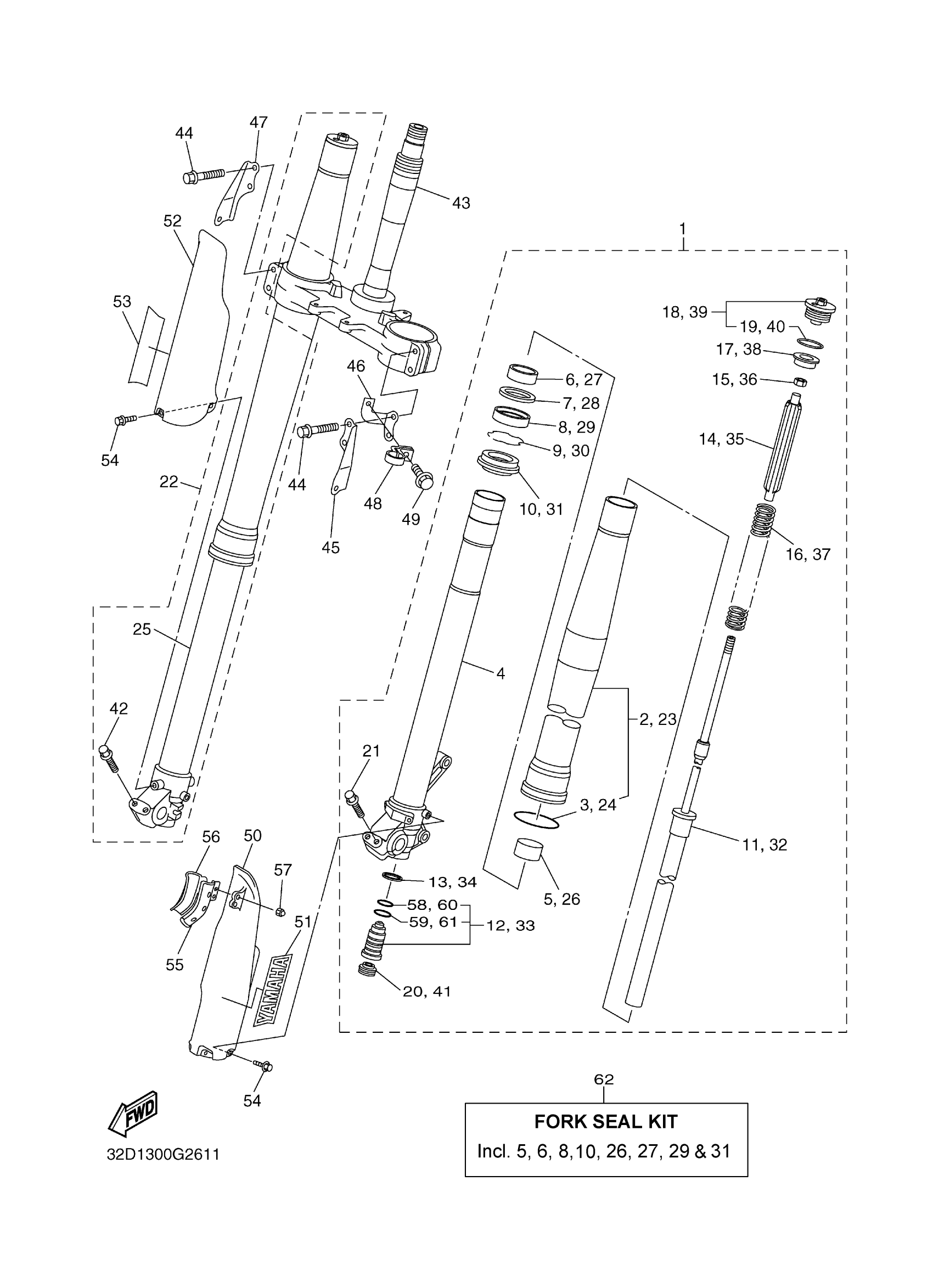

Yamaha WR25XXL (WR250X) 32C2 2008 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

32D-23102-10-00

Unavailable

2

. OUTER TUBE COMP

3D7-23106-30-00

Unavailable

3

RING, SNAP

3D7-23153-00-00

$3.02

4

INNER TUBE COMP.1

3D7-23110-00-00

Unavailable

5

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

6

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

7

WASHER, OIL SEAL

5UN-23146-L0-00

Unavailable

8

OIL SEAL

5UN-23145-L0-00

$22.99

9

RING, SNAP

4SS-23153-L0-00

$7.99

10

SEAL, DUST

5HD-23144-L0-00

$30.99

11

CYLINDER COMP., FRONT FORK

32D-23170-00-00

Unavailable

12

VALVE COMP.

32D-2316A-10-00

Unavailable

13

GASKET

2HH-23158-L0-00

$10.99

14

GUIDE, SPRING

3D7-23117-00-00

Unavailable

15

NUT

3XJ-23357-L0-00

$1.04

16

SPRING, FRONT FORK

32D-23141-00-00

Unavailable

17

SEAT, SPRING LOWER

4SS-23143-L0-00

Unavailable

18

BOLT, CAP

3D7-23111-00-00

Unavailable

19

O-RING

3D7-23147-00-00

Unavailable

20

PLUG

3JD-2312G-L0-00

Unavailable

21

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

22

FRONT FORK ASSY (R.H)

32D-23103-10-00

Unavailable

23

. OUTER TUBE COMP

3D7-23106-30-00

Unavailable

24

RING, SNAP

3D7-23153-00-00

$3.02

25

INNER TUBE COMP.2

3D7-23120-00-00

Unavailable

26

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

27

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

28

WASHER, OIL SEAL

5UN-23146-L0-00

Unavailable

29

OIL SEAL

5UN-23145-L0-00

$22.99

30

RING, SNAP

4SS-23153-L0-00

$7.99

31

SEAL, DUST

5HD-23144-L0-00

$30.99

32

CYLINDER COMP., FRONT FORK

32D-23170-00-00

Unavailable

33

VALVE COMP.

32D-2316A-10-00

Unavailable

34

GASKET

2HH-23158-L0-00

$10.99

35

GUIDE, SPRING

3D7-23117-00-00

Unavailable

36

NUT

3XJ-23357-L0-00

$1.04

37

SPRING, FRONT FORK

32D-23141-00-00

Unavailable

38

SEAT, SPRING LOWER

4SS-23143-L0-00

Unavailable

39

BOLT, CAP

3D7-23111-00-00

Unavailable

40

O-RING

3D7-23147-00-00

Unavailable

41

PLUG

3JD-2312G-L0-00

Unavailable

42

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

43

UNDER BRACKET COMP.

3D7-23340-00-00

Unavailable

44

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

45

BRACKET, REFLECTOR 1

32D-85112-00-00

Unavailable

46

GUIDE, CABLE

3D7-2331E-00-00

Unavailable

47

BRACKET, REFLECTOR 1

32D-85112-10-00

Unavailable

48

GUIDE, CABLE

5VK-23389-00-00

Unavailable

49

BOLT, FLANGE

90105-05016-00

Unavailable

50

PROTECTOR 1

3D7-2315H-00-00

Unavailable

51

EMBLEM, YAMAHA

4XL-2153A-20-00

Unavailable

52

PROTECTOR 2

3D7-2315J-00-00

Unavailable

53

EMBLEM, YAMAHA

4XL-2153A-20-00

Unavailable

54

BOLT 2

3SP-23356-L0-00

Unavailable

55

CLAMP

3D7-23466-00-00

Unavailable

56

CLAMP

3D7-23467-00-00

Unavailable

57

NUT, CROWN

90176-06014-00

Unavailable

58

O-RING

4DA-23147-L0-00

Unavailable

59

GASKET

276-23114-01-00

Unavailable

60

O-RING

4DA-23147-L0-00

Unavailable

61

GASKET

276-23114-01-00

Unavailable

62

FORK SEAL KIT (TWO FORKS)

5ET-W003B-00-00

Unavailable
