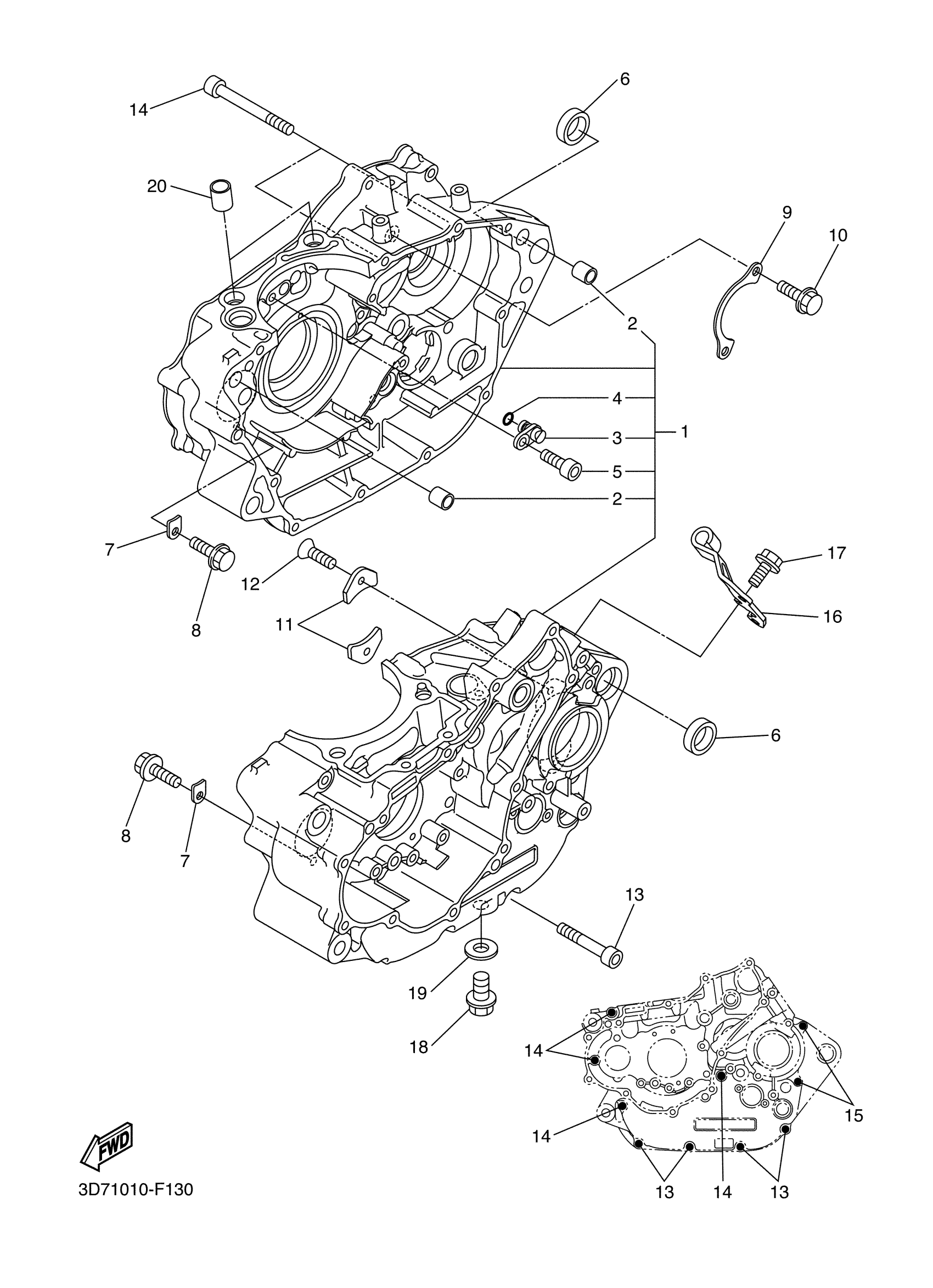

Yamaha WR25XXL (WR250X) 32C2 2008 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3D7-15100-01-00

Unavailable

2

PIN, DOWEL(4XL)

93612-16254-00

$5.60

3

NOZZLE 3

3D7-15155-00-00

Unavailable

4

O-RING (26H)

93210-06632-00

$8.49

5

BOLT,SOCKET

91317-06012-00

$8.49

6

COLLAR

90387-19004-00

Unavailable

7

PLATE, STOPPER 2

5DH-18562-00-00

Unavailable

8

BOLT, FLANGE

95022-06012-00

$3.29

9

PLATE, BEARING COVER

3D7-15388-00-00

$5.49

10

BOLT, FLANGE

95022-06012-00

$3.29

11

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

12

SCREW, COUNTERSUNK

90151-06052-00

$8.49

13

BOLT

91312-06045-00

$4.08

14

BOLT, SOCKET

91317-06065-00

$3.76

15

BOLT, SOCKET

91314-06090-00

$8.49

16

HOLDER, CLUTCH CABLE

3D7-15441-00-00

Unavailable

17

BOLT, FLANGE

95022-06014-00

Unavailable

18

PLUG, STRAIGHT SCREW

90340-12006-00

Unavailable

19

GASKET(3FD)

90430-12213-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable
