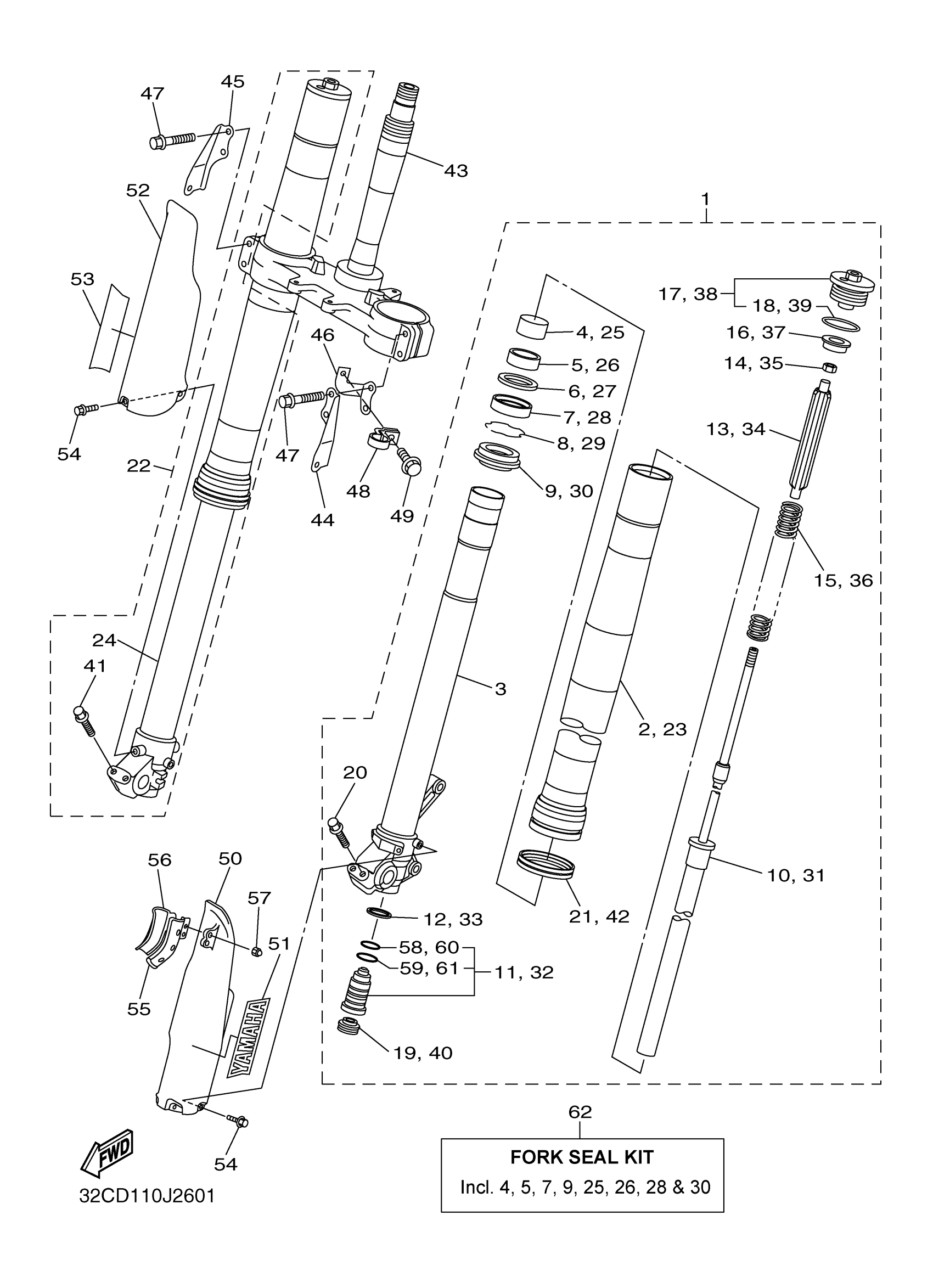

Yamaha WR25RZL (WR250R) 32CD 2010 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

32D-23102-50-00

$1,142.99

2

OUTER TUBE COMP. (L.H)

3D7-23106-50-00

Unavailable

3

INNER TUBE COMP.1

3D7-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

5

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

6

WASHER, OIL SEAL

5UN-23146-L0-00

Unavailable

7

OIL SEAL

5UN-23145-L0-00

$22.99

8

RING, SNAP

4SS-23153-L0-00

$7.99

9

SEAL, DUST

5HD-23144-L0-00

$30.99

10

CYLINDER COMP., FRONT FORK

32D-23170-00-00

Unavailable

11

VALVE COMP.

32D-2316A-00-00

$235.99

12

GASKET

2HH-23158-L0-00

$10.99

13

GUIDE, SPRING

3D7-23117-00-00

Unavailable

14

NUT

3XJ-23357-L0-00

$1.04

15

SPRING, FRONT FORK

32D-23141-00-00

Unavailable

16

SEAT, SPRING LOWER

4SS-23143-L0-00

Unavailable

17

BOLT, CAP

3D7-23111-00-00

Unavailable

18

O-RING

3D7-23147-00-00

Unavailable

19

PLUG

3JD-2312G-L0-00

Unavailable

20

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

21

PROTECTER GUIDE COMP., 1

5XC-2314F-00-00

Unavailable

22

FRONT FORK ASSY (R.H)

32D-23103-50-00

Unavailable

23

OUTER TUBE COMP. (L.H)

3D7-23106-50-00

Unavailable

24

INNER TUBE COMP.2

3D7-23120-00-00

Unavailable

25

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

26

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

27

WASHER, OIL SEAL

5UN-23146-L0-00

Unavailable

28

OIL SEAL

5UN-23145-L0-00

$22.99

29

RING, SNAP

4SS-23153-L0-00

$7.99

30

SEAL, DUST

5HD-23144-L0-00

$30.99

31

CYLINDER COMP., FRONT FORK

32D-23170-00-00

Unavailable

32

VALVE COMP.

32D-2316A-00-00

$235.99

33

GASKET

2HH-23158-L0-00

$10.99

34

GUIDE, SPRING

3D7-23117-00-00

Unavailable

35

NUT

3XJ-23357-L0-00

$1.04

36

SPRING, FRONT FORK

32D-23141-00-00

Unavailable

37

SEAT, SPRING LOWER

4SS-23143-L0-00

Unavailable

38

BOLT, CAP

3D7-23111-00-00

Unavailable

39

O-RING

3D7-23147-00-00

Unavailable

40

PLUG

3JD-2312G-L0-00

Unavailable

41

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

42

PROTECTER GUIDE COMP., 1

5XC-2314F-00-00

Unavailable

43

UNDER BRACKET COMP.

3D7-23340-00-00

Unavailable

44

BRACKET, REFLECTOR 1

32D-85112-00-00

Unavailable

45

BRACKET, REFLECTOR 1

32D-85112-10-00

Unavailable

46

GUIDE, CABLE

3D7-2331E-00-00

Unavailable

47

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

48

GUIDE, CABLE

5VK-23389-00-00

Unavailable

49

BOLT, FLANGE

90105-05016-00

Unavailable

50

PROTECTOR 1

1C3-2315H-10-00

Unavailable

51

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

52

PROTECTOR 2

1C3-2315J-10-00

Unavailable

53

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

54

BOLT 2

3SP-23356-L0-00

Unavailable

55

CLAMP

3D7-23466-00-00

Unavailable

56

CLAMP

3D7-23467-00-00

Unavailable

57

NUT, CROWN

90176-06014-00

Unavailable

58

O-RING

4DA-23147-L0-00

Unavailable

59

GASKET

276-23114-01-00

Unavailable

60

O-RING

4DA-23147-L0-00

Unavailable

61

GASKET

276-23114-01-00

Unavailable

62

FORK SEAL KIT (TWO FORKS)

5ET-W003B-00-00

Unavailable
