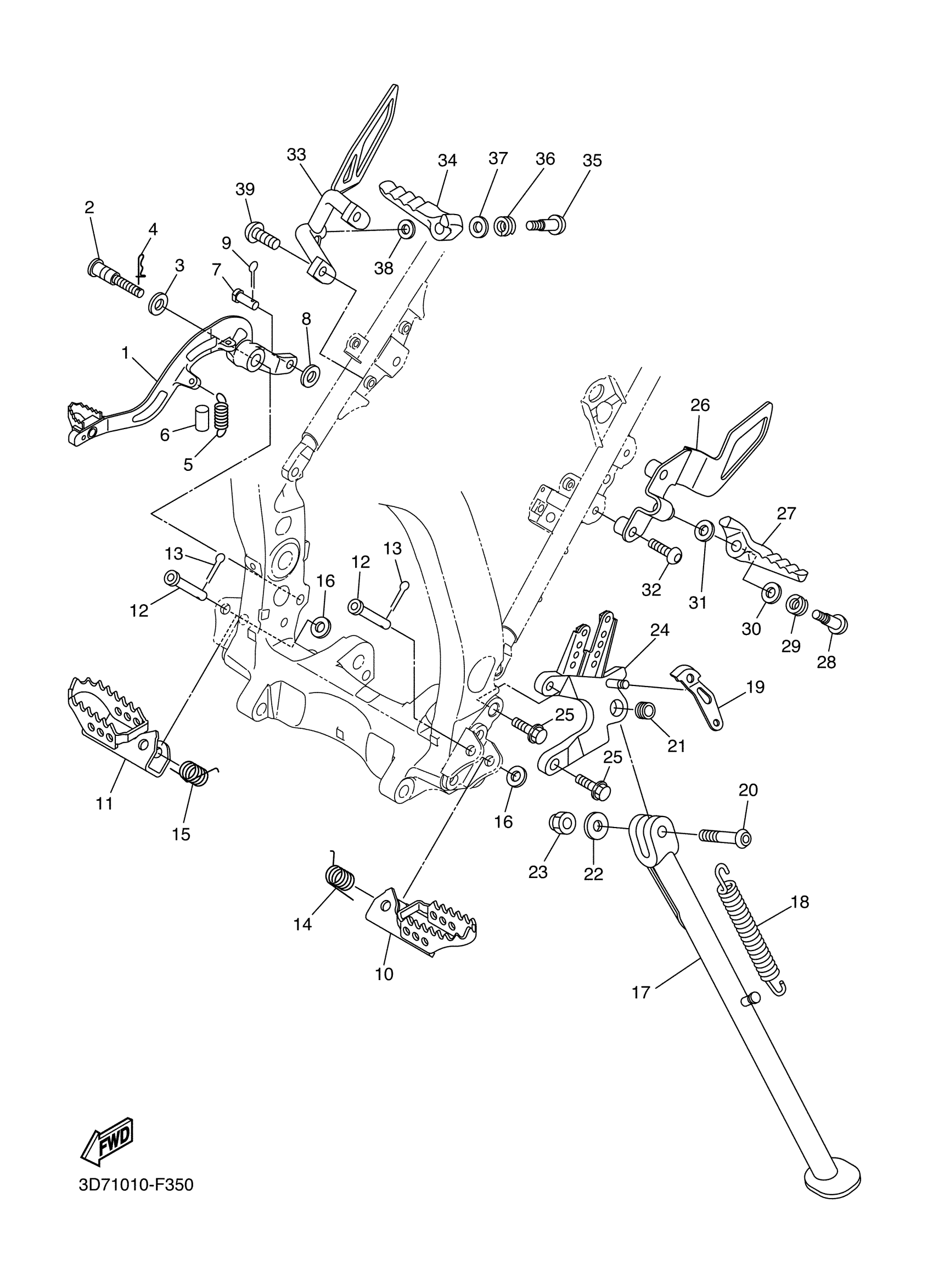

Yamaha WR25RXL (WR250R) 32C1 2008 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3D7-27200-11-00

Unavailable

2

BOLT

3D7-27217-00-00

$30.99

3

WASHER, PLATE

90201-08060-00

$10.49

4

CLIP(3YF)

90468-16191-00

$8.49

5

SPRING, TENSION

90506-16007-00

$8.49

6

HOSE

90445-16012-00

Unavailable

7

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

8

WASHER, PLATE

90201-08044-00

$8.49

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

FOOTREST 1

3D7-27411-00-00

$76.99

11

FOOTREST 2

3D7-27421-00-00

$76.99

12

PIN, CLEVIS

90240-10004-00

$13.99

13

PIN, COTTER

91490-25020-00

$3.19

14

SPRING, TORSION

90508-28016-00

$5.60

15

SPRING, TORSION

90508-28020-00

$7.49

16

WASHER, PLAIN(735)

90201-10119-00

Unavailable

17

STAND, SIDE

3D7-27311-03-00

Unavailable

18

SPRING, TENSION(3XP)

90506-35473-00

Unavailable

19

LINK, SIDE STAND

3D7-27315-00-00

Unavailable

20

BOLT(3BC)

90111-10007-00

Unavailable

21

COLLAR(3XP)

90387-1003G-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

23

NUT, U

95617-10100-00

Unavailable

24

BRACKET, SIDE STAND

3D7-27321-00-00

Unavailable

25

BOLT, FLANGE

90105-10245-00

Unavailable

26

BRACKET 1

3D7-27432-11-00

Unavailable

27

FOOTREST, REAR 1

3XP-27431-02-00

Unavailable

28

BOLT(3XP)

90109-085F5-00

Unavailable

29

SPRING, COMPRESSION (5L1)

90504-18031-00

Unavailable

30

WASHER(6TA)

92907-10600-00

Unavailable

31

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

32

BOLT, BUTTON HEAD

92012-08030-00

Unavailable

33

BRACKET 2

3D7-27442-01-00

Unavailable

34

FOOTREST, REAR 2

3XP-27441-02-00

Unavailable

35

BOLT(3XP)

90109-085F5-00

Unavailable

36

SPRING, COMPRESSION (5L1)

90504-18031-00

Unavailable

37

WASHER(6TA)

92907-10600-00

Unavailable

38

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

39

BOLT, BUTTON HEAD

92012-08020-00

Unavailable
