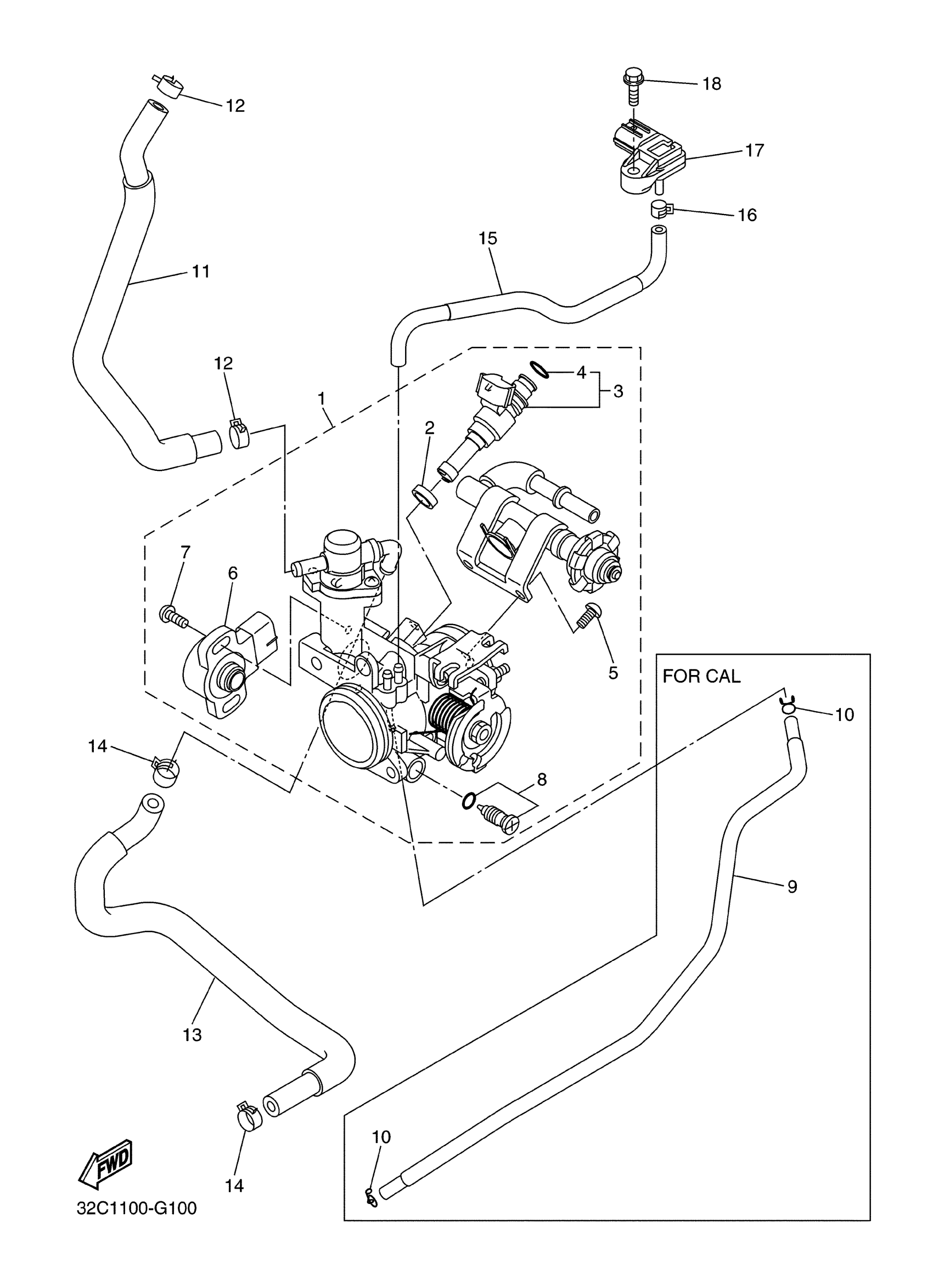

Yamaha WR25RXL (WR250R) 32C1 2008 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

32C-13750-00-00

Unavailable

1

THROTTLE BODY ASSY

3D7-13750-10-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR ASSY

4C8-13761-00-00

$171.99

4

O-RING

5PS-14147-00-00

$13.49

5

SCREW, PAN

98517-06012-00

$3.78

6

THROTTLE SENSOR ASSY

3P6-85885-01-00

Unavailable

7

SCREW

8CC-14216-10-00

$7.99

8

AIR SCREW SET

1S4-14104-00-00

Unavailable

9

PIPE 12

32C-24323-00-00

Unavailable

10

CLIP

90467-090A2-00

$4.41

11

HOSE 1

3D7-1243A-00-00

Unavailable

12

CLIP

90467-110A2-00

Unavailable

13

HOSE 2

3D7-1243E-00-00

Unavailable

14

CLIP

90467-110A2-00

Unavailable

15

HOSE, VACUUM SENSING 1

3D7-13542-00-00

Unavailable

16

CLIP

90467-070A0-00

Unavailable

17

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

18

BOLT, FLANGE

95022-06020-00

Unavailable
