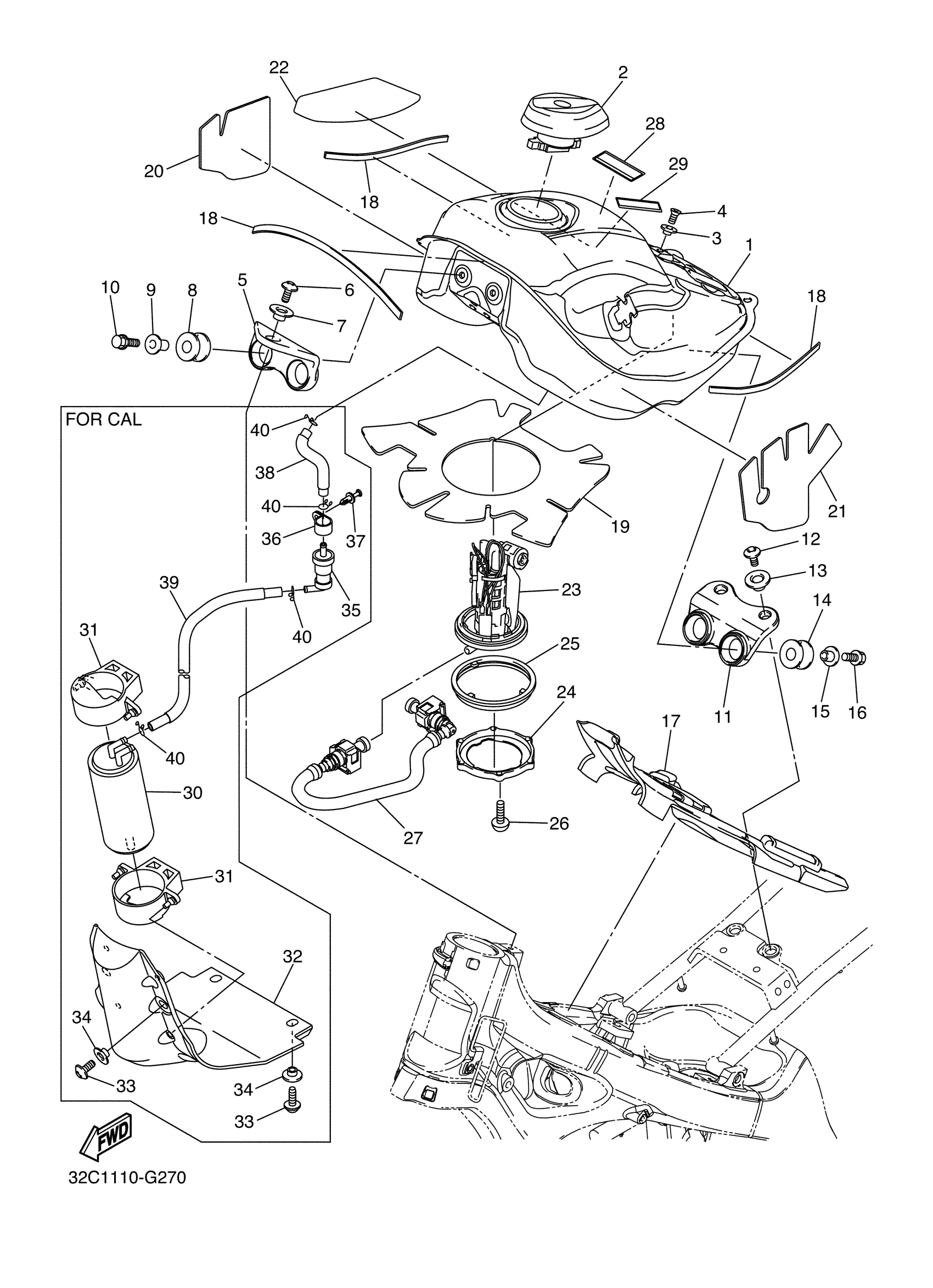

Yamaha WR25RXL (WR250R) 32C1 2008 FUEL TANK Diagram
#
Description
Price
2
CAP ASSY
3D7-24602-30-00
Unavailable
5
BRACKET, FUEL TANK 1
3D7-24191-00-00
Unavailable
6
SCREW(4DN)
90149-06302-00
Unavailable
11
BRACKET, FUEL TANK 2
3D7-24192-00-00
Unavailable
17
DAMPER, LOCATING 1
3D7-24181-00-00
Unavailable
18
MOLD, FUEL TANK
3D7-24188-00-00
Unavailable
19
DAMPER, PLATE 4
3D7-2414N-00-00
Unavailable
20
DAMPER, PLATE 5
3D7-2414P-00-00
Unavailable
21
DAMPER, PLATE 6
3D7-2414R-01-00
Unavailable
22
SEAL
3D7-21268-00-00
Unavailable
23
FUEL PUMP COMP.
3D7-13907-14-00
Unavailable
24
BRACKET, FUEL PUMP
3D7-24491-00-00
Unavailable
25
O-RING
1S4-24486-00-00
Unavailable
26
BOLT, BUTTON HEAD
92012-05016-00
Unavailable
27
PIPE, FUEL 1
3D7-13971-01-00
Unavailable
28
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
29
LABEL, CAUTION
5PW-2415E-12-00
Unavailable
30
CANISTER ASSY
32C-24170-00-00
Unavailable
31
DAMPER, LOCATING 2
32C-24182-00-00
Unavailable
32
COVER, CANISTER
32C-2419E-00-00
Unavailable
34
COLLAR (3L1)
90387-07717-00
Unavailable
35
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
36
CLAMP
90464-15014-00
Unavailable
37
RIVET
90269-05001-00
Unavailable
38
PIPE 10
32C-24321-00-00
Unavailable
39
PIPE 11
32C-24322-00-00
Unavailable
40
CLIP
90467-090A2-00
Unavailable
