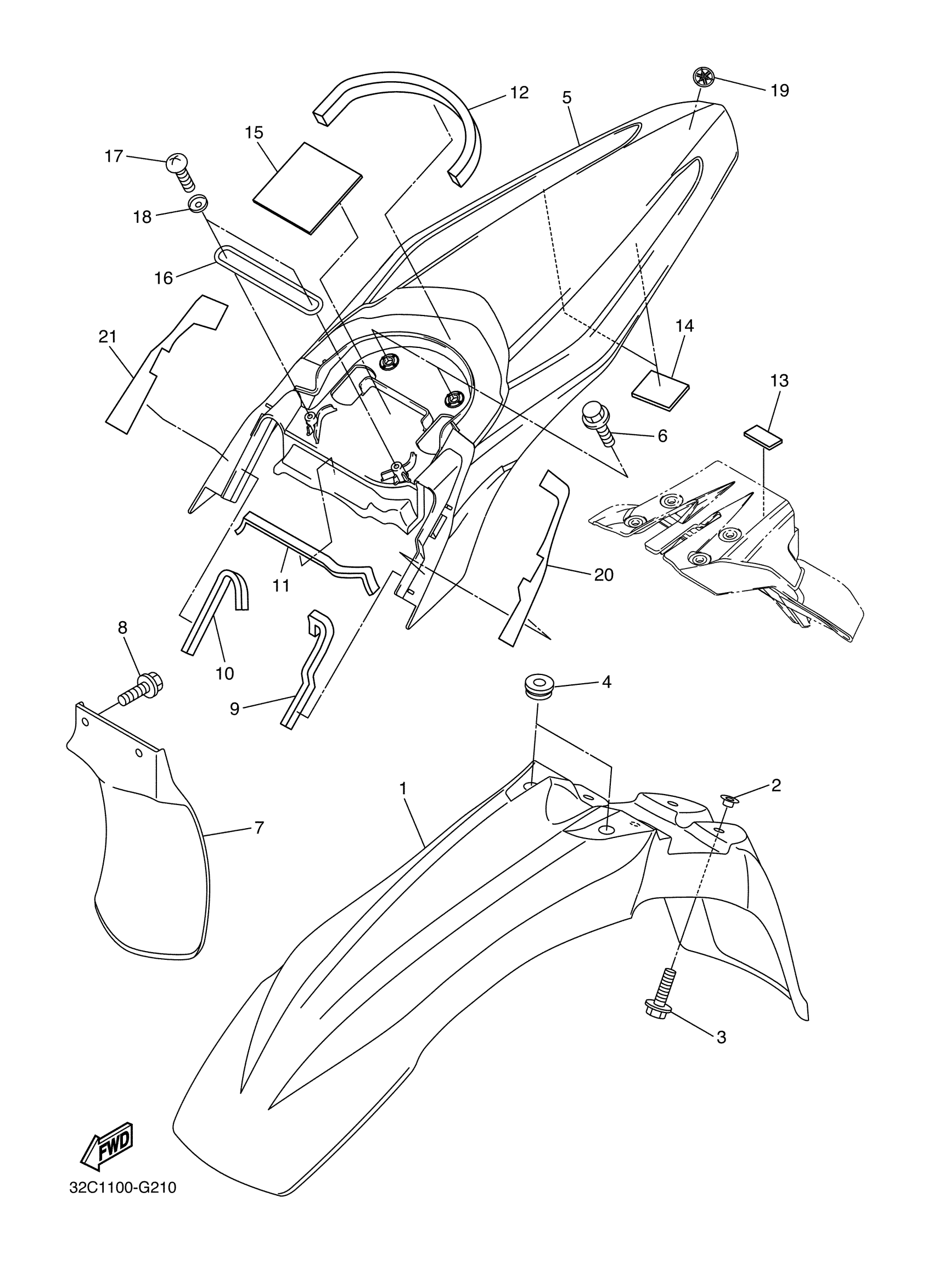

Yamaha WR25RXL (WR250R) 32C1 2008 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3D7-21511-00-00

$40.99

2

COLLAR (8G8)

90387-06681-00

$9.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

GROMMET

90480-13014-00

$8.49

5

FENDER, REAR

3D7-21611-00-00

$48.99

6

BOLT, WITH WASHER(55K)

90119-06114-00

$8.49

7

GUARD, FLAP

3D7-21642-00-00

$28.99

8

BOLT, WITH WASHER

90119-06137-00

$8.49

9

DAMPER 1

3D7-21638-00-00

$5.49

10

DAMPER 1

3D7-21638-10-00

$5.49

11

DAMPER 2

3D7-21639-00-00

$5.49

12

DAMPER 2

3D7-21639-10-00

$4.37

13

DAMPER

3D7-21649-00-00

$7.99

14

DAMPER

3D7-21649-10-00

$5.49

15

INSULATOR, SIDE COVER 2

3D7-2174T-00-00

$6.99

16

O-RING

93210-63003-00

Unavailable

17

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

18

WASHER

90209-05008-00

Unavailable

19

EMBLEM

3C5-2411B-00-00

Unavailable

20

SEAL, 2

3D7-216A2-00-00

Unavailable

21

SEAL, 3

3D7-216A3-00-00

Unavailable
