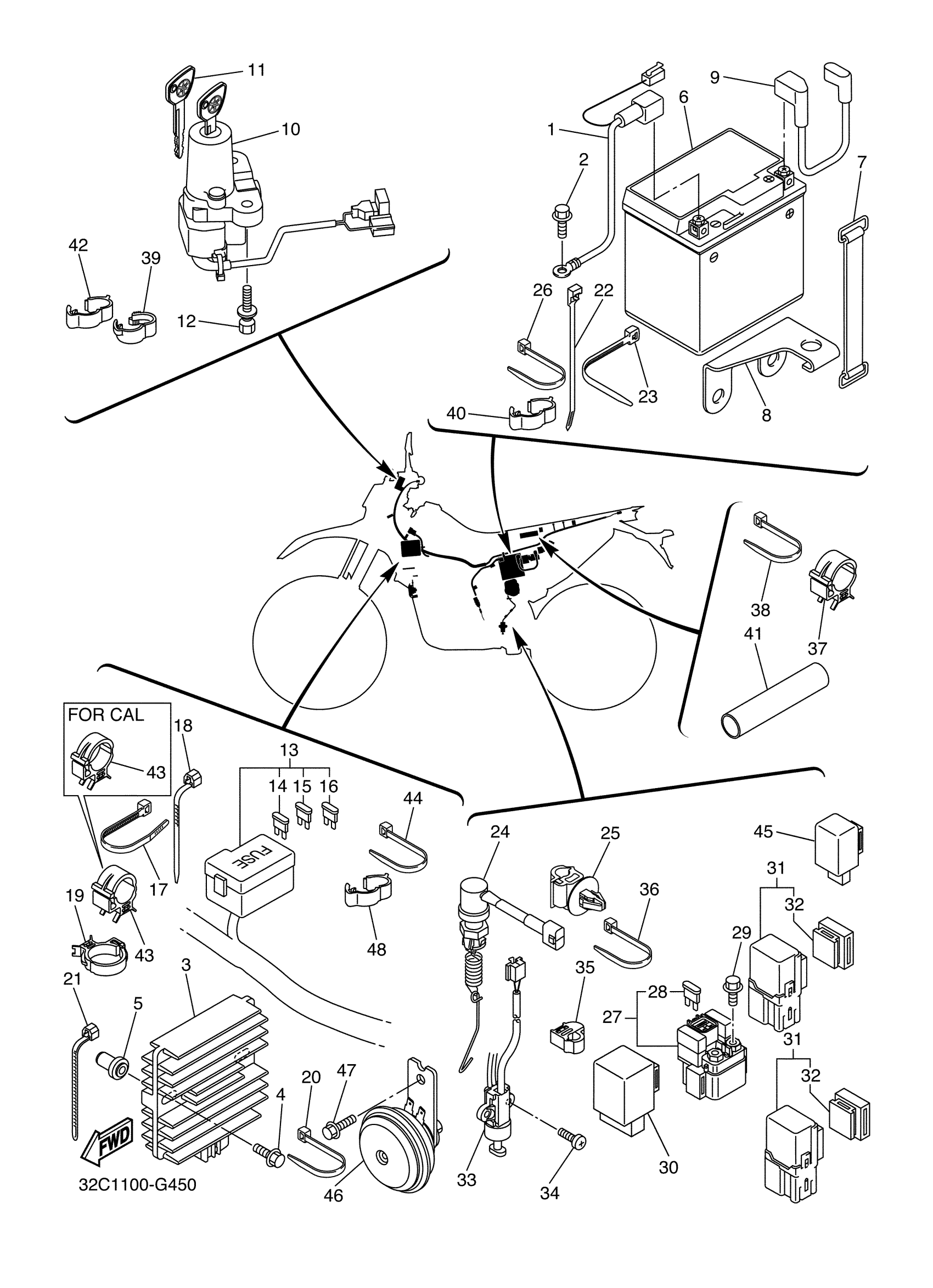

Yamaha WR25RXL (WR250R) 32C1 2008 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

3D7-82116-00-00

Unavailable

2

BOLT, FLANGE

95022-06014-00

$3.14

3

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

$179.99

4

BOLT, FLANGE

95022-06030-00

$3.72

5

NUT

90179-06020-00

$7.49

6

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

Unavailable

7

BAND, BATTERY

22F-82131-00-00

$29.99

8

HOOK, BATTERY BAND

3D7-21365-00-00

Unavailable

9

WIRE, PLUS LEAD

3D7-82115-00-00

$27.99

10

MAIN SWITCH STEERING LOCK

32D-82501-01-00

$212.99

11

KEY, BLANK (5SJ1)

90890-56028-00

$14.99

12

BOLT

90109-08196-00

$8.49

13

WIRE HARNESS ASSY

32C-82590-00-00

Unavailable

14

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

15

FUSE (15A)

67F-82151-50-00

Unavailable

16

. FUSE (10A)

67F-82151-40-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

CLAMP(4FM)

90464-15195-00

Unavailable

19

CLAMP(4GY)

90464-20191-00

Unavailable

19

CLAMP(4KM)

90464-25217-00

Unavailable

20

CLAMP

90464-16061-00

Unavailable

21

CLAMP

90464-25004-00

Unavailable

22

CLAMP

90464-99006-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

STOP SWITCH ASSY

3D7-82530-01-00

Unavailable

25

CLAMP

90464-05001-00

Unavailable

26

CLAMP

90464-16061-00

Unavailable

27

STARTER RELAY ASSY (RC19-076A)

3D7-81940-00-00

Unavailable

28

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

29

BOLT, FLANGE

95022-06008-00

Unavailable

30

RELAY ASSY

5VK-81950-43-00

Unavailable

31

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

32

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

33

SWITCH, SIDE STAND

5KN-82566-41-00

Unavailable

34

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

35

CLAMP(4GY)

90464-05188-00

Unavailable

36

CLAMP

90464-16061-00

Unavailable

37

CLAMP(4HM)

90464-15192-00

Unavailable

38

CLAMP

90464-16061-00

Unavailable

39

CLAMP

90464-16001-00

Unavailable

40

CLAMP

90464-16003-00

Unavailable

41

HOSE

90446-27001-00

Unavailable

42

CLAMP

90464-16003-00

Unavailable

43

CLAMP(4GY)

90464-10190-00

Unavailable

43

CLAMP(4GY)

90464-20191-00

Unavailable

44

CLAMP

90464-16061-00

Unavailable

45

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

46

HORN

5XT-83371-00-00

Unavailable

47

BOLT, FLANGE

95817-06012-00

Unavailable

48

CLAMP

90464-16003-00

Unavailable
