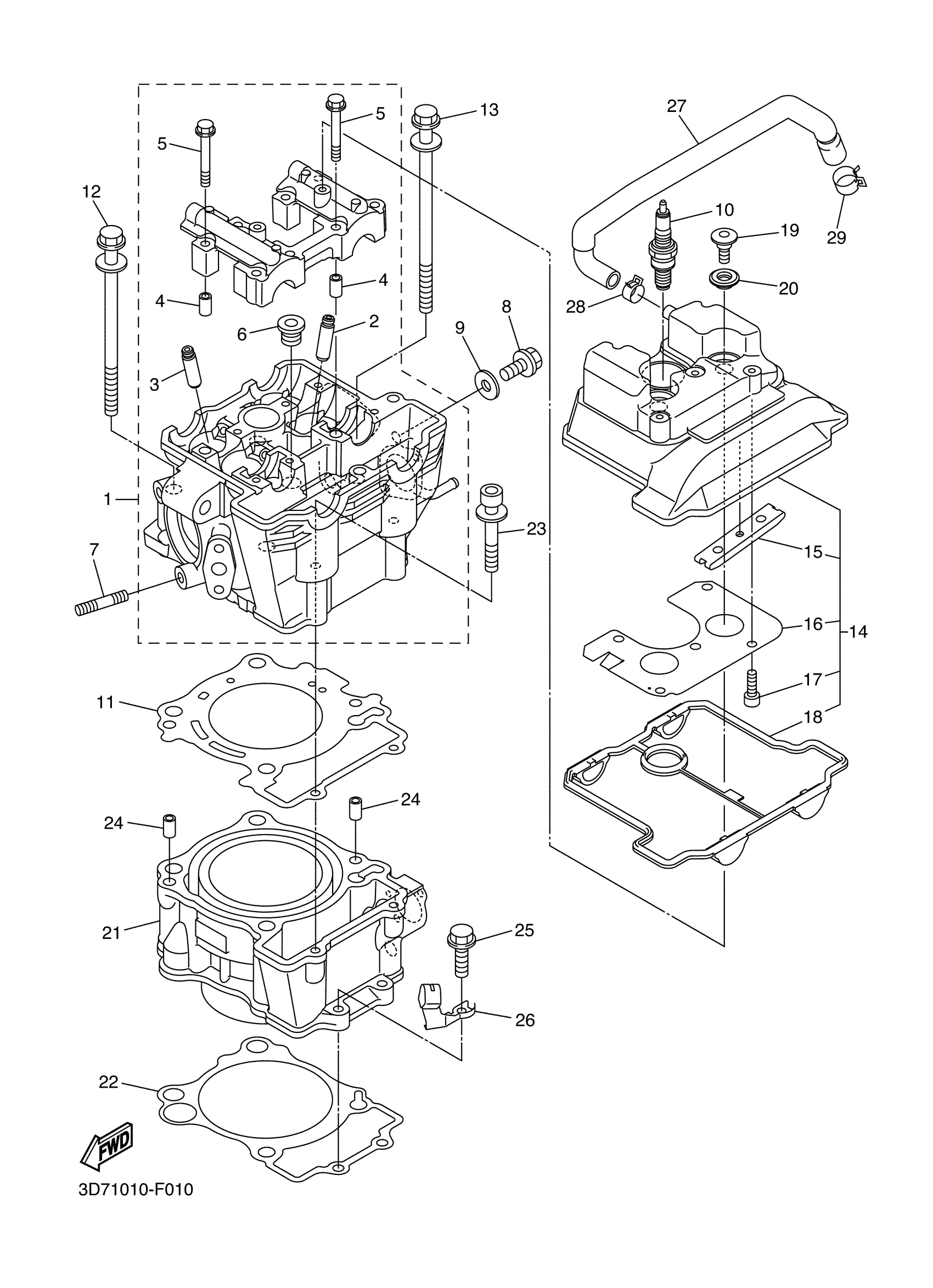

Yamaha WR25RXL (WR250R) 32C1 2008 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3D7-11101-09-00

Unavailable

2

GUIDE, VALVE 1

3D7-11133-10-00

$57.99

3

GUIDE, VALVE 1

2C0-11133-11-00

$61.99

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

7

BOLT, STUD

95612-08620-00

$7.49

8

BOLT, FLANGE

95022-08012-00

$12.49

9

GASKET

90430-08119-00

$6.62

10

CR9EK NGK SPLUG 10PK

CR9-EK000-00-00

Unavailable

11

GASKET, CYLINDER HEAD 1

3D7-11181-00-00

$50.99

12

BOLT, WITH WASHER

90119-10025-00

Unavailable

13

BOLT, WITH WASHER

90119-10026-00

Unavailable

14

COVER, CYLINDER HEAD 1

3D7-11190-00-00

Unavailable

15

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

16

PLATE, BREATHER

3D7-11165-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

GASKET, HEAD COVER 1

3D7-11193-00-00

Unavailable

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

21

CYLINDER 1

3D7-11311-02-00

Unavailable

22

GASKET, CYLINDER

3D7-11351-02-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06298-00

Unavailable

24

PIN, DOWEL(3XW)

91808-16023-00

$8.49

25

BOLT, FLANGE

95022-06025-00

Unavailable

26

CLAMP 1

3D7-12491-00-00

Unavailable

27

PIPE, BREATHER 1

3D7-11166-00-00

Unavailable

28

CLIP

90467-120A5-00

Unavailable

29

CLIP

90467-15141-00

Unavailable
