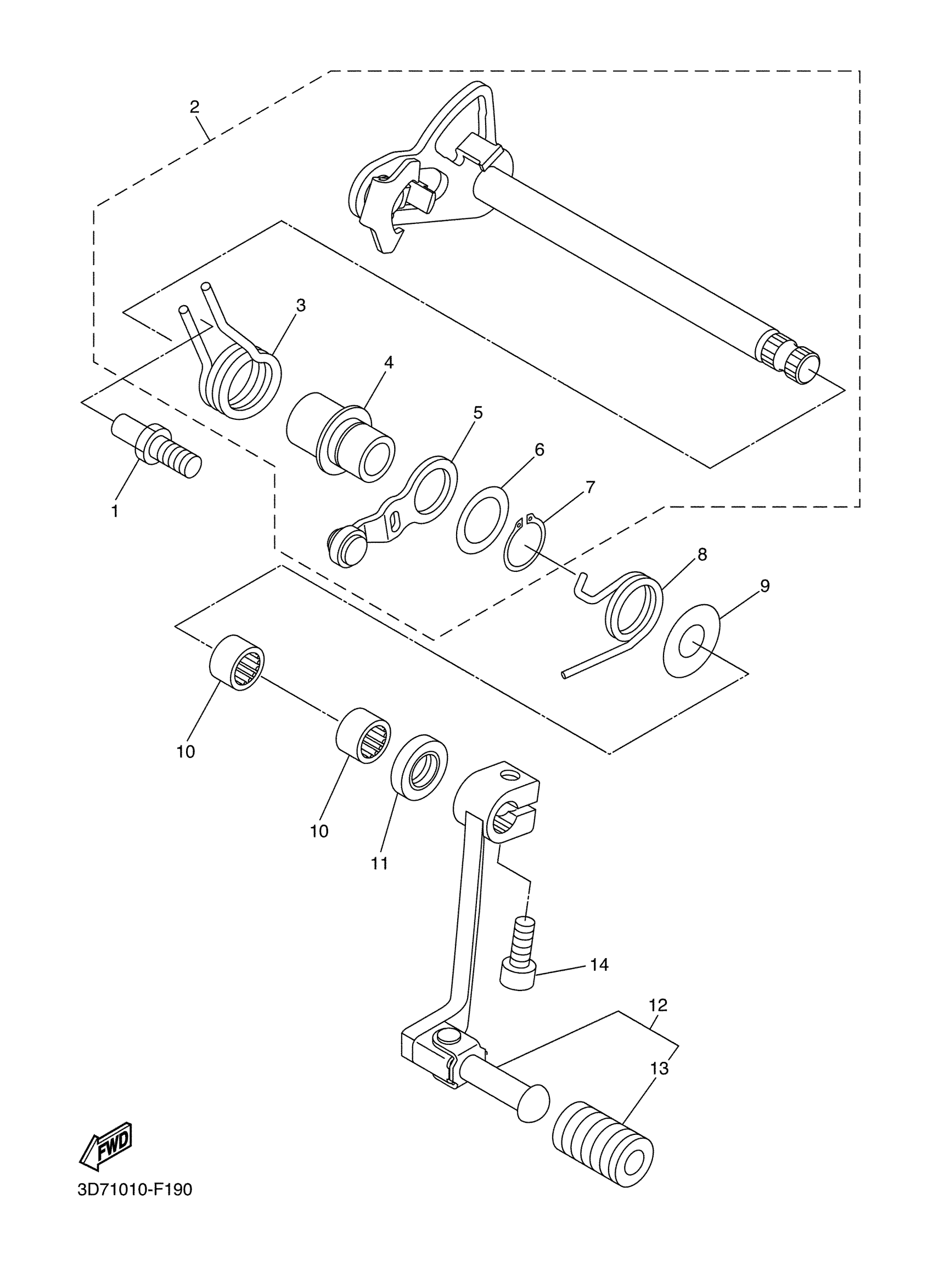

Yamaha WR25RLC (WR250R CA) 2CFP 2020 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

3D7-18101-01-00

Unavailable

3

SPRING, TORSION

90508-32007-00

$3.61

4

SPACER

3D7-18175-00-00

Unavailable

5

STOPPER LEVER ASSY

3D7-18140-00-00

$31.99

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

CIRCLIP(1EY)

99009-17400-00

$4.73

8

SPRING, TORSION

90508-26051-00

$3.28

9

WASHER, PLATE(1RE)

90201-125L6-00

$9.49

10

BEARING

93317-11295-00

$46.99

11

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

12

SHIFT PEDAL ASSY

3D7-18110-00-00

$79.99

13

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

14

BOLT,SOCKET

91314-08020-00

$8.49
