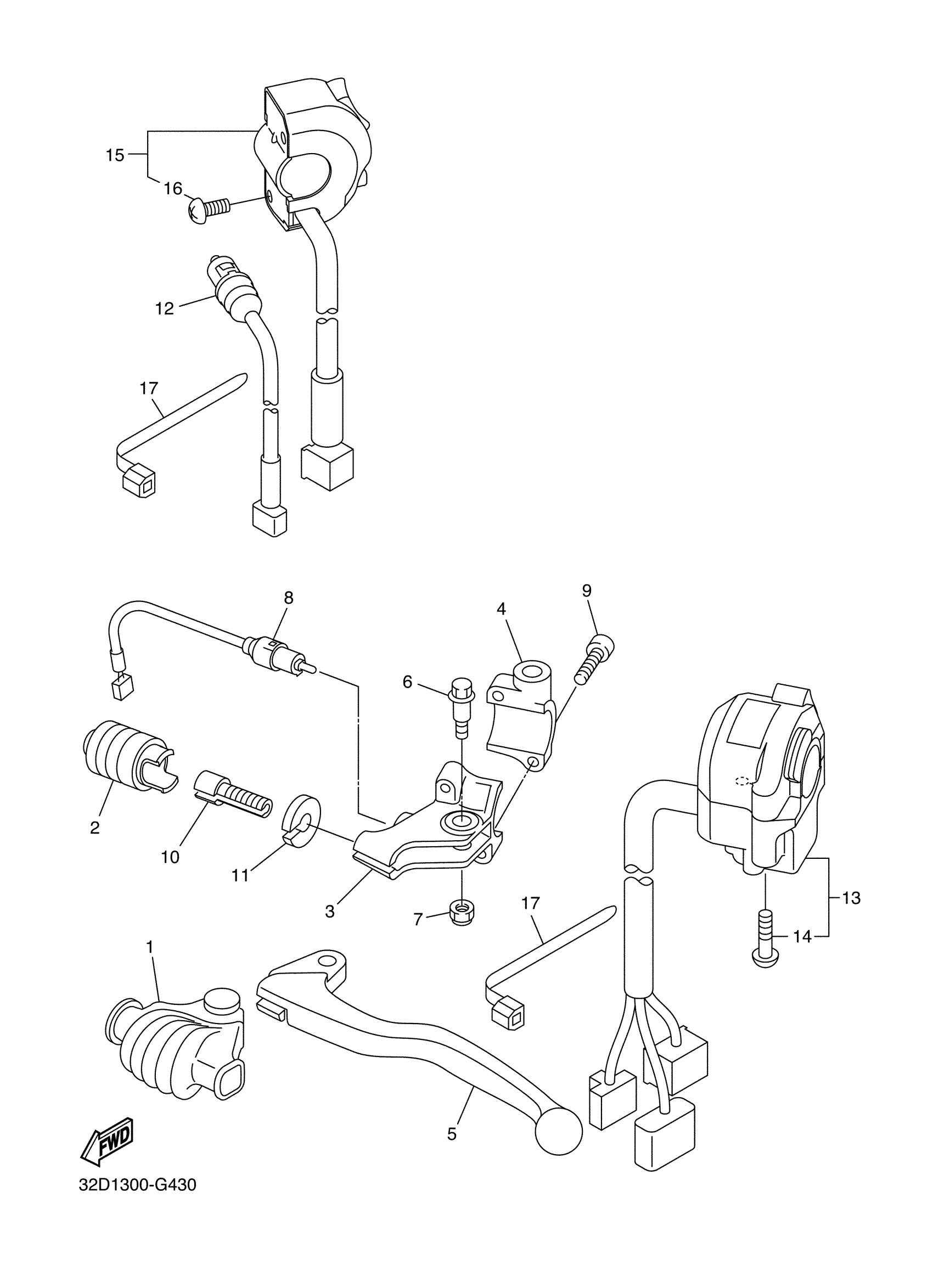

Yamaha WR25RLC (WR250R CA) 2CFP 2020 HANDLE SWITCH LEVER Diagram

Description

Price

COVER, LEVER

1E6-26372-00-00

$23.99

BOOT, WIRE

1E6-26342-00-00

$30.99

HOLDER, LEVER 1

5XT-82911-00-00

$33.99

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

LEVER 1

23X-83912-02-00

$27.99

BOLT (2YK1)

90109-06799-00

$4.99

NUT, SELF-LOCKING

95617-06100-00

$8.49

SWITCH

3C5-82917-00-00

$41.99

BOLT, SOCKET

91317-05020-00

$3.28

BOLT

90123-08002-00

$10.49

NUT

90179-08030-00

$5.49

FRONT STOP SWITCH ASSY

3D7-83980-00-00

$55.99

SWITCH, HANDLE 3

32D-83973-00-00

$222.99

SCREW, PAN HEAD

98517-05030-00

$10.49

SWITCH, HANDLE 2

3D7-83975-00-00

$89.99

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

CLAMP

90464-25004-00

Unavailable
