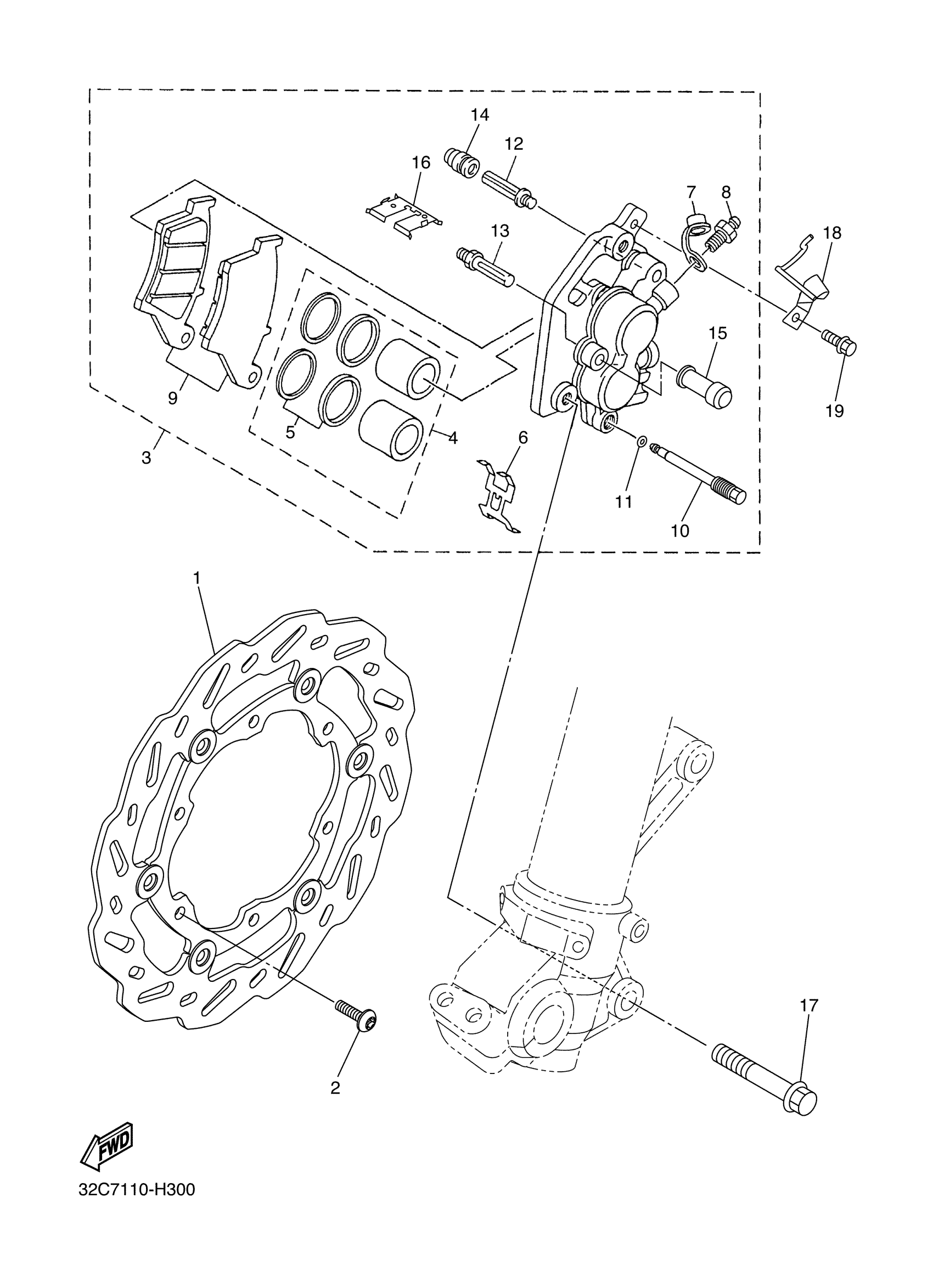

Yamaha WR25RLC (WR250R CA) 2CFP 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3D7-2581T-02-00

$179.30

2

SCREW(1KT)

90149-06228-00

$5.86

3

CALIPER ASSY (LEFT)

32D-2580T-01-00

Unavailable

4

PISTON ASSY, CALIPER

5UN-W0057-00-00

$60.58

5

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

6

SUPPORT, PAD

5DH-25919-00-00

$16.55

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

BRAKE PAD KIT

32D-W0045-01-00

Unavailable

10

WASHER, PAD PIN

3D7-25933-00-00

Unavailable

11

STOPPER

3P6-25925-00-00

Unavailable

12

BOLT

3SP-25926-51-00

$10.74

13

BOLT

3SP-25914-51-00

$3.67

14

BOOT, CALIPER

3JD-25917-00-00

$7.03

15

BOOT 2

1UY-25937-51-00

$11.48

16

RETAINER, CALIPER

5DH-25849-00-00

Unavailable

17

BOLT, FLANGE

90105-08158-00

Unavailable

18

HOLDER, BRAKE HOSE 1

3D7-25875-00-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable
