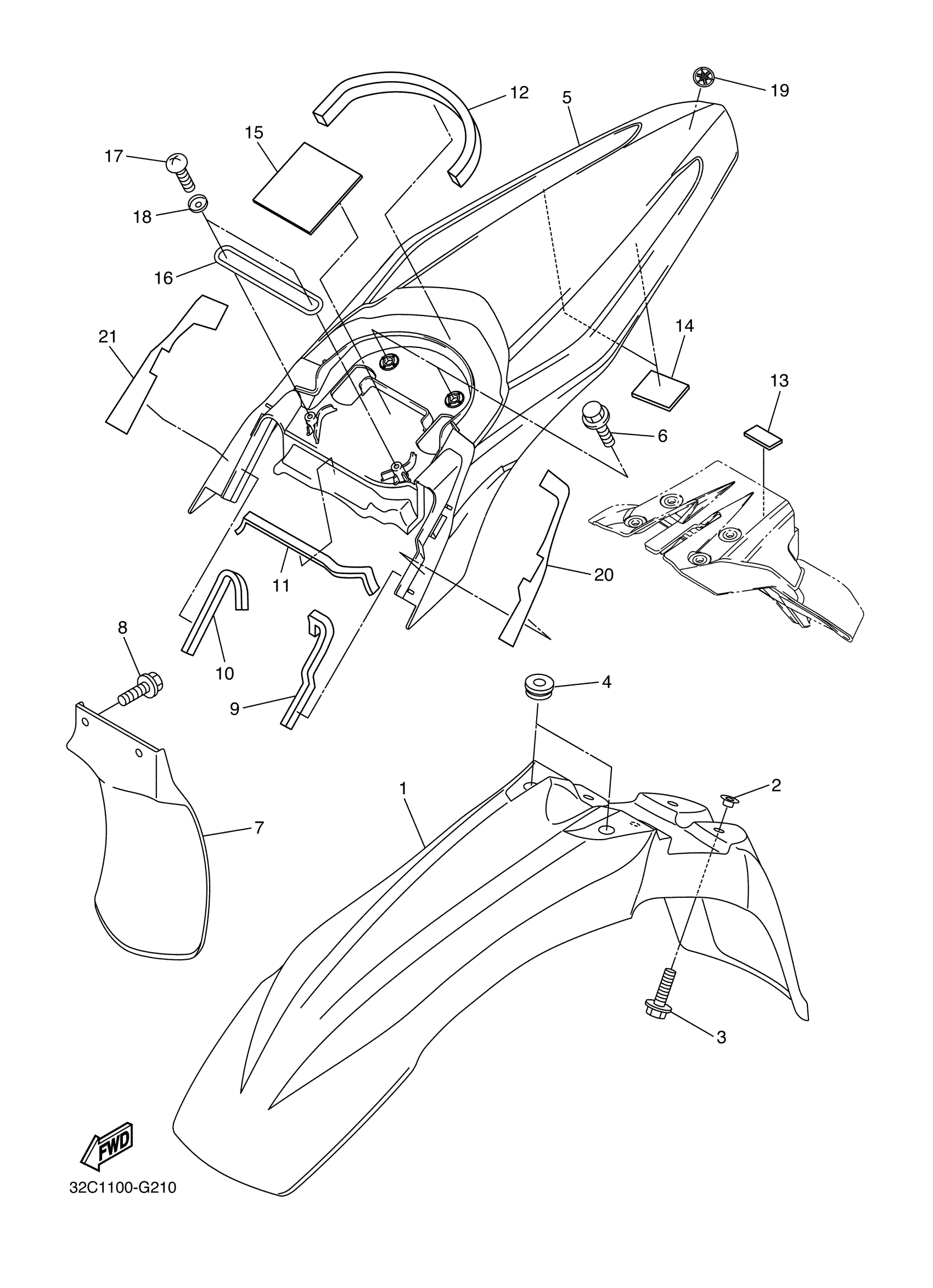

Yamaha WR25RLC (WR250R CA) 2CFP 2020 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3D7-21511-00-00

$33.34

2

COLLAR (8G8)

90387-06681-00

$6.17

3

BOLT, WITH WASHER

90119-06147-00

$0.67

4

GROMMET

90480-13014-00

$6.39

5

FENDER, REAR

3D7-21611-00-00

$38.52

6

BOLT, WITH WASHER(55K)

90119-06114-00

$6.23

7

GUARD, FLAP

3D7-21642-00-00

$22.84

8

BOLT, WITH WASHER

90119-06137-00

$5.81

9

DAMPER 1

3D7-21638-00-00

$4.44

10

DAMPER 1

3D7-21638-10-00

$4.44

11

DAMPER 2

3D7-21639-00-00

$4.77

12

DAMPER 2

3D7-21639-10-00

$3.34

13

DAMPER

3D7-21649-00-00

$6.55

14

DAMPER

3D7-21649-10-00

$4.44

15

INSULATOR, SIDE COVER 2

3D7-2174T-00-00

$5.23

16

O-RING

93210-63003-00

Unavailable

17

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

18

WASHER

90209-05008-00

Unavailable

19

EMBLEM

3C5-2411B-00-00

Unavailable

20

SEAL, 2

3D7-216A2-00-00

Unavailable

21

SEAL, 3

3D7-216A3-00-00

Unavailable
