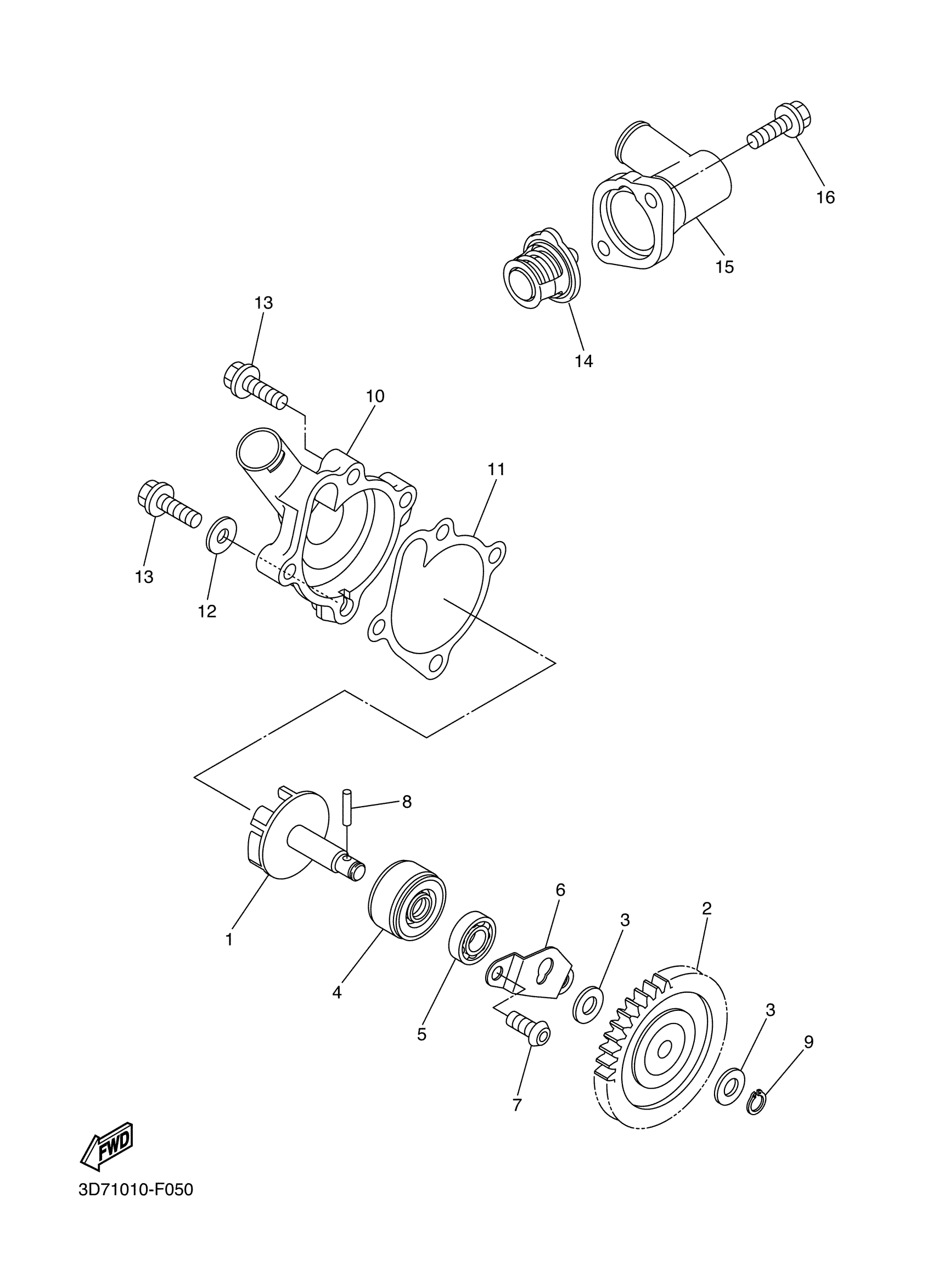

Yamaha WR25RJC (WR250R CA) 2CFH 2018 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

3D7-12450-00-00

Unavailable

2

GEAR

3D7-12453-00-00

Unavailable

3

WASHER, PLATE

90201-08073-00

$4.29

4

OIL SEAL

93103-10011-00

$46.99

5

BEARING(51N)

93306-90001-00

$63.99

6

PLATE

3D7-12681-00-00

Unavailable

7

SCREW

90149-06084-00

$8.49

8

PIN,DOWEL

93603-17070-00

$4.14

9

CIRCLIP

99009-08400-00

$1.60

10

COVER, HOUSING

3D7-12422-00-00

$91.99

11

GASKET, HOUSING COVER 2

3D7-12428-00-00

$6.99

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT, FLANGE

95022-06025-00

$3.62

14

THERMOSTAT

4D9-12411-01-00

$55.99

15

COVER, THERMOSTAT

3D7-12413-00-00

Unavailable

16

BOLT, FLANGE

95022-06020-00

Unavailable
