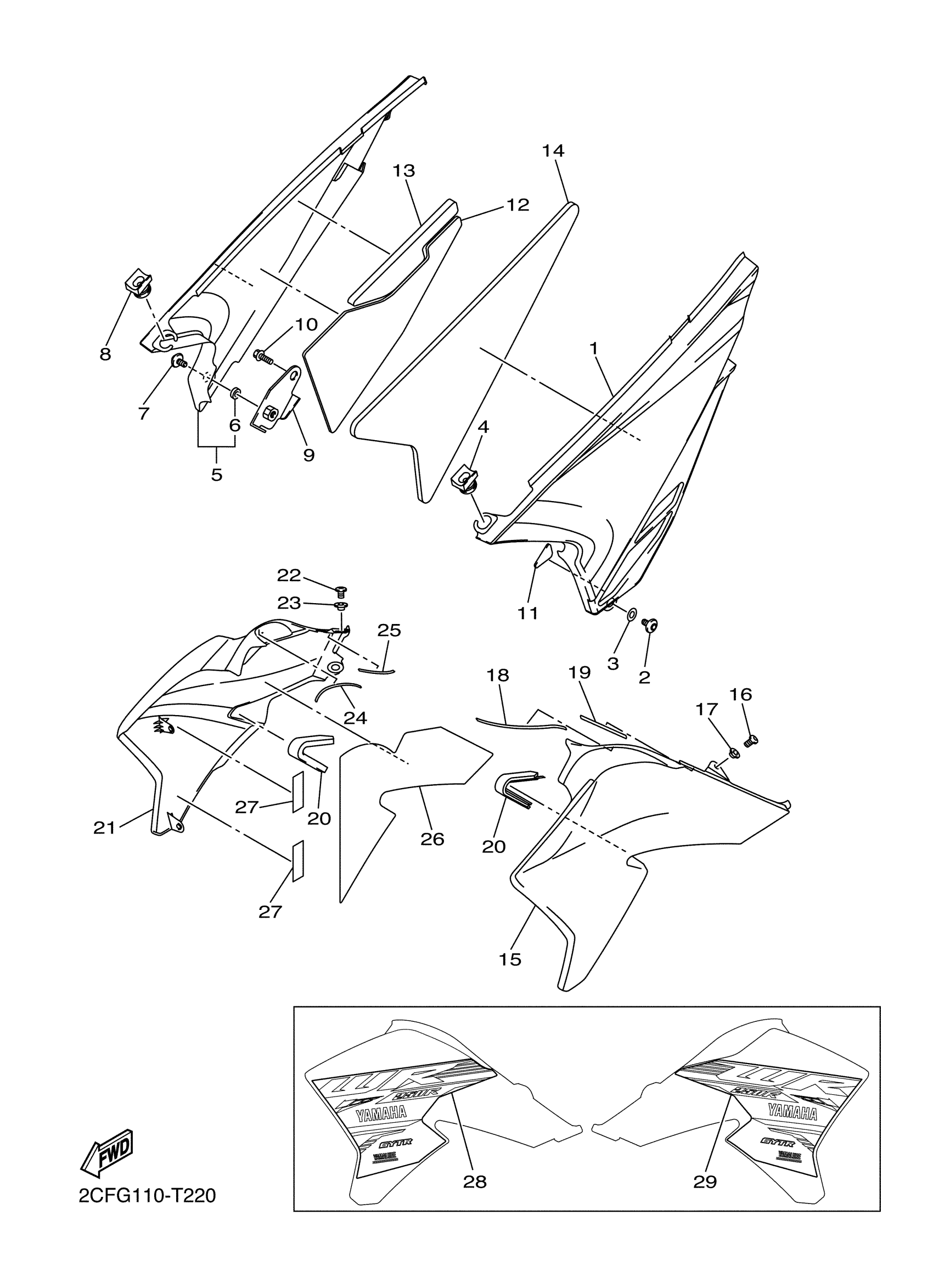

Yamaha WR25RJC (WR250R CA) 2CFH 2018 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3D7-21711-00-00

$24.99

2

SCREW(3XV)

90149-06298-00

$5.60

3

WASHER, PLATE

90201-06020-00

$9.49

4

GROMMET

3D7-21719-00-00

$5.49

5

COVER, SIDE 2

3D7-21721-00-00

Unavailable

6

COLLAR

90387-07022-00

$5.60

7

SCREW(3XV)

90149-06298-00

$5.60

8

GROMMET

3D7-21719-00-00

$5.49

9

STAY, SIDE COVER 1

3D7-2172E-00-00

$7.99

10

BOLT, FLANGE

95022-06010-00

$5.60

11

DAMPER

3D7-2174X-00-00

$5.49

12

DAMPER

32C-21746-00-00

$28.99

13

DAMPER

32C-21747-00-00

$6.99

14

DAMPER

32C-2174Y-00-00

$33.99

15

SCOOP, AIR 1

3D7-2137W-00-00

$70.99

16

SCREW, BIND(1JK)

98980-06010-00

Unavailable

17

C0LLAR

90387-062M9-00

Unavailable

18

DAMPER, PLATE 1

3D7-2414H-00-00

Unavailable

19

DAMPER, PLATE 2

3D7-2414J-00-00

Unavailable

20

SPACER 2

3D7-24175-00-00

Unavailable

21

SCOOP, AIR 2

3D7-2137X-00-00

Unavailable

22

SCREW, BIND(1JK)

98980-06010-00

Unavailable

23

C0LLAR

90387-062M9-00

Unavailable

24

DAMPER, PLATE 1

3D7-2414H-00-00

Unavailable

25

DAMPER, PLATE 2

3D7-2414J-00-00

Unavailable

26

DAMPER, PLATE 3

3D7-2414K-00-00

Unavailable

27

TAPE 1

3D7-2173T-00-00

Unavailable

28

GRAPHIC 1

2CF-2137N-30-00

Unavailable

29

GRAPHIC 2

2CF-2137P-30-00

Unavailable
