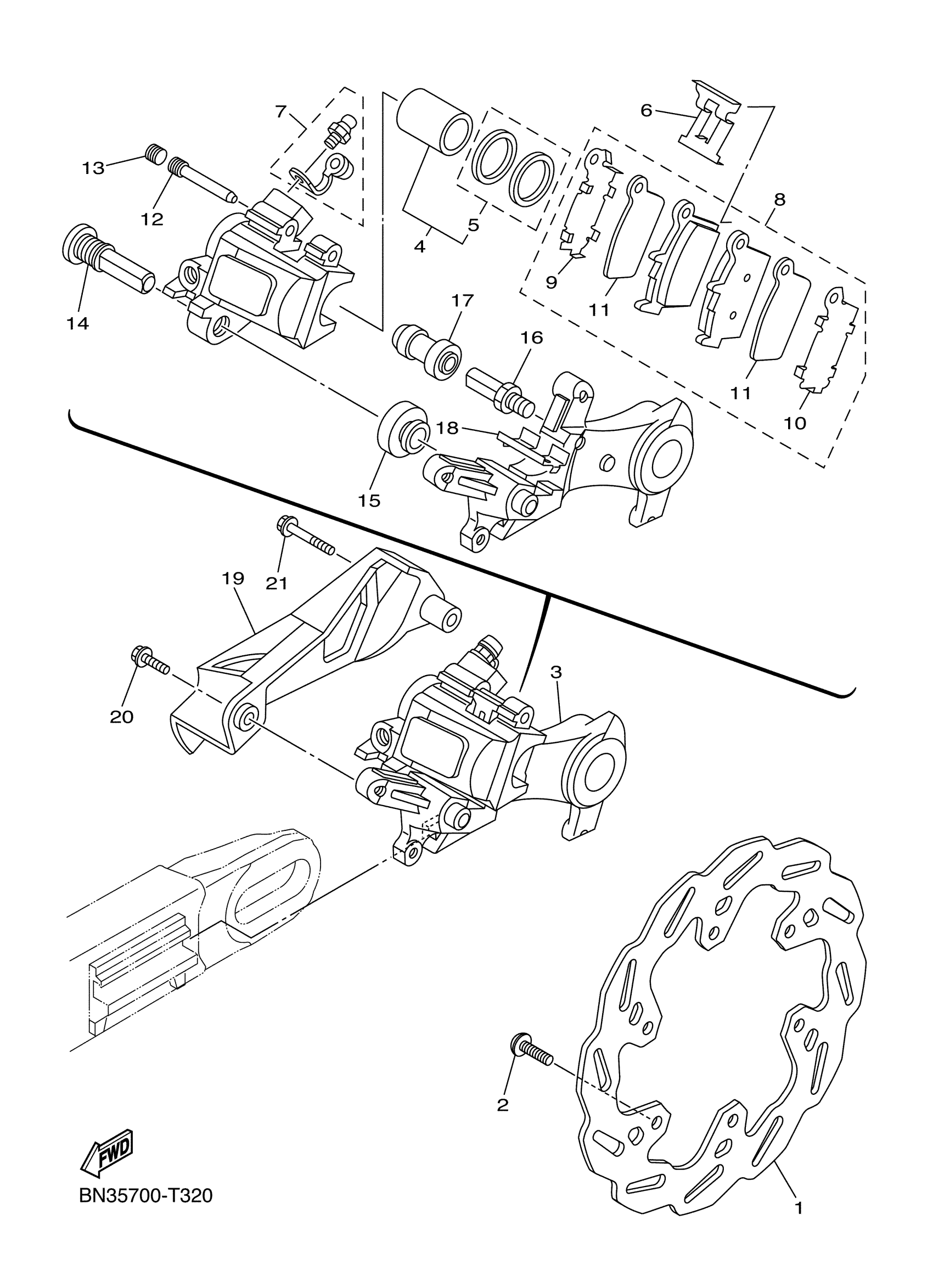

Yamaha WR25RJC (WR250R CA) 2CFH 2018 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

3D7-2582W-02-00

$109.99

2

SCREW(1KT)

90149-06228-00

$9.49

3

CALIPER ASSY, REAR 2

3D7-2580W-00-00

Unavailable

4

PISTON ASSY, CALIPER

5UN-W0057-50-00

$57.99

5

CALIPER SEAL KIT

5UN-W0047-50-00

$16.49

6

SUPPORT, PAD

5DH-25919-50-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT 2

1C3-W0046-B0-00

$44.99

9

.. SHIM, CALIPER

5UN-25828-60-00

Unavailable

10

SHIM, CALIPER

5UN-25827-60-00

$15.49

11

INSULATOR, HEAT

5UN-22898-60-00

$19.99

12

PIN, PAD

8CR-25924-00-00

$14.49

13

PLUG

5DH-25916-00-00

$9.99

14

PIN, SLIDE

5DH-25914-50-00

$22.99

15

BOOT, CALIPER

3JD-25917-00-00

$8.99

16

PIN, SLIDE

5UN-25914-00-00

Unavailable

17

BOOT 2

1UY-25937-51-00

Unavailable

18

RETAINER

5UN-25913-00-00

Unavailable

19

PROTECTOR

1C3-27491-50-00

Unavailable

20

BOLT, FLANGE

95022-06016-00

Unavailable

21

BOLT, FLANGE

95022-06030-00

Unavailable
