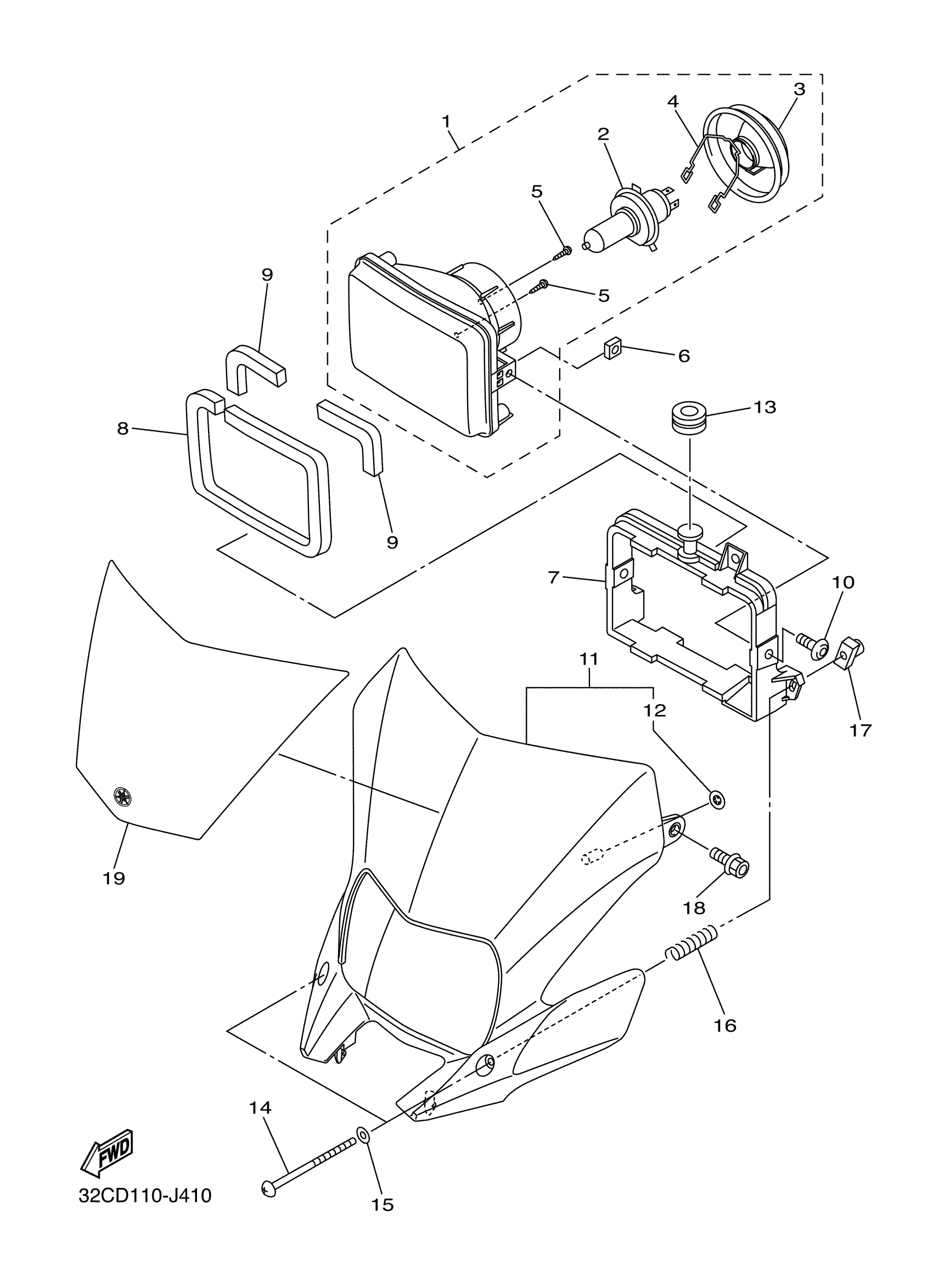

Yamaha WR25RJC (WR250R CA) 2CFH 2018 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

32C-84310-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

CAP

32D-84378-00-00

Unavailable

4

SPRING

32D-84335-00-00

Unavailable

5

SCREW

32D-84726-00-00

Unavailable

6

NUT

32D-84117-00-00

$27.99

7

STAY, HEADLIGHT 1

32D-84118-00-00

$71.99

8

DAMPER

32D-84527-00-00

$7.99

9

DAMPER

32D-84553-00-00

$6.99

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

BODY ASSY

32D-84330-00-00

Unavailable

12

NUT, SPRING(8AJ)

90183-05068-00

$10.49

13

GROMMET

90480-16008-00

$5.60

14

SCREW 214841316100

90157-04001-00

$8.49

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

SPRING, ADJUST

341-84332-60-00

Unavailable

17

NUT, ADJUST

198-84334-60-00

Unavailable

18

BOLT, FLANGE

90105-06064-00

Unavailable

19

GRAPHIC

32D-8411B-00-00

Unavailable
