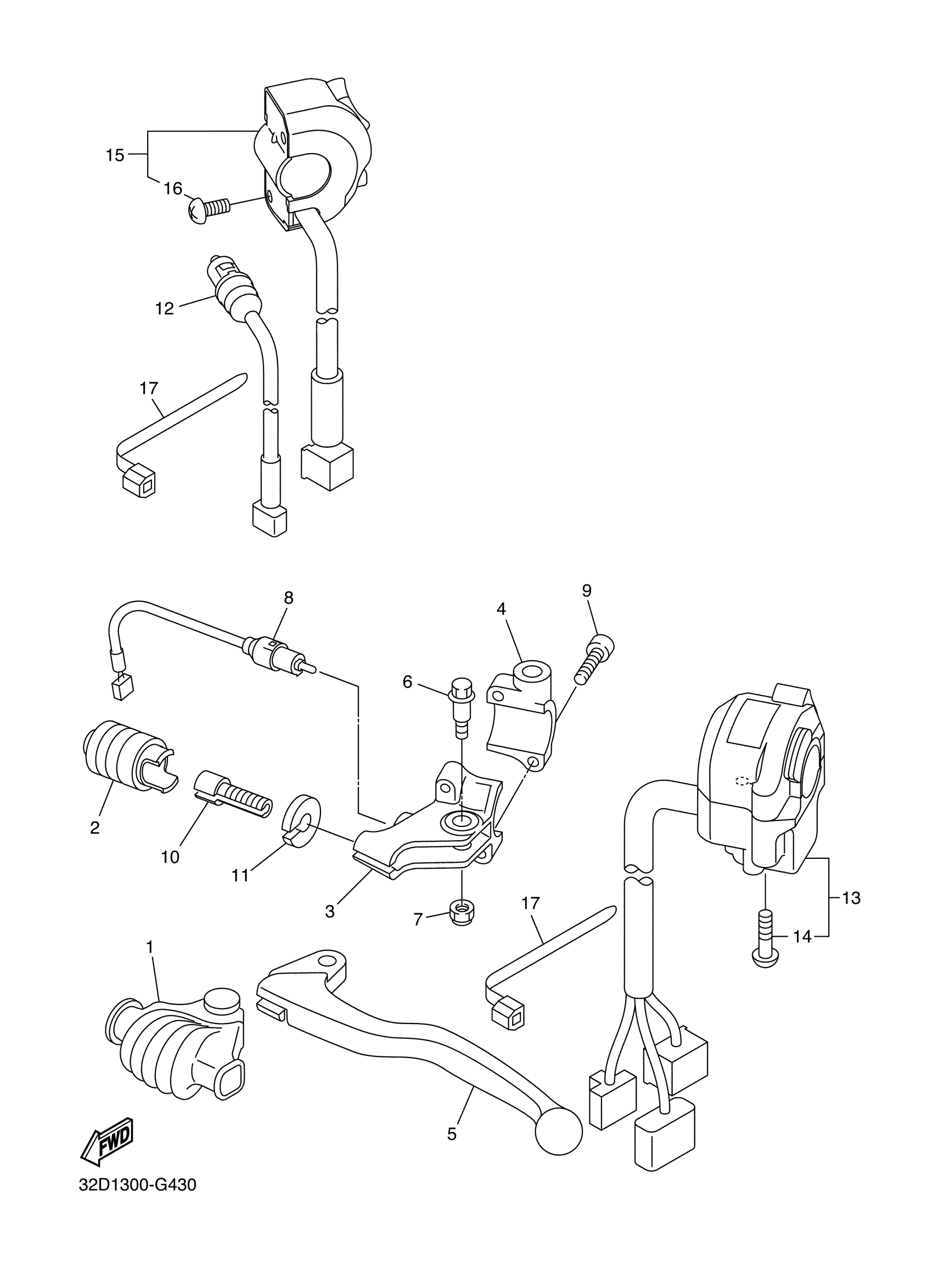

Yamaha WR25RJC (WR250R CA) 2CFH 2018 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

COVER, LEVER

1E6-26372-00-00

$18.59

2

BOOT, WIRE

1E6-26342-00-00

$25.03

3

HOLDER, LEVER 1

5XT-82911-00-00

$27.41

4

HOLDER, LEVER LOWER 1

33G-82913-01-00

$15.51

5

LEVER 1

23X-83912-02-00

$20.03

6

BOLT (2YK1)

90109-06799-00

$4.23

7

NUT, SELF-LOCKING

95617-06100-00

$2.17

8

SWITCH

3C5-82917-00-00

$32.94

9

BOLT, SOCKET

91317-05020-00

$2.31

10

BOLT

90123-08002-00

$8.57

11

NUT

90179-08030-00

$3.63

12

FRONT STOP SWITCH ASSY

3D7-83980-00-00

$50.12

13

SWITCH, HANDLE 3

32D-83973-00-00

$178.57

14

SCREW, PAN HEAD

98517-05030-00

$7.40

15

SWITCH, HANDLE 2

3D7-83975-00-00

$72.61

16

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

17

CLAMP

90464-25004-00

Unavailable
