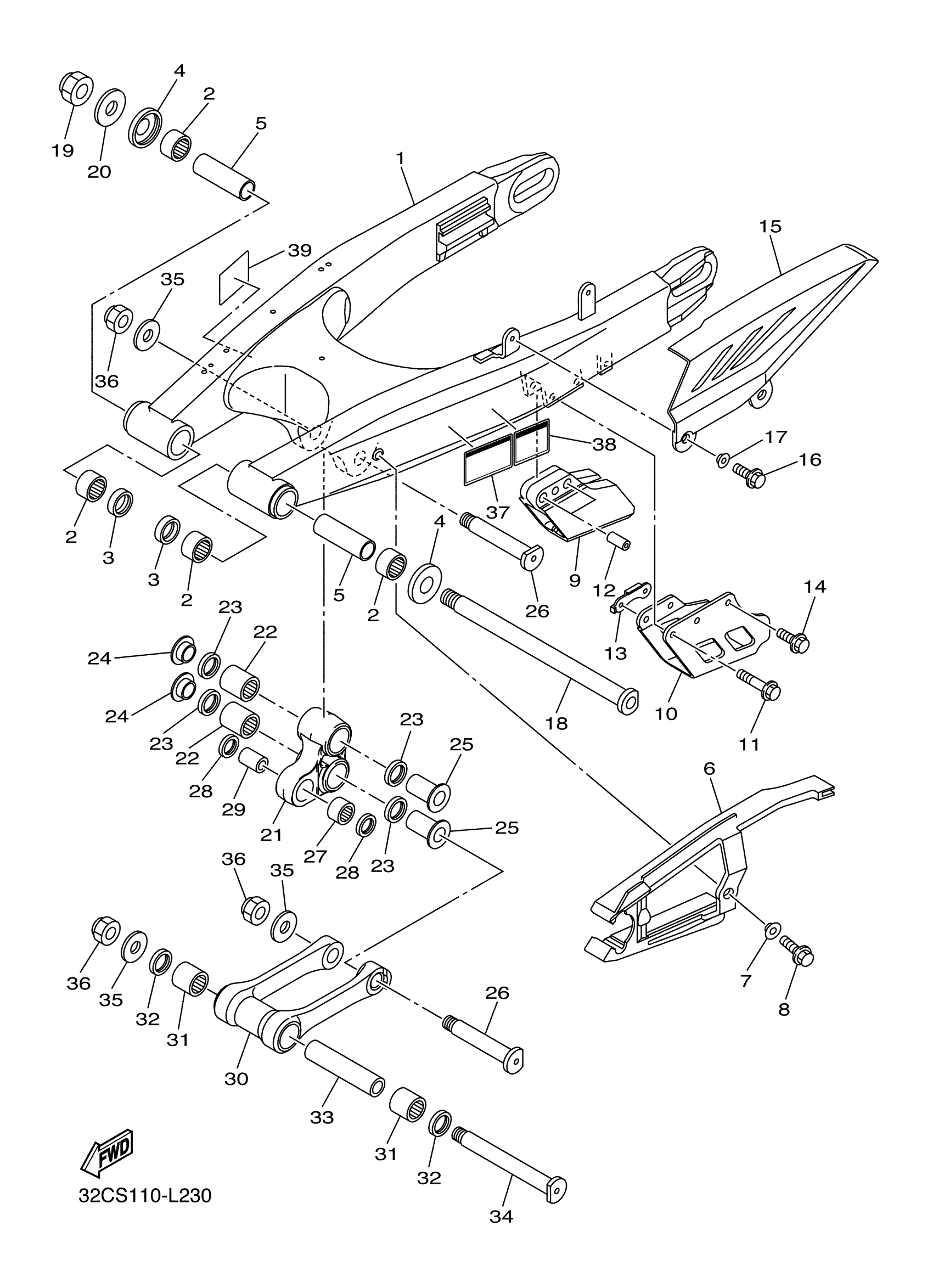

Yamaha WR25RHC (WR250R CA) 2CFE 2017 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

3D7-22110-00-00

Unavailable

2

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$31.85

3

OIL SEAL (23X)

93106-22019-00

$8.72

4

COVER, THRUST 1

3D7-22128-00-00

Unavailable

5

COLLAR

90387-18013-00

$20.39

6

SEAL, GUARD

3D7-22151-00-00

$75.57

7

COLLAR (899 INTAKE)

90387-06500-00

$6.28

8

BOLT, FLANGE

95022-06020-00

$3.11

9

SUPPORT, CHAIN

4RR-22199-01-00

Unavailable

10

COVER, THRUST 1

4RR-22128-01-00

Unavailable

11

BOLT, FLANGE

90105-06162-00

$2.19

12

COLLAR(1AE)

90387-060N3-00

$8.61

13

NUT

4RR-22143-00-00

$13.18

14

BOLT, FLANGE

95022-06010-00

$5.08

15

CASE, CHAIN

5XT-22311-01-00

Unavailable

16

BOLT, FLANGE

95022-06010-00

$5.08

17

COLLAR

90387-06184-00

Unavailable

18

SHAFT, PIVOT

3D7-22141-00-00

Unavailable

19

NUT, SELF-LOCKING

90185-16002-00

Unavailable

20

WASHER, PLATE

90201-16018-00

Unavailable

21

ARM, RELAY

3D7-2217A-00-00

Unavailable

22

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

23

OIL SEAL

93109-20076-00

Unavailable

24

COLLAR

90387-16005-00

Unavailable

25

COLLAR

90387-16007-00

Unavailable

26

SHAFT 2

1C3-22122-00-00

Unavailable

27

BEARING

93315-31758-00

Unavailable

28

OIL SEAL

93109-17071-00

Unavailable

29

COLLAR

90387-1012A-00

Unavailable

30

ROD, CONNECTING 1

3D7-2217F-00-00

Unavailable

31

BEARING

93315-32165-00

Unavailable

32

OIL SEAL

93109-21001-00

Unavailable

33

COLLAR

90387-14012-00

Unavailable

34

SHAFT 1

3D7-22121-00-00

Unavailable

35

WASHER, PLATE

90201-14020-00

Unavailable

36

NUT, SELF-LOCKING

90185-14010-00

Unavailable

37

LABEL, TIRE

32C-21668-00-00

Unavailable
