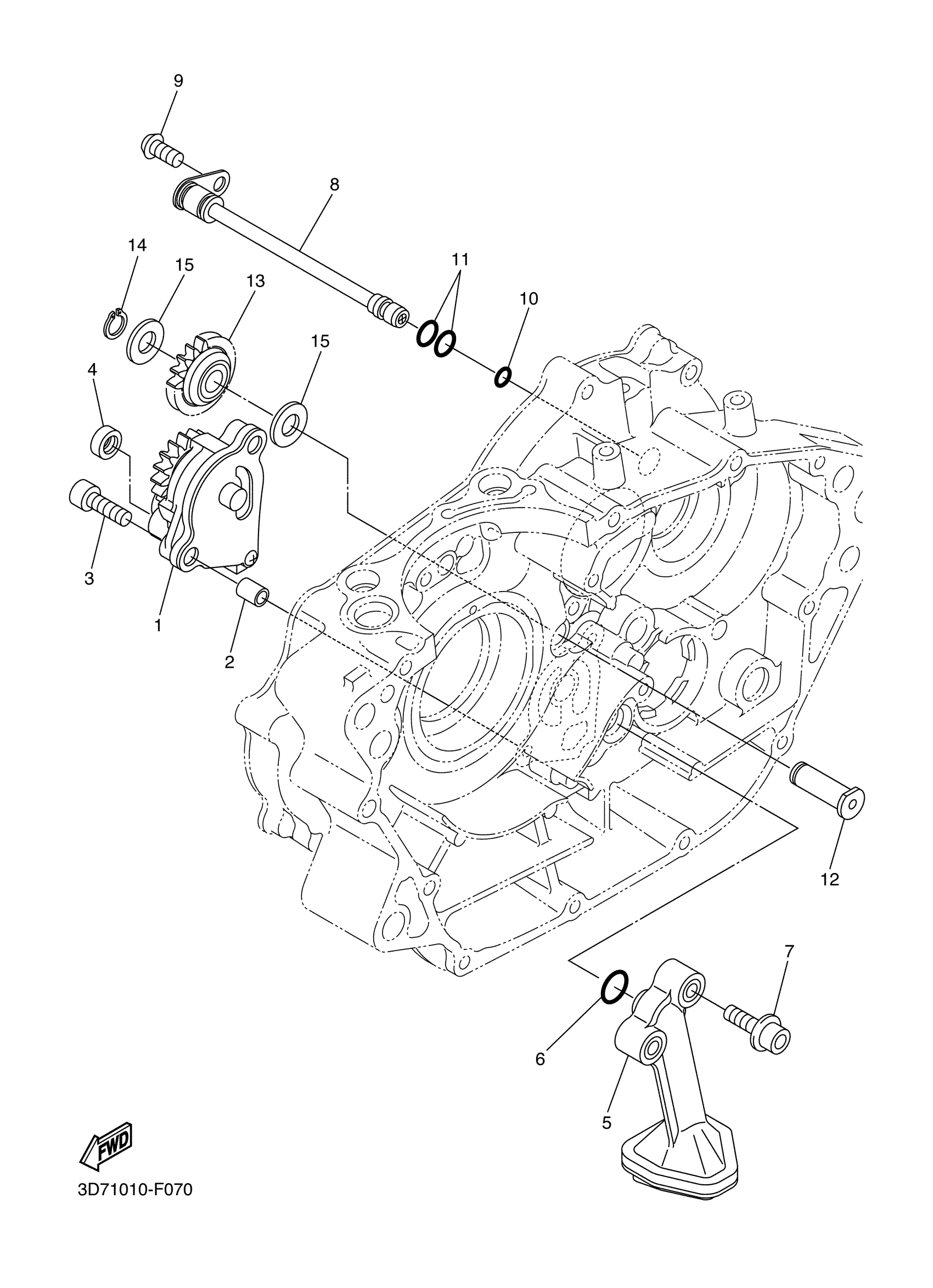

Yamaha WR25RGC (WR25R CA) 2CFB 2016 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

3D7-13300-00-00

$159.73

2

PIN, DOWEL

99530-08012-00

$4.89

3

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

4

GASKET (5Y1)

90430-08178-00

$4.51

5

STRAINER HOUSING ASSY

3D7-13410-00-00

Unavailable

6

O-RING (7OR)

93210-12648-00

$6.74

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

8

PIPE, DELIVERY 2

3D7-13171-00-00

Unavailable

9

SCREW

90149-06081-00

$5.75

10

O-RING (11M)

93210-07540-00

$5.39

11

O-RING (1J7)

93210-09350-00

$5.42

12

SHAFT, IDLE GEAR

3D7-13342-00-00

Unavailable

13

GEAR, OIL PUMP IDLE

3D7-13341-00-00

Unavailable

14

CIRCLIP(10W)

99009-10400-00

$3.65

15

WASHER, PLATE (2W5)

90201-10614-00

$6.22
