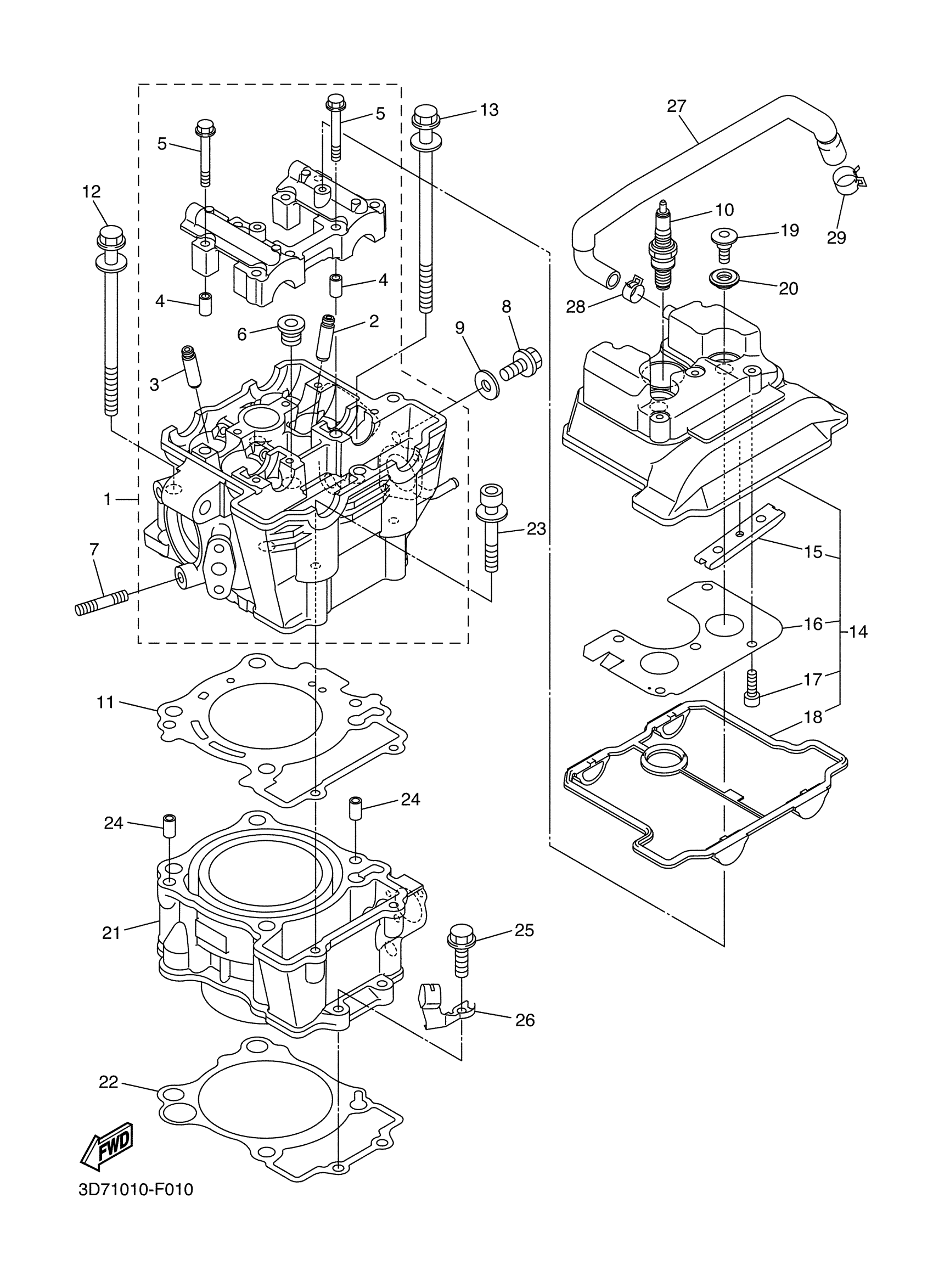

Yamaha WR25RFC (WR250R CA) 2CF8 2015 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3D7-11101-09-00

Unavailable

2

GUIDE, VALVE 1

3D7-11133-10-00

$51.86

3

GUIDE, VALVE 1

2C0-11133-11-00

$53.86

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

BOLT, WASHER BASED

90105-06027-00

$5.80

6

PLUG, STRAIGHT SCREW

90340-12007-00

$5.81

7

BOLT, STUD

95612-08620-00

$5.81

8

BOLT, FLANGE

95022-08012-00

$8.86

9

GASKET

90430-08119-00

Unavailable

10

CR9EK NGK SPLUG 10PK

CR9-EK000-00-00

$13.18

11

GASKET, CYLINDER HEAD 1

3D7-11181-00-00

$41.49

12

BOLT, WITH WASHER

90119-10025-00

Unavailable

13

BOLT, WITH WASHER

90119-10026-00

Unavailable

14

COVER, CYLINDER HEAD 1

3D7-11190-00-00

Unavailable

15

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

16

PLATE, BREATHER

3D7-11165-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

GASKET, HEAD COVER 1

3D7-11193-00-00

Unavailable

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

21

CYLINDER 1

3D7-11311-02-00

Unavailable

22

GASKET, CYLINDER

3D7-11351-02-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06298-00

Unavailable

24

PIN, DOWEL(3XW)

91808-16023-00

$5.26

25

BOLT, FLANGE

95022-06025-00

Unavailable

26

CLAMP 1

3D7-12491-00-00

Unavailable

27

PIPE, BREATHER 1

3D7-11166-00-00

Unavailable

28

CLIP

90467-120A5-00

Unavailable

29

CLIP

90467-15141-00

Unavailable
