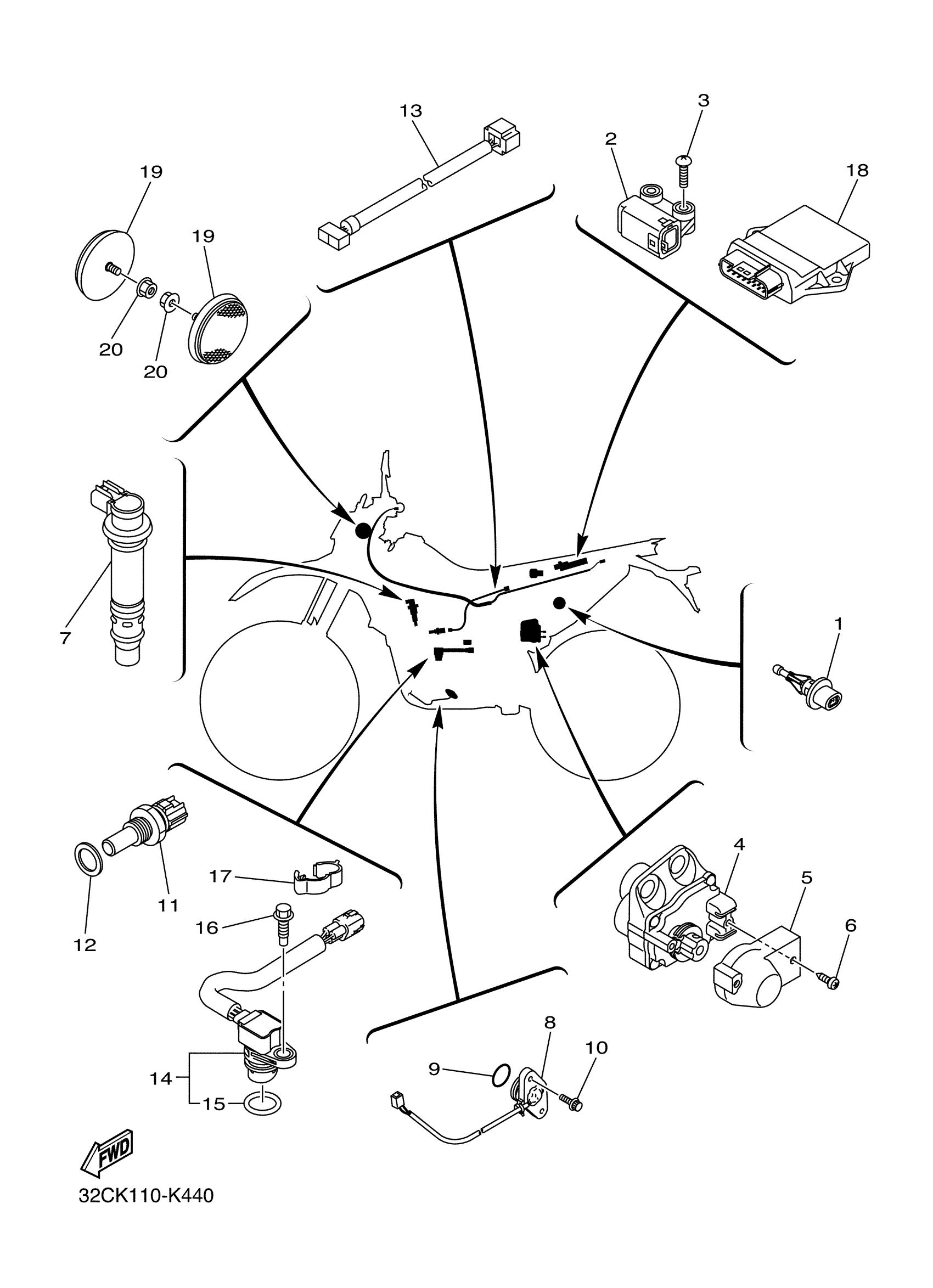

Yamaha WR25RBL (WR25R) 32CS 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

SENSOR, AIR TEMPERATURE

5VU-85886-00-00

$57.99

2

SENSOR, LEAN ANGLE

5PS-82576-02-00

$88.99

3

SCREW, TAPPING

97702-40030-00

Unavailable

4

SERVO MOTOR ASSY

2D1-85820-01-00

Unavailable

5

COVER, SERVO MOTOR

5VY-85829-01-00

Unavailable

6

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

7

IGNITION COIL ASSY

8ES-82310-00-00

$159.99

8

NEUTRAL SWITCH ASSY

32D-82540-01-00

Unavailable

9

O-RING

93210-21001-00

$5.60

10

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

11

THERMOSENSOR ASSY

5PS-85790-00-00

$85.99

12

GASKET(2GH)

90430-12202-00

$9.49

13

WIRE, SUB LEAD

3D7-82509-00-00

Unavailable

14

SENSOR, SPEED

3D7-83755-01-00

Unavailable

15

O-RING

4D9-81168-00-00

$6.99

16

BOLT, FLANGE

95022-06014-00

Unavailable

17

CLAMP

90464-16003-00

Unavailable

18

ENGINE CONTROL UNIT ASSY

32C-8591A-01-00

Unavailable

19

REFLECTOR, FRONT 1

2EK-85111-00-00

Unavailable

20

NUT, S/L FLANGE

95607-05200-00

Unavailable
