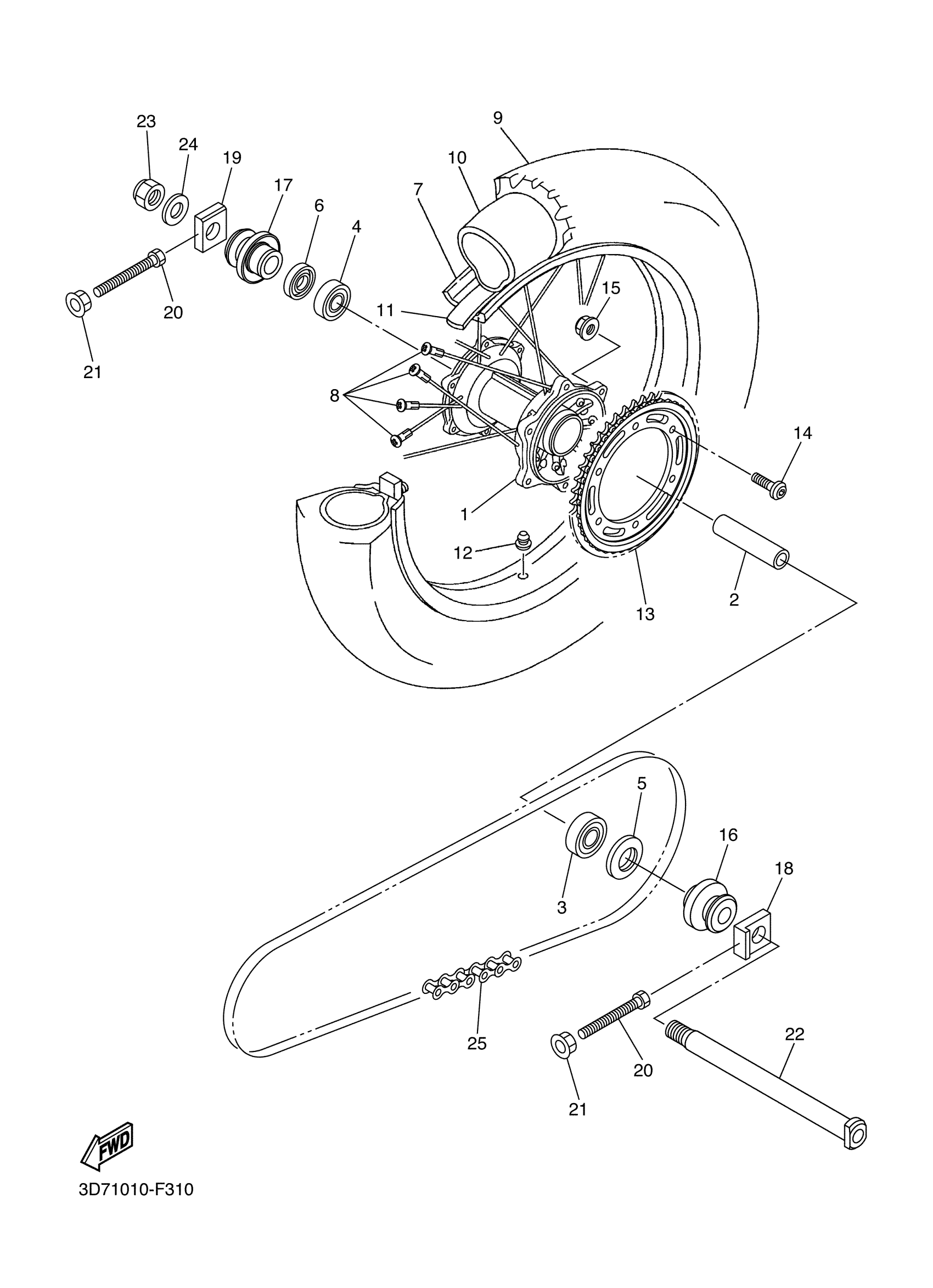

Yamaha WR25RAL (WR250R) 32CK 2011 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

3D7-25311-00-00

$308.17

2

SPACER, BEARING

5ET-25317-00-00

$40.00

3

BEARING(89A)

93306-27206-00

$63.26

4

BEARING(85G)

93306-07202-00

$31.48

5

OIL SEAL

93106-30001-00

$9.34

6

OIL SEAL

93106-30045-00

$7.40

7

RIM (2.15-18)

94421-18016-00

Unavailable

8

SPOKE SET, REAR

3D7-25304-00-00

$87.80

9

TIRE(120/80-18 M/C 26P)

94112-18028-00

$88.15

10

TUBE (3R9)

94241-18153-00

$92.39

11

BAND, RIM (2J4)

94340-18086-00

$14.93

12

GROMMET (397)

90480-10068-00

$6.32

13

SPROCKET, DRIVEN (43T)

32C-25443-00-00

$45.88

14

BOLT

90111-08030-00

$5.84

15

NUT, SELF-LOCKING

95602-08200-00

$2.73

16

COLLAR ASSY

3D7-2530S-01-00

Unavailable

17

COLLAR ASSY

3D7-2531S-01-00

Unavailable

18

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

19

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

20

BOLT

90101-08006-00

Unavailable

21

NUT

90179-08019-00

Unavailable

22

AXLE, WHEEL

3D7-25381-00-00

Unavailable

23

NUT, SELF-LOCKING

90185-20002-00

Unavailable

24

WASHER, PLATE

90201-20020-00

Unavailable

25

CHAIN

94582-02108-00

Unavailable
