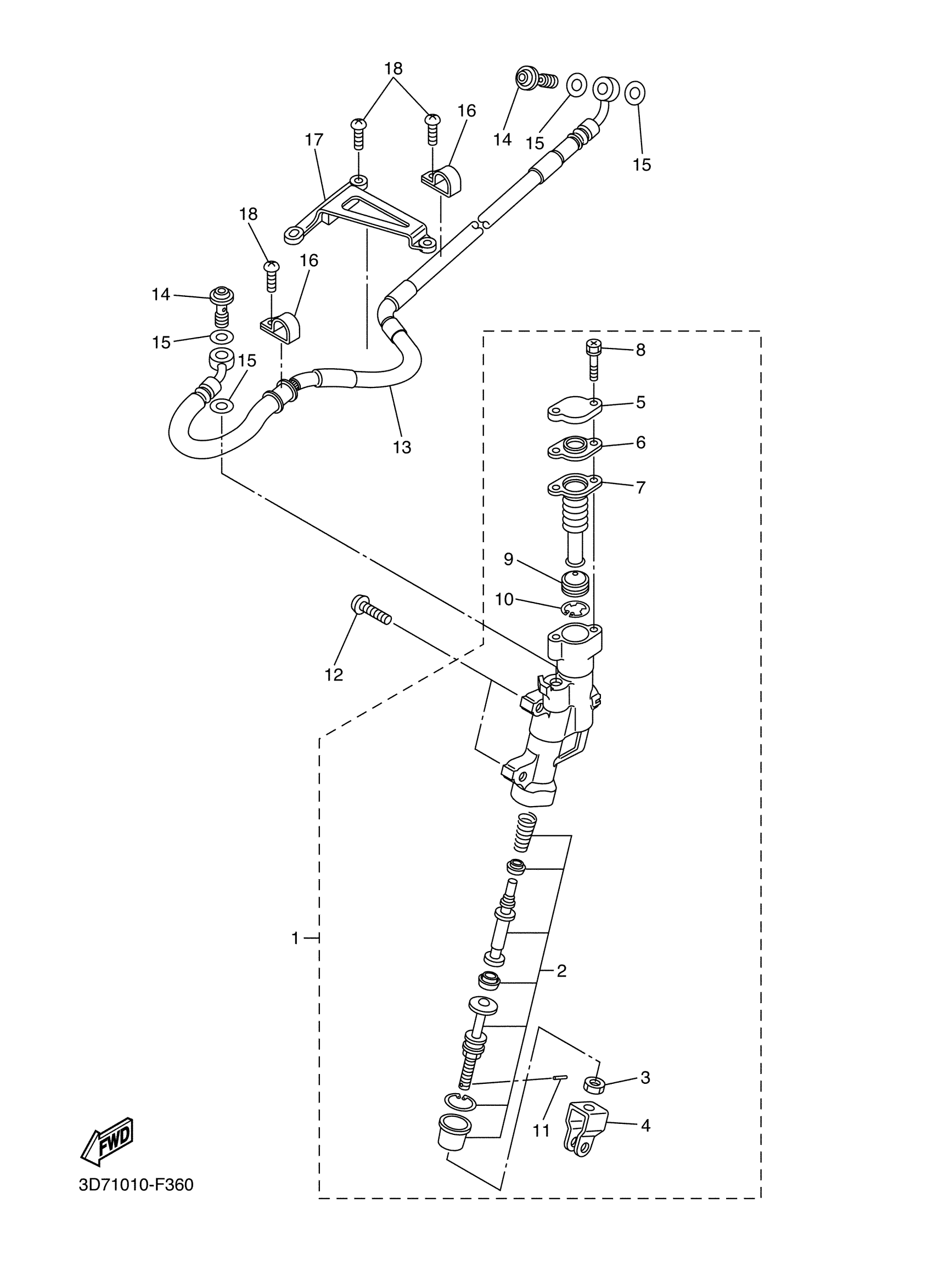

Yamaha WR25RAL (WR250R) 32CK 2011 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

3D7-2583V-00-00

$197.79

2

CYLINDER KIT, MASTER

3D7-W0042-00-00

$53.82

3

NUT

3D7-27218-00-00

Unavailable

4

JOINT

5UN-27222-00-00

$14.29

5

CAP, RESERVOIR

5UN-25852-50-00

$14.24

6

PLATE, DIAPHRAGM

5UN-2585B-00-00

$5.99

7

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$11.48

8

BOLT

5UN-27217-00-00

$4.44

9

SEPARATOR ASSY

5CG-25715-00-00

$9.87

10

CIRCLIP

5CG-2585G-00-00

$4.70

11

PIN, BRAKE ROD

3KW-27234-00-00

$6.33

12

BOLT

90111-06059-00

$3.65

13

HOSE, BRAKE 2

3D7-25873-00-00

Unavailable

14

BOLT, UNION

90401-10172-00

$3.46

15

GASKET

90430-10005-00

$6.57

16

HOLDER, BRAKE HOSE 2

3D7-25876-00-00

Unavailable

17

HOLDER, BRAKE HOSE

3D7-25886-00-00

Unavailable

18

SCREW, WITH WASHER

90159-05053-00

Unavailable
