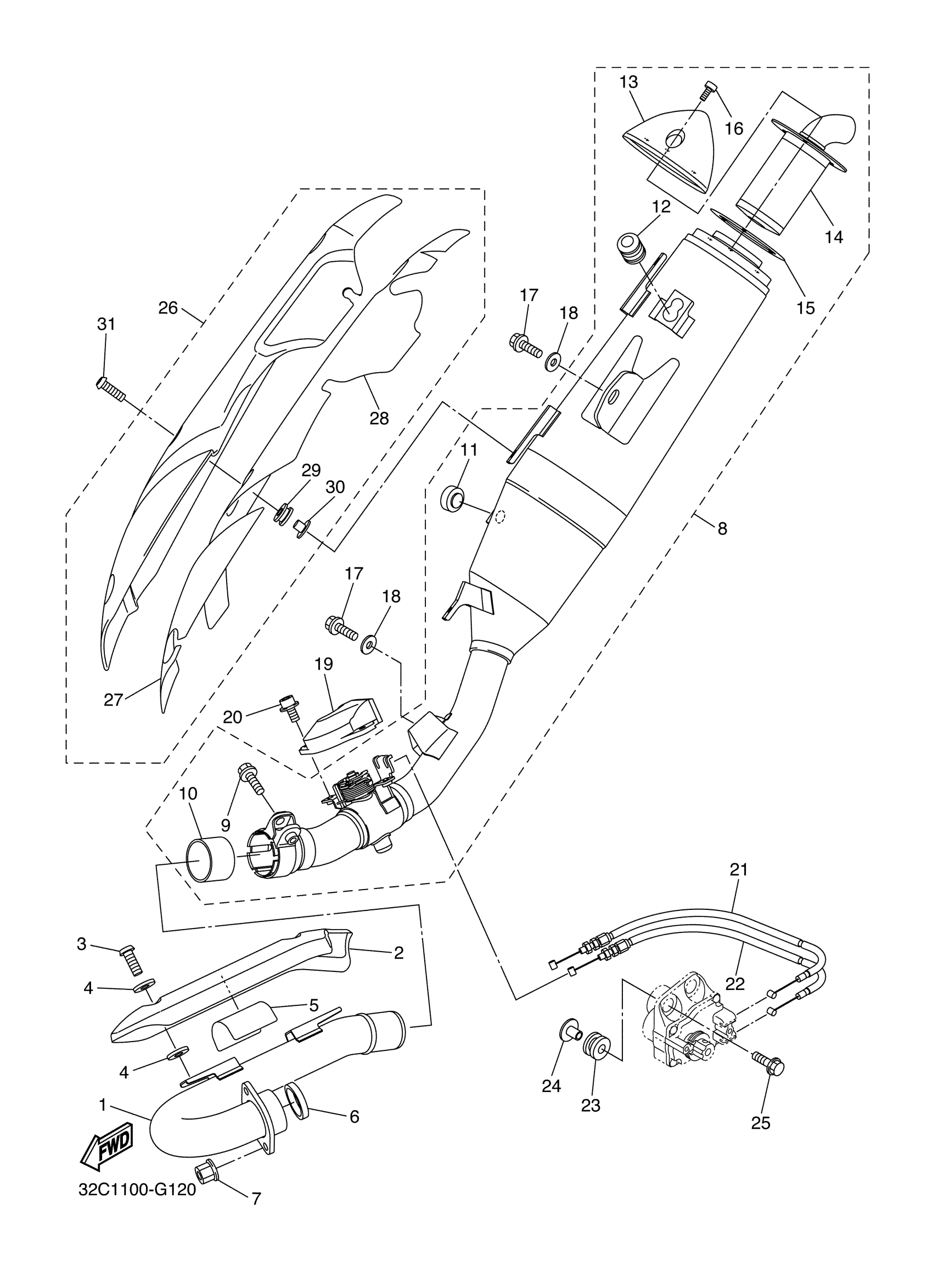

Yamaha WR25RAL (WR250R) 32CK 2011 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

3D7-14611-00-00

$185.99

2

PROTECTOR, EXHAUST PIPE

3D7-14628-00-00

Unavailable

3

SCREW, BIND(J45)

98980-06012-00

$8.49

4

WASHER, PLATE

90201-05015-00

$8.49

5

PLATE, PROTECTOR

3D7-1465R-00-00

$3.02

6

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

7

NUT (22U)

90179-08410-00

$9.49

8

MUFFLER ASSY 1

32C-14710-01-00

$824.99

9

BOLT, FLANGE(4FM)

95814-08035-00

$8.49

10

GASKET, SILENCER

5PX-14755-00-00

$29.99

11

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

12

DAMPER, MUFFLER

3D7-14737-00-00

$10.99

13

CAP

32C-14799-00-00

Unavailable

14

SPARK ARRESTER ASSY

32C-14780-00-00

Unavailable

15

GASKET, EXHAUST PIPE

32C-14623-00-00

$33.99

16

BOLT

91380-06012-00

Unavailable

17

BOLT, FLANGE

95024-10016-00

Unavailable

18

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

19

PROTECTOR, EXHAUST

3D7-14826-00-00

Unavailable

20

BOLT, WITH WASHER(1FK)

90119-06115-00

Unavailable

21

CABLE, PULLEY 1

3D7-1133E-01-00

Unavailable

22

CABLE, PULLEY 2

3D7-1133F-01-00

Unavailable

23

GROMMET(4TX)

90480-14604-00

Unavailable

24

COLLAR

90387-06158-00

Unavailable

25

BOLT, FLANGE

95022-06025-00

Unavailable

26

PROTECTOR ASSY

3D7-14708-10-P0

Unavailable

27

PROTECTOR, MUFFLER 2

3D7-14728-00-00

Unavailable

28

PROTECTOR, MUFFLER 3

3D7-14738-00-00

Unavailable

29

GROMMET(4FW)

90480-12581-00

Unavailable

30

COLLAR(50M)

90387-087L0-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-06087-00

Unavailable
