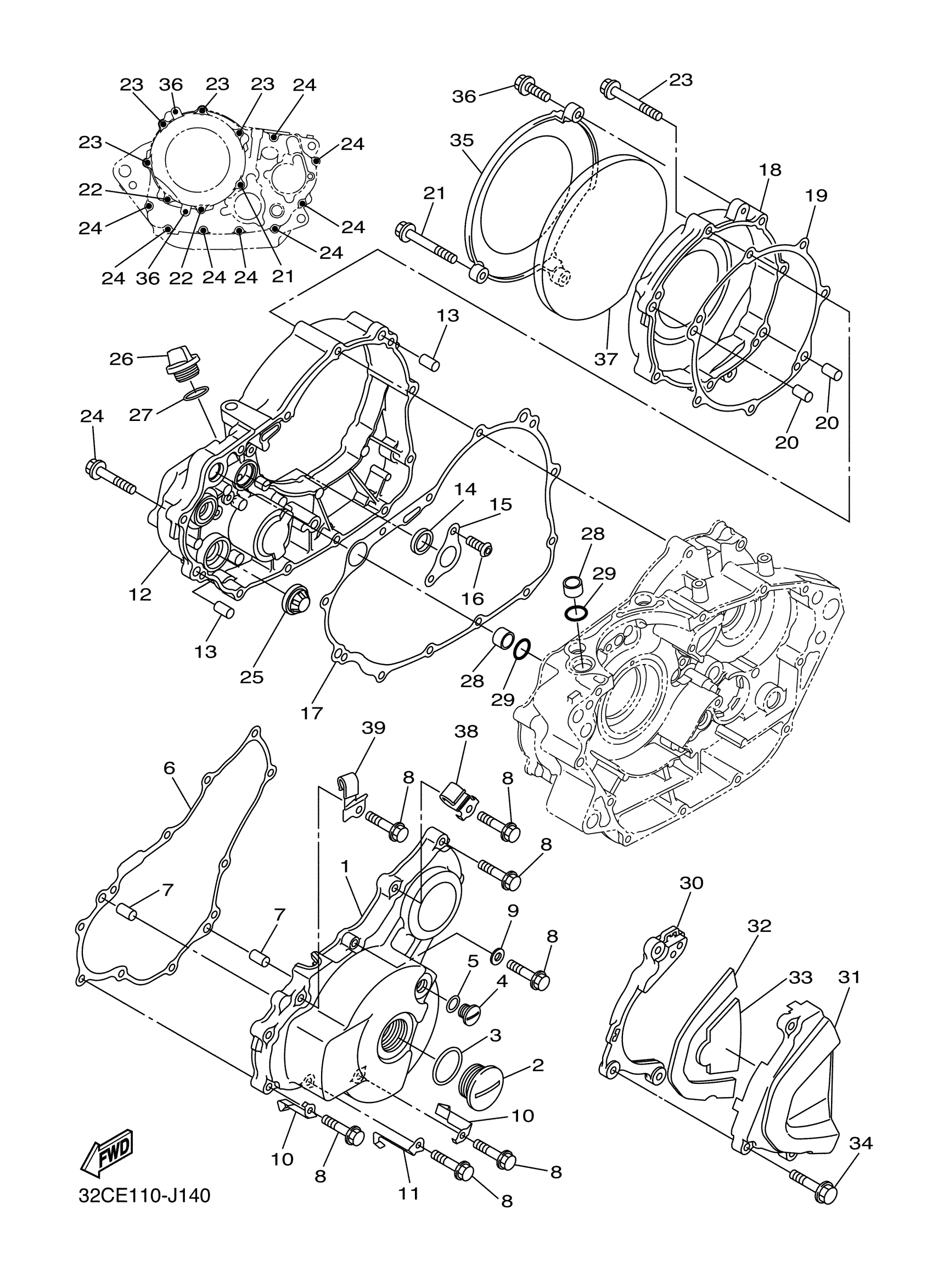

Yamaha WR25RAL (WR250R) 32CK 2011 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3D7-15411-00-00

$184.99

2

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

3D7-15451-00-00

$14.49

7

PIN, DOWEL

99530-08012-00

Unavailable

8

BOLT, FLANGE

95022-06030-00

$3.72

9

GASKET 256113960000

90430-06014-00

Unavailable

10

CLAMP

90462-08059-00

Unavailable

11

CLAMP

90462-08060-00

Unavailable

12

COVER, CRANKCASE 3

3D7-15431-00-00

Unavailable

13

PIN, DOWEL

99530-08012-00

Unavailable

14

OIL SEAL(4GY)

93101-14164-00

$11.49

15

HOLDER

3D7-15118-00-00

$2.18

16

SCREW

90149-06084-00

Unavailable

17

GASKET, CRANKCASE COVER 3

3D7-15462-00-00

Unavailable

18

COVER, GENERATOR

3D7-15415-00-00

Unavailable

19

GASKET

3D7-15453-10-00

Unavailable

20

PIN, DOWEL

99530-08012-00

Unavailable

21

BOLT, FLANGE

95022-06045-00

Unavailable

22

BOLT, FLANGE

95022-06035-00

Unavailable

23

BOLT, FLANGE

90105-06144-00

Unavailable

24

BOLT, FLANGE

95022-06030-00

$3.72

25

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

26

PLUG, OIL

3Y1-15363-10-00

Unavailable

27

O-RING (646)

93210-19123-00

Unavailable

28

PIPE, WATER

5NL-12564-00-00

Unavailable

29

O-RING (M124)

93210-16772-00

Unavailable

30

GUIDE, INLET

3D7-15377-00-00

Unavailable

31

COVER, CHAIN CASE

3D7-15418-00-00

Unavailable

32

DAMPER 3

3D7-15335-10-00

Unavailable

33

DAMPER 4

3D7-15337-10-00

Unavailable

34

BOLT, FLANGE

95022-06030-00

$3.72

35

COVER 2

3D7-15423-00-00

Unavailable

36

BOLT, FLANGE

95022-06020-00

Unavailable

37

DAMPER, ENGINE MOUNT 2

3D7-15326-00-00

Unavailable

38

CLAMP

90462-08065-00

Unavailable

39

CLAMP

90462-08069-00

Unavailable
