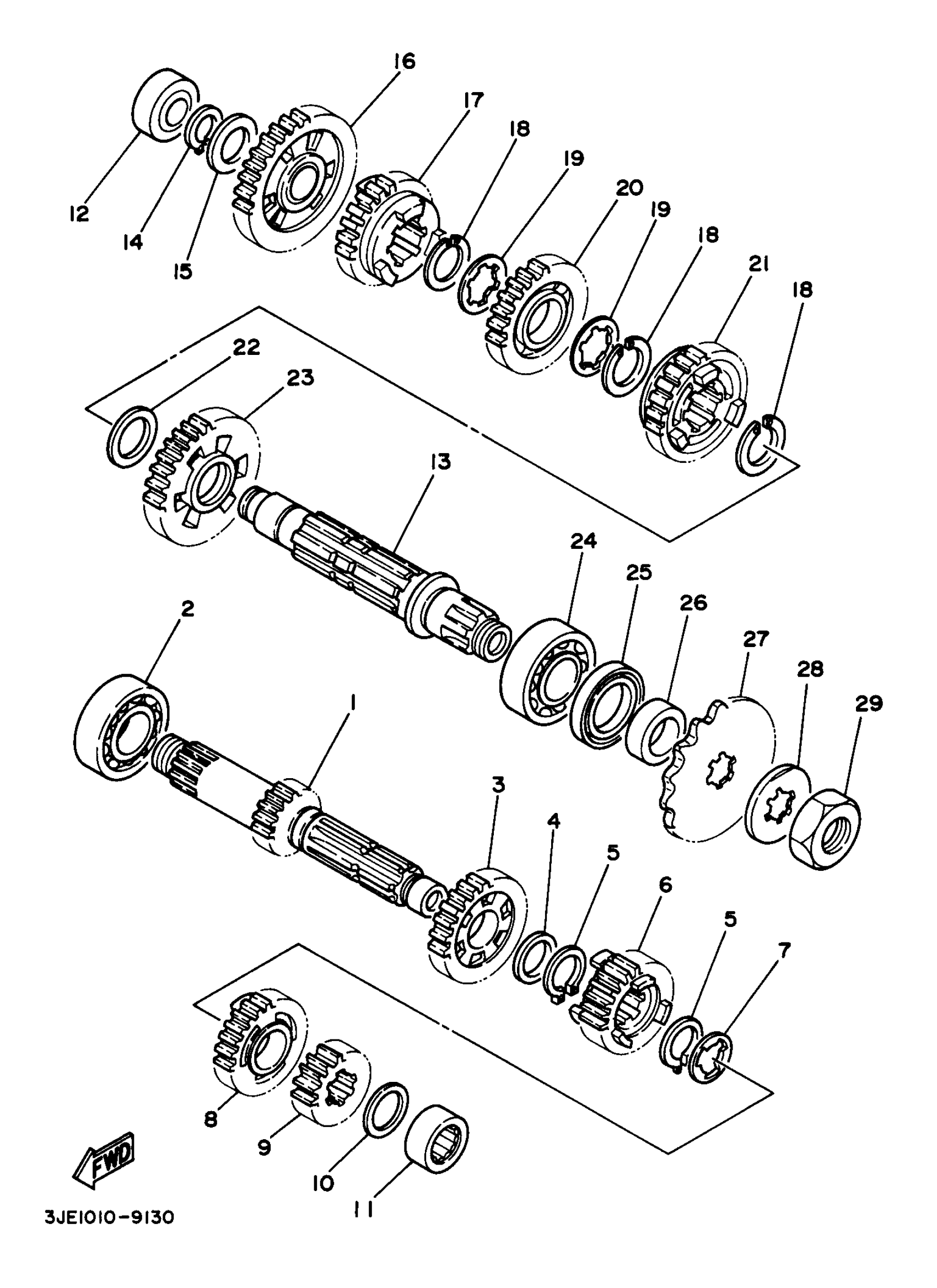

Yamaha WR250ZJ (WR250Z) 1997 TRANSMISSION Diagram

AXLE, MAIN

4JW-17411-00-00

Unavailable

BEARING

93306-205A2-00

$69.99

GEAR, 5TH PINION (25T)

3RB-17151-00-00

Unavailable

WASHER, PLATE (537)

90201-22555-00

$8.49

CIRCLIP (537)

93410-22039-00

$8.49

GEAR, 3RD PINION

3RB-17131-00-00

Unavailable

WASHER (537)

90209-18135-00

$9.49

GEAR, 4TH PINION

3RB-17141-10-00

Unavailable

GEAR, 2ND PINION

2VM-17121-01-00

Unavailable

WASHER(2HH)

90209-17311-00

$3.98

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

BEARING (2X7)

93311-62035-00

$57.99

AXLE, DRIVE

2VM-17421-01-00

Unavailable

CIRCLIP (525)

93410-20038-00

$3.76

WASHER PLATE 168171160000

90201-20278-00

$10.49

GEAR, 1ST WHEEL (32T)

3RB-17211-00-00

Unavailable

GEAR, 5TH WHEEL (21T)

3RB-17251-00-00

Unavailable

CIRCLIP (4L0)

93440-25084-00

Unavailable

WASHER 434172160000

90209-22082-00

Unavailable

GEAR, 3RD WHEEL

3RB-17231-00-00

Unavailable

GEAR, 4TH WHEEL

3RB-17241-10-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

GEAR, 2ND WHEEL (29T)

2VM-17221-00-00

Unavailable

BEARING(43G)

93306-20562-00

Unavailable

OIL SEAL (697)

93102-32M07-00

Unavailable

COLLAR (2K7)

90387-25663-00

Unavailable

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

SPROCKET, DRIVE

93834-14050-00

Unavailable

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

WASHER, LOCK (23X)

90215-21239-00

Unavailable

NUT (2K7)

90179-20255-00

Unavailable
