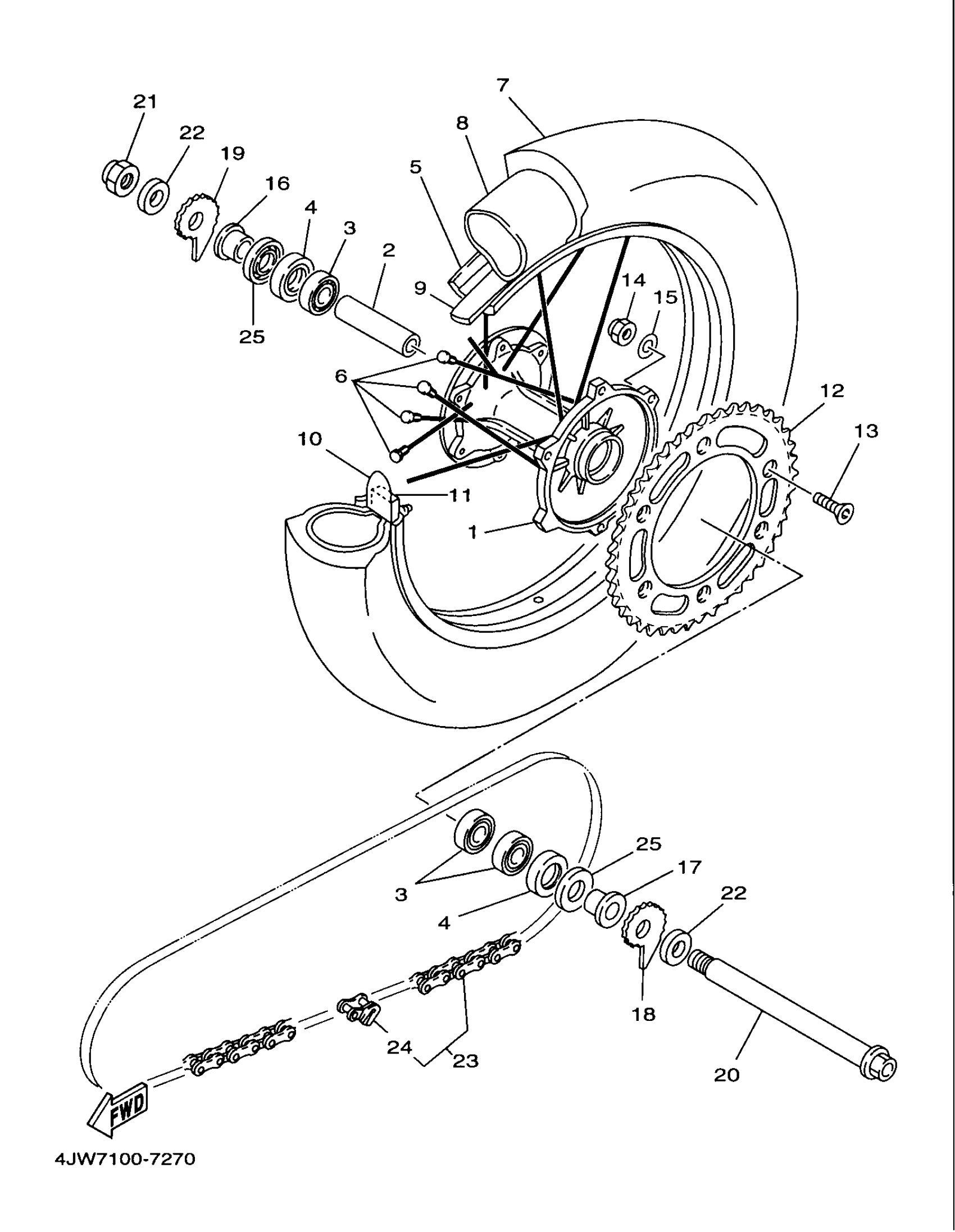

Yamaha WR250ZJ (WR250Z) 1997 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

4EW-25311-00-00

Unavailable

2

SPACER(1LX)

90560-20278-00

$29.99

3

BEARING(8AB)

93306-00444-00

$41.99

4

OIL SEAL(39X)

93106-28023-00

$12.49

5

RIM (2.15-18)

94421-18498-00

Unavailable

6

SPOKE SET, REAR

2VN-25304-00-00

Unavailable

7

110/100-18 64M DUN D739

94111-18008-00

Unavailable

8

TUBE (5A8)

94212-18188-00

$35.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

SPACER, BEAD

3JE-25394-00-00

$37.99

11

DAMPER

4XM-25364-00-00

$7.99

12

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25448-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25450-51-00

Unavailable

12

SPROCKET, DRIVEN (52T)

26A-25452-51-00

Unavailable

13

BOLT(3RB)

90109-081G1-00

Unavailable

14

NUT, SELF-LOCKING

90185-08169-00

Unavailable

15

WASHER (853)

90201-08326-00

Unavailable

16

COLLAR

90387-2000B-00

Unavailable

17

COLLAR

90387-2000C-00

Unavailable

18

PULLER, CHAIN 1

3BN-25388-00-00

Unavailable

19

PULLER, CHAIN 2

3BN-25389-00-00

Unavailable

20

AXLE, WHEEL

23X-25381-00-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

WASHER, PLATE(4JW)

90201-206R3-00

Unavailable

23

CHAIN

9Y581-08115-00

Unavailable

24

JOINT, CHAIN

94681-87011-00

Unavailable

25

COVER, HUB DUST

4V4-25367-00-00

Unavailable
