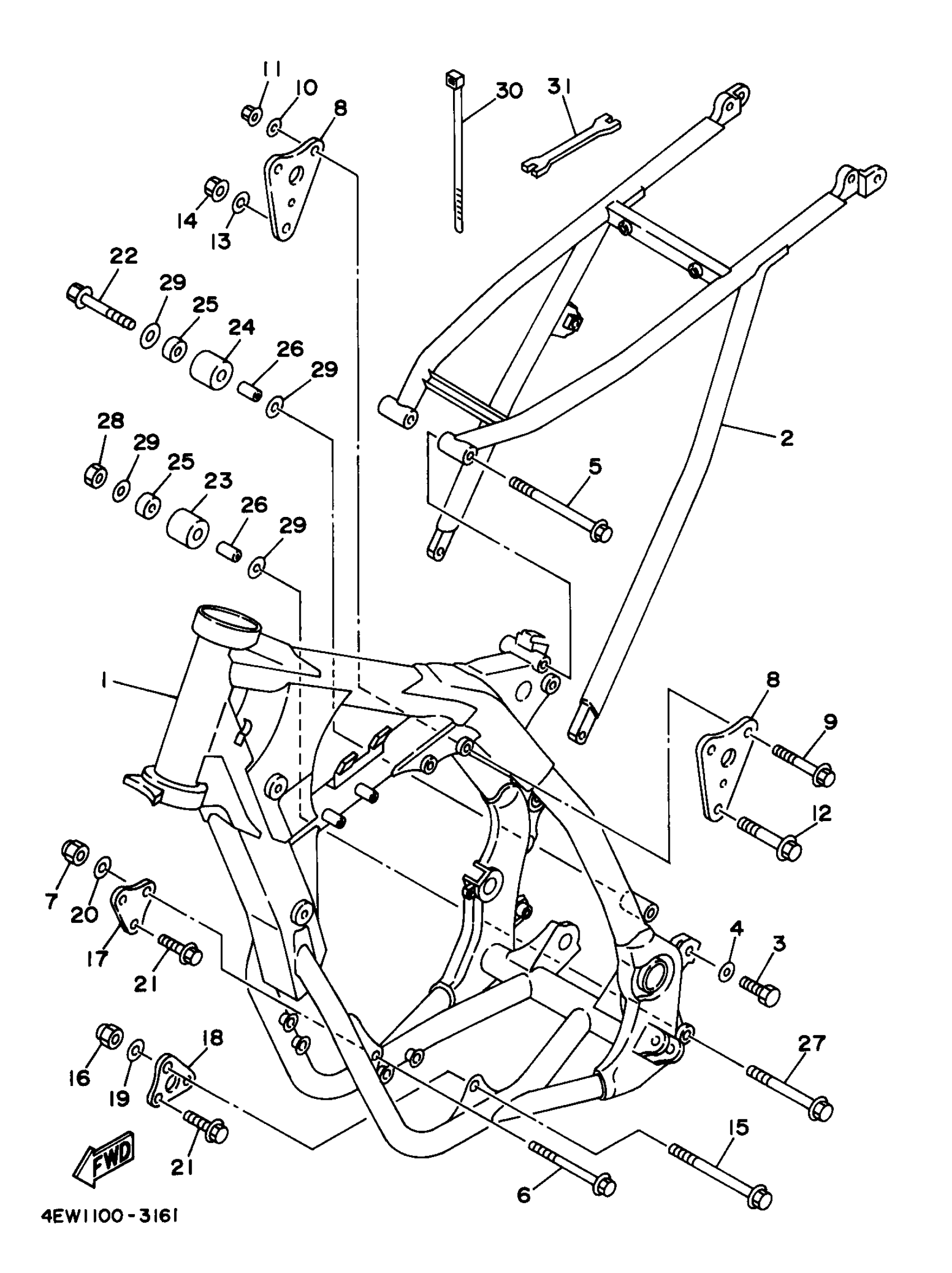

Yamaha WR250ZJ (WR250Z) 1997 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

4JX-21101-00-2F

Unavailable

2

REAR FRAME COMP.

4JX-21190-01-2F

Unavailable

3

BOLT(4EW)

90106-08051-00

Unavailable

4

WASHER, PLATE (7R4)

90201-080E2-00

$4.73

5

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

6

BOLT, WASHER BASED

90105-08592-00

Unavailable

7

NUT, U

95617-08100-00

$9.49

8

BRACKET, REAR UPPER 1

4EW-21425-00-00

Unavailable

9

BOLT, FLANGE

95817-08050-00

$2.44

10

WASHER, PLATE (12X)

90201-087F0-00

$5.60

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

BOLT, FLANGE(87Y)

95817-10055-00

$5.60

13

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

BOLT, WASHER BASED(3RB)

90105-10733-00

$4.51

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

17

BRACKET, FRONT LOWER 1

4EW-21417-00-00

Unavailable

18

BRACKET, REAR LOWER 1

4EW-21427-00-00

Unavailable

19

WASHER (853)

90201-08326-00

Unavailable

20

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

21

BOLT, FLANGE

95817-08035-00

Unavailable

22

BOLT, FLANGE(4MY)

95027-08040-00

Unavailable

23

TENSIONER

3JD-22178-20-00

Unavailable

24

TENSIONER

4EW-22178-01-00

Unavailable

25

BEARING (3X3)

93300-60804-00

Unavailable

26

COLLAR(1NL)

90387-086N4-00

Unavailable

27

BOLT, FLANGE

95027-08065-00

Unavailable

28

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

29

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

30

BAND

1UA-82591-00-00

Unavailable

31

WRENCH, HEXAGON

56A-28166-00-00

Unavailable
