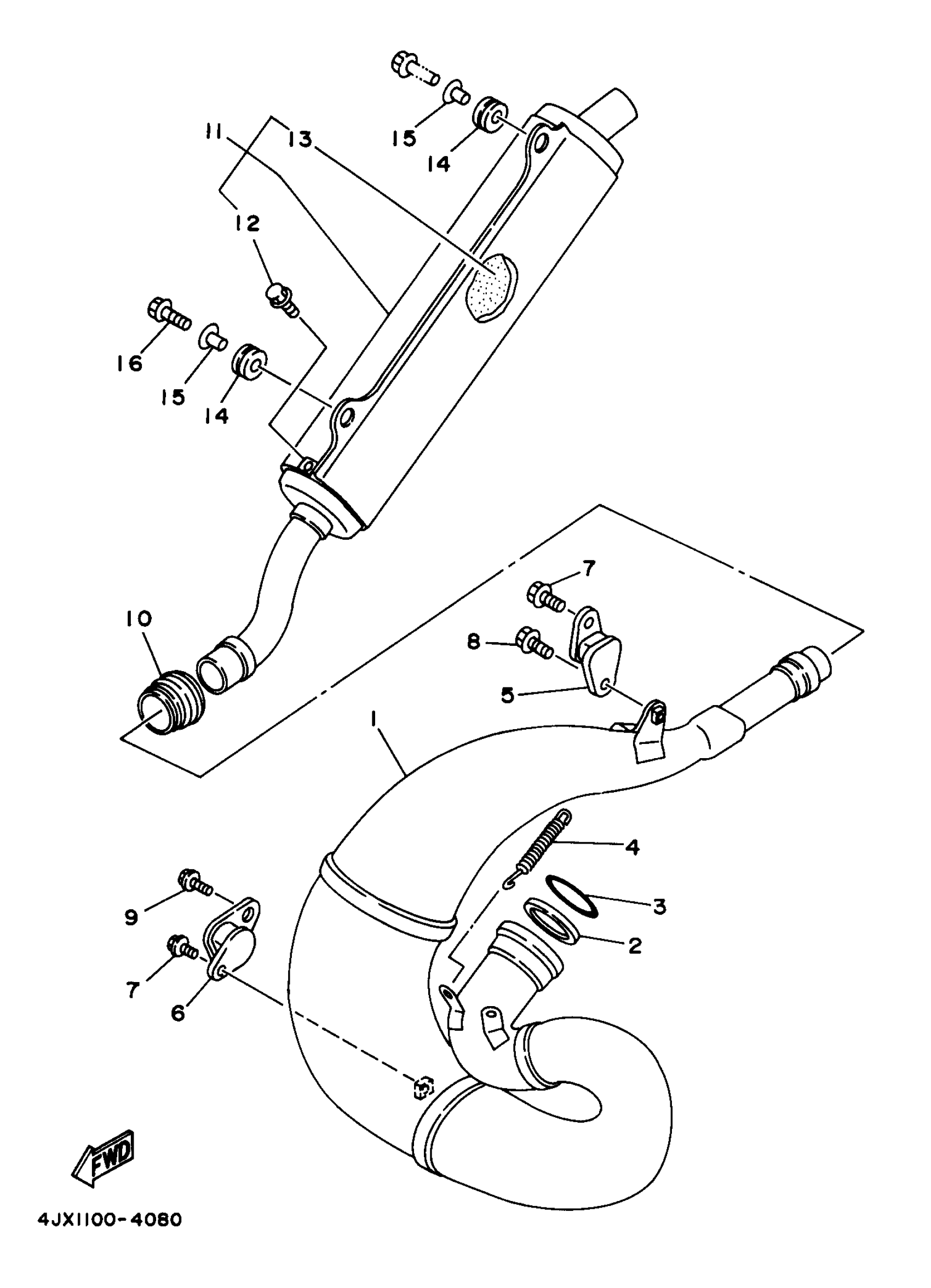

Yamaha WR250ZJ (WR250Z) 1997 EXHAUST Diagram

EXHAUST PIPE ASY L

4EW-14610-02-00

Unavailable

GASKET, EXHAUST

3R4-14613-00-00

$31.99

O-RING(2HH)

93210-56743-00

$15.99

SPRING, TENSION(3FV)

90507-20052-00

$4.99

STAY, MUFFLER 1

565-14771-01-00

$18.49

STAY, MUFFLER 2

483-14781-03-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

BOLT, WITH WASHER(3JD)

90119-06185-00

$10.49

BOLT, SMALL FLANGE

95027-08012-00

$9.49

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

SILENCER,EXHAUST

4EW-14753-02-00

Unavailable

BOLT, BUTTON HEAD

92017-06010-00

$4.82

. FIBER

4EW-1469A-01-00

Unavailable

GROMMET(4EW)

90480-16561-00

$16.99

COLLAR(52E)

90387-063G3-00

$8.49

BOLT, WASHER BASED(4KG)

90105-060A0-00

Unavailable
