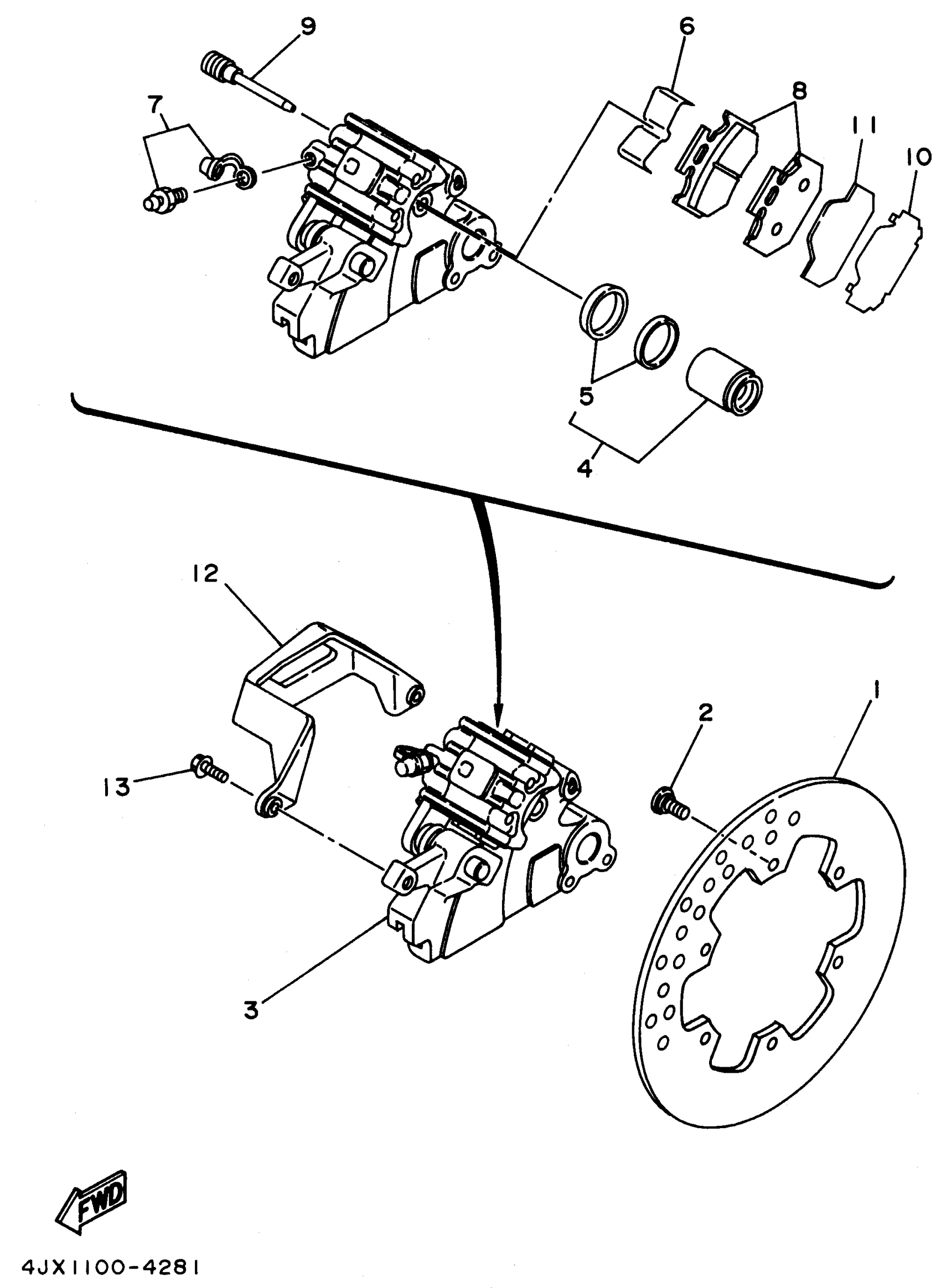

Yamaha WR250ZH (WR250Z) 1996 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4MX-2582W-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$1.23

CALIPER ASSY, REAR 2

4GY-2580W-00-00

Unavailable

PISTON ASSY, CALIPER

3SP-W0057-50-00

Unavailable

CALIPER SEAL KIT

3JD-25803-50-00

$14.37

SUPPORT, PAD

4GY-25919-50-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

BRAKE PAD KIT 2

4GY-W0046-00-00

Unavailable

PIN, PAD

3FV-25924-00-00

$20.15

SHIM

4XM-25827-50-00

Unavailable

INSULATOR, HEAT

4GY-22898-50-00

$17.42

PROTECTOR

4GY-27491-00-00

$49.55

BOLT, WASHER BASED(JA9)

90105-06696-00

$6.29
