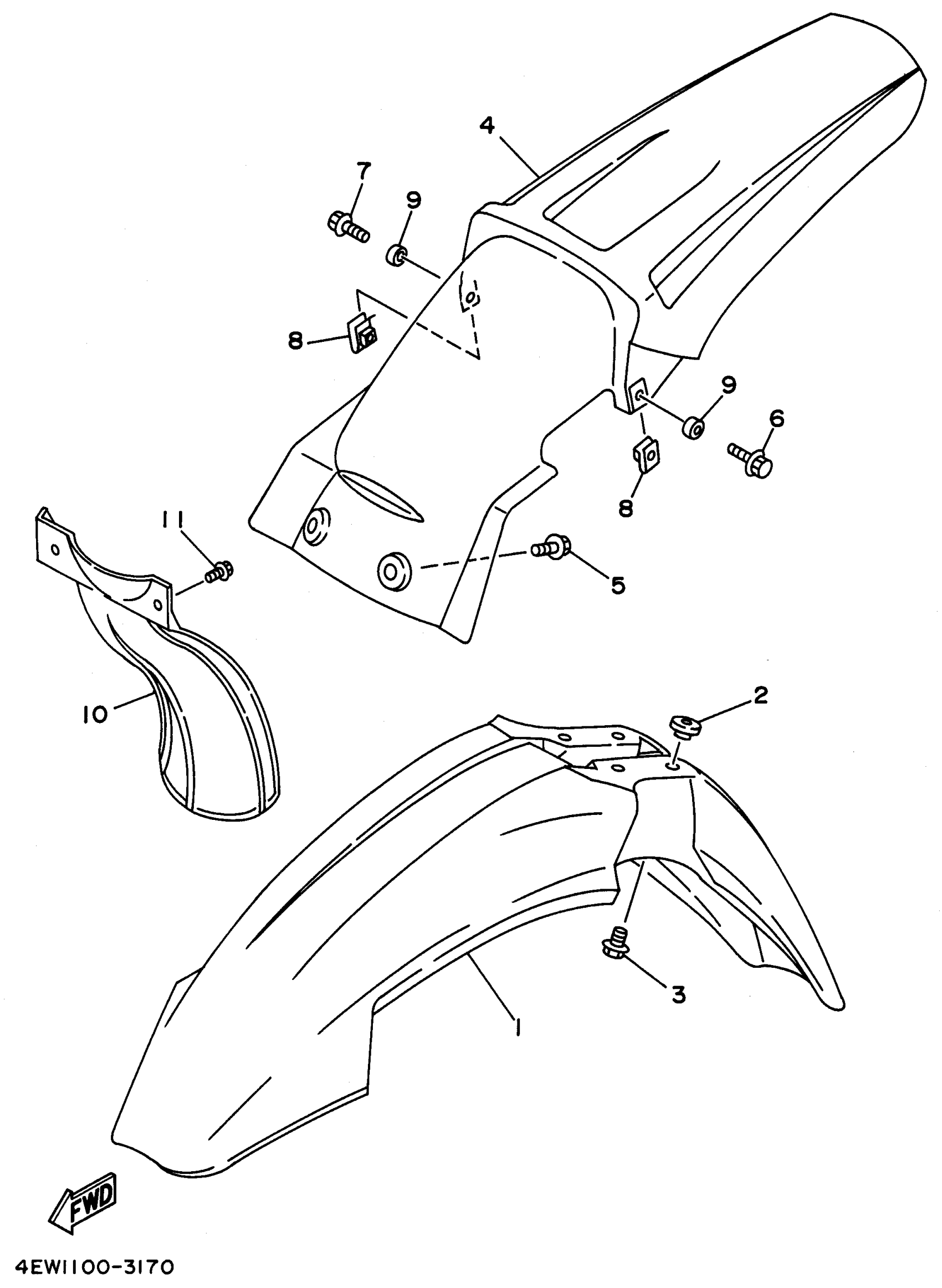

Yamaha WR250ZH (WR250Z) 1996 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4DA-21511-00-00

Unavailable

2

COLLAR

3JD-21748-00-00

$4.29

3

BOLT, WITH WASHER (10V)

90119-06063-00

$6.29

4

FENDER, REAR

4EW-21611-00-00

Unavailable

5

BOLT, WITH WASHER(3JD)

90119-06185-00

$7.11

6

BOLT, WASHER BASED(JA9)

90105-06696-00

$6.29

7

BOLT, SMALL FLANGE

95027-06030-00

$3.65

8

NUT, SPRING (26H)

90183-06023-00

$7.45

9

COLLAR(4EW)

90387-0701A-00

$6.68

10

GUARD, FLAP

39X-21642-00-00

$74.68

11

BOLT, WITH WASHER(3JD)

90119-06185-00

$7.11
