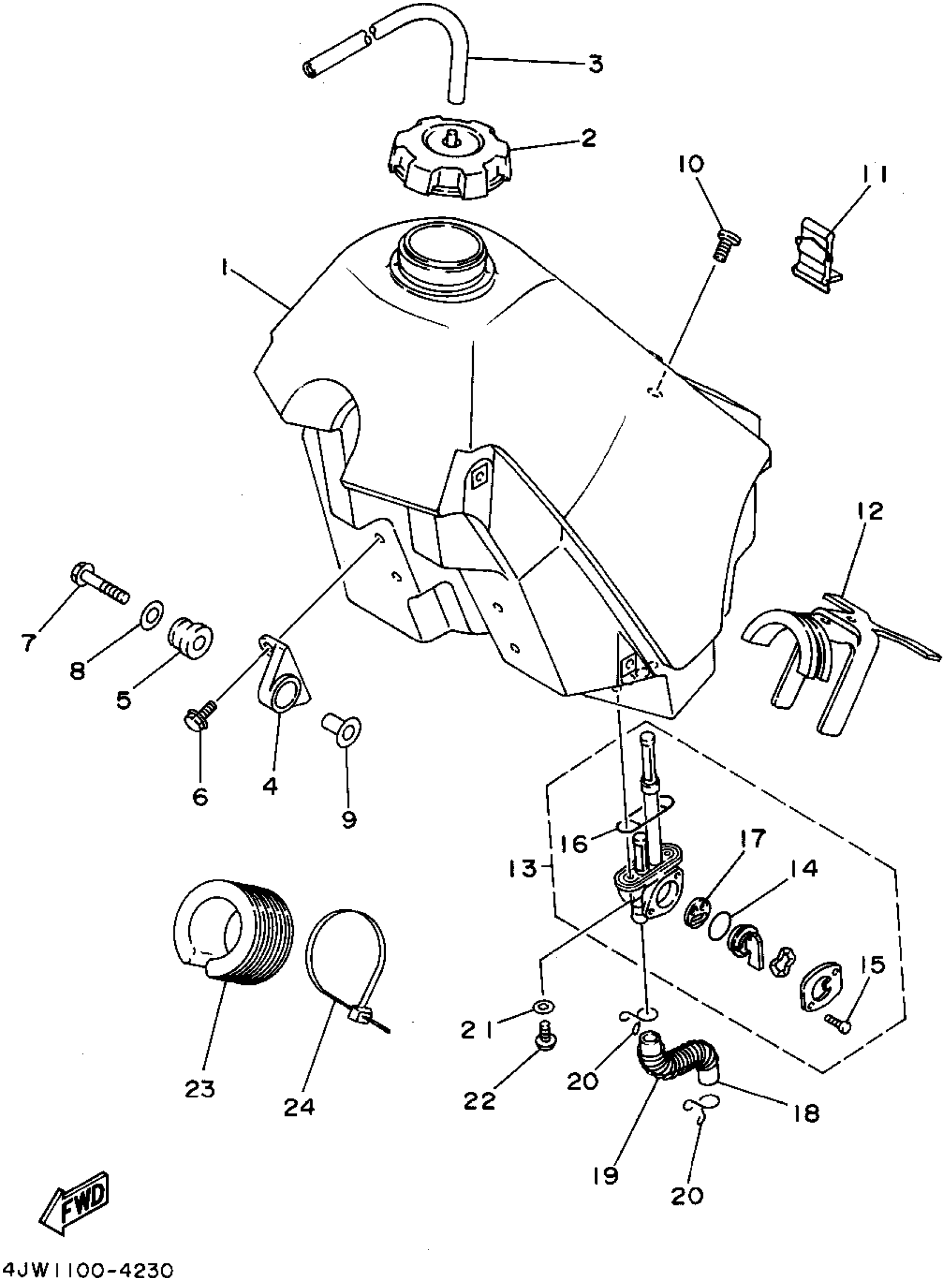

Yamaha WR250ZG (WR250Z) 1995 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4JW-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

HOLDER, DAMPER

5XE-24144-00-00

$23.99

5

GROMMET(4AA)

90480-18549-00

$10.49

6

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

7

BOLT, SMALL FLANGE

95027-06035-00

$2.22

8

WASHER, PLATE (J10)

90201-06697-00

$8.49

9

WASHER, SPECIAL

3JD-24186-00-00

$13.49

10

SCREW, BINDING

98907-06020-00

$8.49

11

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

12

DAMPER, LOCATING 1

4EW-24181-00-00

Unavailable

13

FUEL COCK ASSY 1

BF1-24500-00-00

$65.99

14

SEAL, COCK

3AJ-24534-01-00

$10.99

15

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

16

O-RING

4X8-24512-00-00

Unavailable

17

VALVE PACKING

3AC-24523-00-00

Unavailable

18

PIPE,FUEL 1

4JW-24311-10-00

Unavailable

19

SPRING, COMPRESSION(1YU)

90501-061E8-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

DAMPER, LOCATING 2

4EW-24182-00-00

Unavailable

24

CLAMP(MF1)

90464-15152-00

Unavailable
