FRONT FORK

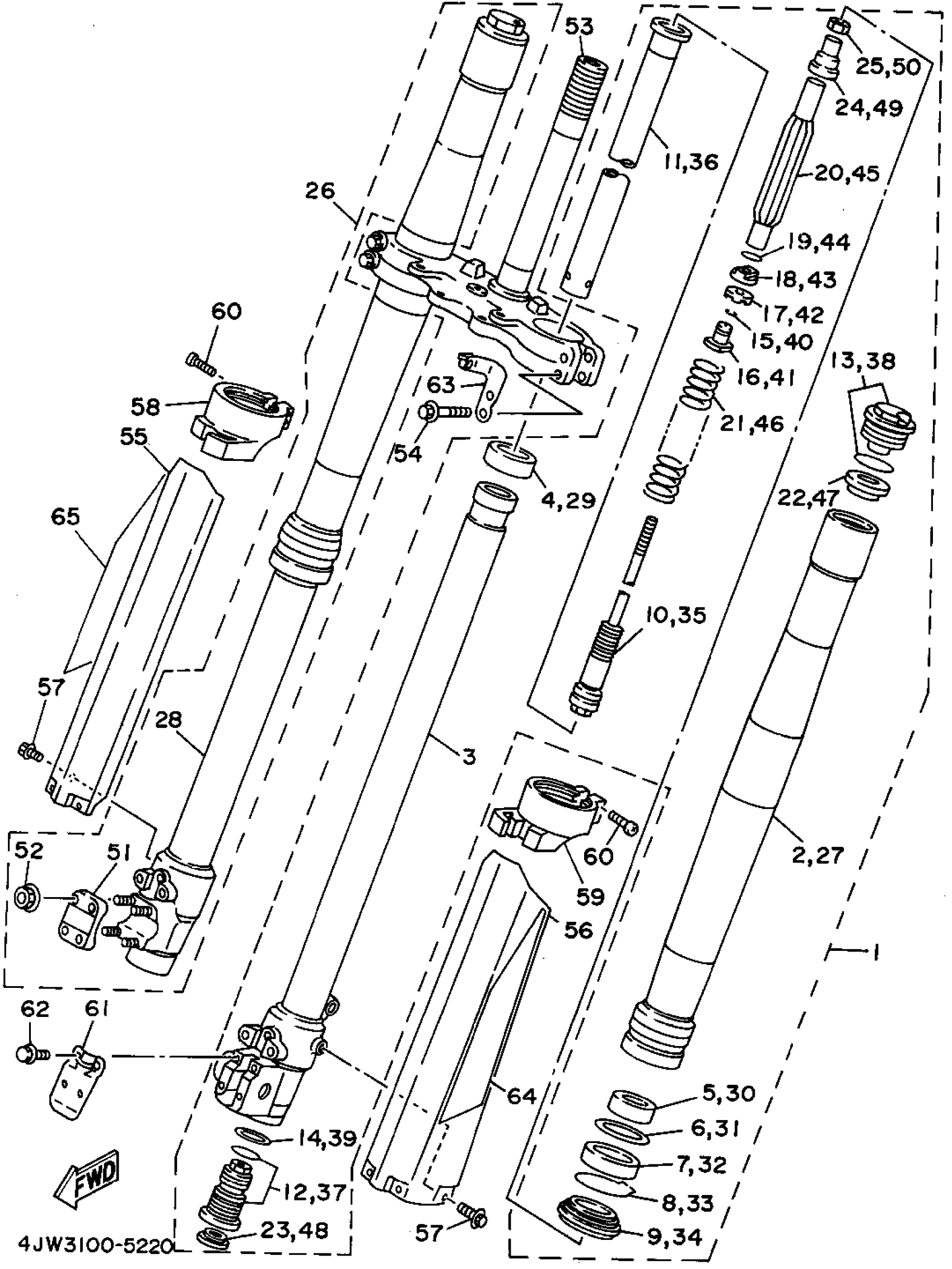

Yamaha WR250ZG (WR250Z) 1995 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY (LH)
4JW-23102-00-00
Unavailable
2
. TUBE, OUTER (RIGHT)
4JX-23136-L0-00
Unavailable
3
. INNER TUBE COMP2
4EW-23120-L0-00
Unavailable
5
. METAL, SLIDE 1
4EW-23125-L0-00
Unavailable
10
. PISTON ROD ASSEMBLY
4JW-2314A-00-00
Unavailable
11
. CYLINDER COMP, FRONT FORK
4JX-23170-L0-00
Unavailable
12
. VALVE COMP
4JY-2316A-L0-00
Unavailable
13
. BOLT, CAP
4EW-23111-L0-00
Unavailable
14
. GASKET
3JD-23158-L0-00
Unavailable
15
. RING, SNAP
3SP-23153-L0-00
Unavailable
16
. COLLAR
3SP-23113-L0-00
Unavailable
17
. SPACER, OIL LOCK
3SP-23166-L0-00
Unavailable
18
. NUT, SPECIAL
3SP-23393-L0-00
Unavailable
19
. O-RING
3JD-23147-L0-00
Unavailable
20
. SEAT, SPRING UPPER
4JX-23142-L0-00
Unavailable
21
FRT,FRK SPRG
3XJ-23141-80-00
Unavailable
22
. SEAT, SPRING LOWER
3XJ-23143-L0-00
Unavailable
23
PLUG
3JD-2312G-L0-00
Unavailable
24
. COLLAR 1
4JX-23363-L0-00
Unavailable
25
NUT
3SP-23357-L0-00
Unavailable
26
FRONT FORK ASSEMBLY (RH)
4JW-23103-00-00
Unavailable
27
. TUBE, OUTER (RIGHT)
4JX-23136-L0-00
Unavailable
28
. INNER TUBE COMP1
4EW-23110-L0-00
Unavailable
30
. METAL, SLIDE 1
4EW-23125-L0-00
Unavailable
35
. PISTON ROD ASSEMBLY
4JW-2314A-00-00
Unavailable
36
. CYLINDER COMP, FRONT FORK
4JX-23170-L0-00
Unavailable
37
. VALVE COMP
4JY-2316A-L0-00
Unavailable
38
. BOLT, CAP
4EW-23111-L0-00
Unavailable
39
. GASKET
3JD-23158-L0-00
Unavailable
40
. RING, SNAP
3SP-23153-L0-00
Unavailable
41
. COLLAR
3SP-23113-L0-00
Unavailable
42
. SPACER, OIL LOCK
3SP-23166-L0-00
Unavailable
43
. NUT, SPECIAL
3SP-23393-L0-00
Unavailable
44
. O-RING
3JD-23147-L0-00
Unavailable
45
. SEAT, SPRING UPPER
4JX-23142-L0-00
Unavailable
46
FRT,FRK SPRG
3XJ-23141-80-00
Unavailable
47
. SEAT, SPRING LOWER
3XJ-23143-L0-00
Unavailable
48
PLUG
3JD-2312G-L0-00
Unavailable
49
. COLLAR 1
4JX-23363-L0-00
Unavailable
50
NUT
3SP-23357-L0-00
Unavailable
51
. HOLDER, AXLE
4EW-23167-L0-00
Unavailable
52
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
53
UNDER BRACKET COMP.
4JX-23340-L0-00
Unavailable
54
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
55
PROTECTER COMP., 2
4MX-2314J-L0-00
Unavailable
56
PROTECTER COMP., 1
4MX-2314H-L1-00
Unavailable
57
BOLT 2
3SP-23356-L0-00
Unavailable
58
PROTECTER GUIDE COMP., 2
4MX-2314G-L0-00
Unavailable
59
PROTECTER GUIDE COMP., 1
4MX-2314F-L0-00
Unavailable
60
SCREW, PAN HEAD
98517-04025-00
Unavailable
61
COVER, HOSE
4EW-2314E-L0-00
Unavailable
62
BOLT, FLANGE(3BM)
95024-06008-00
Unavailable
63
GUIDE, CABLE
4EW-2331E-L1-00
Unavailable
64
EMBLEM1
4JW-2313B-11-00
Unavailable
65
EMBLEM2
4JW-2313C-11-00
Unavailable
