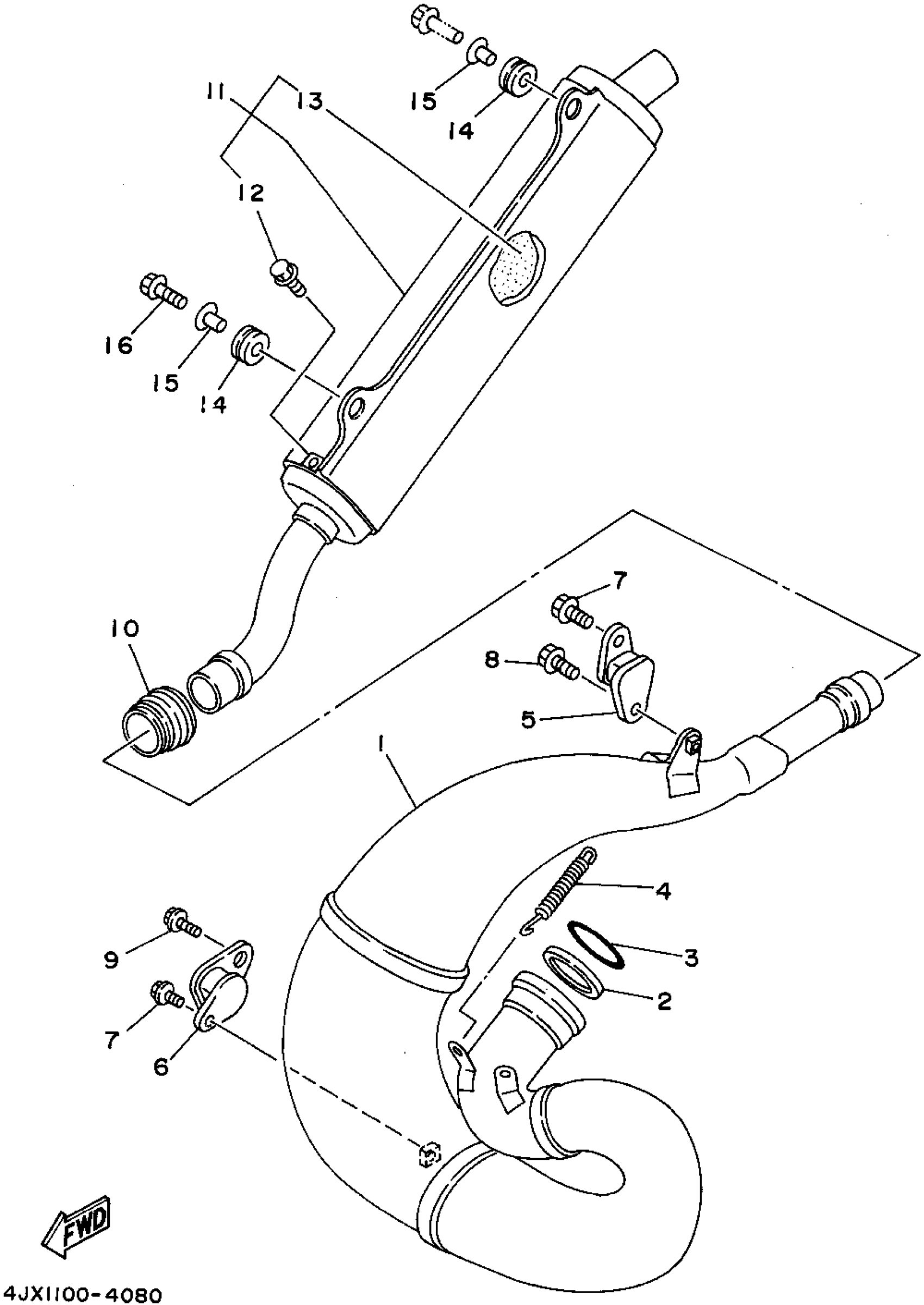

Yamaha WR250ZG (WR250Z) 1995 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASY L

4EW-14610-02-00

Unavailable

2

GASKET, EXHAUST

3R4-14613-00-00

$25.62

3

O-RING(2HH)

93210-56743-00

$12.96

4

SPRING, TENSION(3FV)

90507-20052-00

$3.92

5

STAY, MUFFLER 1

565-14771-01-00

$15.57

6

STAY, MUFFLER 2

483-14781-03-00

Unavailable

7

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

8

BOLT, WITH WASHER(3JD)

90119-06185-00

$7.00

9

BOLT, SMALL FLANGE

95027-08012-00

$6.43

10

JOINT, EXHAUST 1

3JE-14615-01-00

$45.52

11

SILENCER,EXHAUST

4EW-14753-02-00

Unavailable

12

BOLT, BUTTON HEAD

92017-06010-00

$2.86

13

. FIBER

4EW-1469A-01-00

Unavailable

14

GROMMET(4EW)

90480-16561-00

$13.70

15

COLLAR(52E)

90387-063G3-00

$5.86

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable
