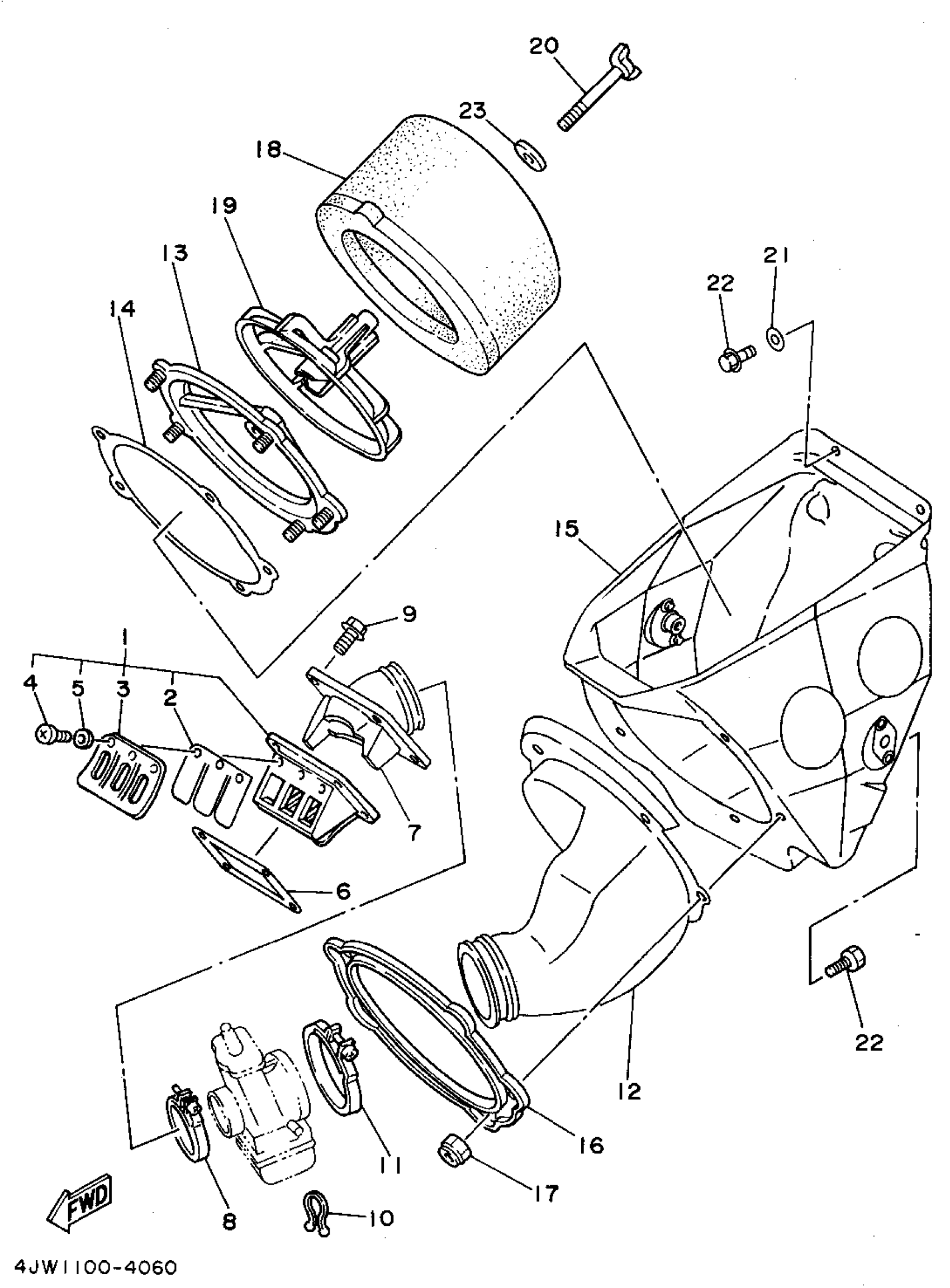

Yamaha WR250ZF (WR250Z) 4JW1 1994 INTAKE Diagram

REED VALVE ASY

4DC-13610-00-00

Unavailable

REED, VALVE

3SP-13613-01-00

$32.99

STOPPER, REED VALVE

8DJ-13616-00-00

$17.49

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

WASHER, SPRING

92990-03100-00

$8.49

GASKET, VALVE SEAT

2K7-13621-10-00

$14.49

JOINT, CARBURETOR

4DC-13565-00-00

Unavailable

HOSE CLAMP ASSY

90450-51001-00

$16.99

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

CLAMP (3Y2)

90464-16039-00

$9.49

HOSE CLAMP ASSY

90450-70002-00

$22.99

JOINT, AIR CLEANER 1

4JW-14453-00-00

Unavailable

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

SEAL

3JD-14462-00-00

$35.99

CASE, AIR CLEANER 1

4JW-14411-00-00

Unavailable

PLATE

5MV-14477-00-00

Unavailable

NUT, U

95617-05100-00

Unavailable

ELEMENT, AIR CLEANER

4PE-14451-02-00

Unavailable

GUIDE

3JD-14458-01-00

Unavailable

BOLT, WING

90122-06005-00

Unavailable

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable
