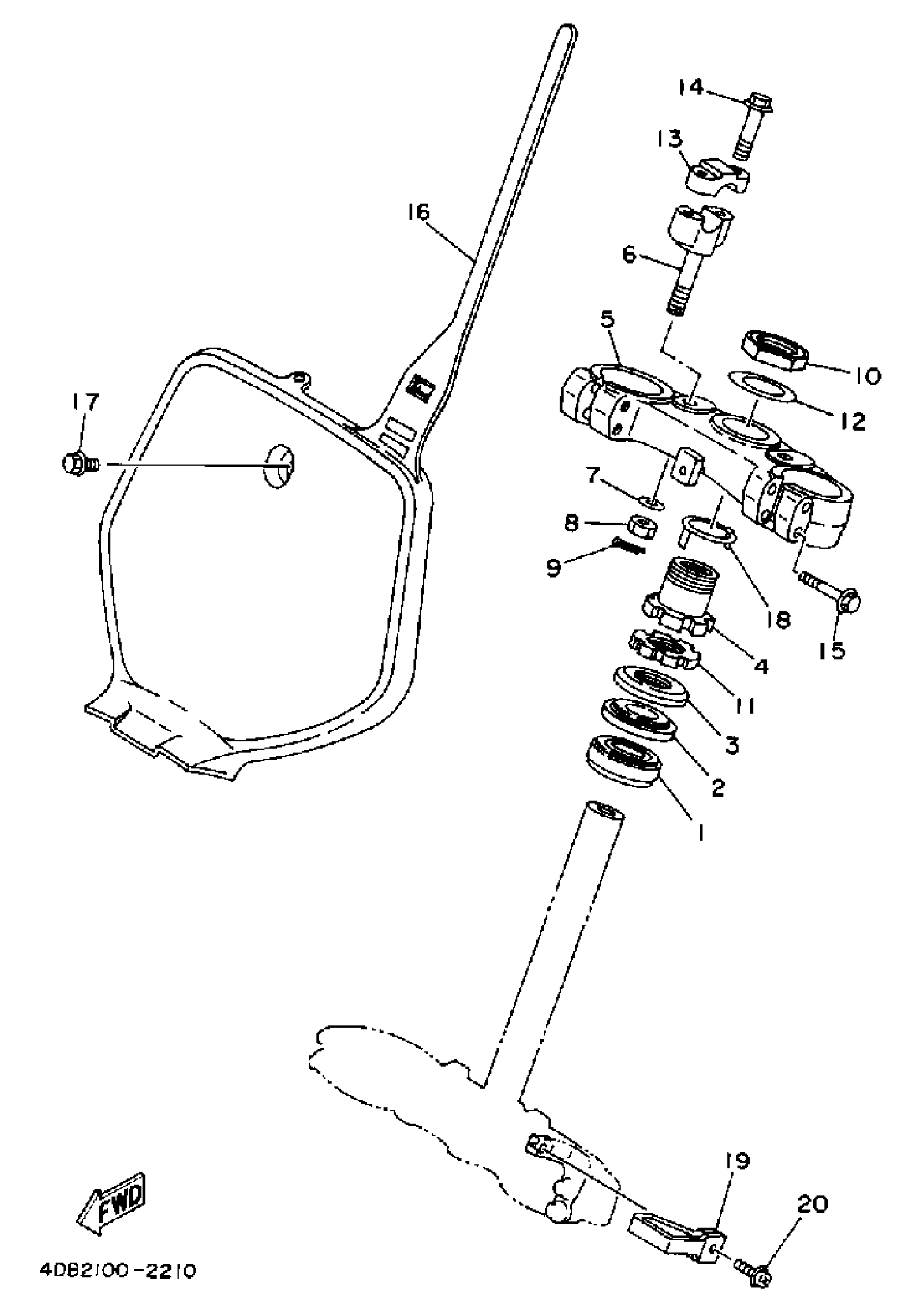

Yamaha WR250ZE (WR250Z) 1993 STEERING Diagram

#

Description
Price

1

BEARING(4EW)

93332-00078-00

$64.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

2HG-23416-00-00

Unavailable

4

NUT(3JD)

90179-28603-00

Unavailable

5

CROWN, HANDLE

4DA-23435-01-00

Unavailable

6

HOLDER, HANDLE LOWER

3SP-23442-00-00

Unavailable

7

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

8

NUT, U (4PM)

95617-12100-00

$4.16

9

PIN, COTTER

91490-25020-00

$3.19

10

NUT

90170-36394-00

Unavailable

11

NUT

90179-28602-00

Unavailable

12

WASHER, PLATE

90201-365M5-00

Unavailable

13

HOLDER, HANDLE UPPER

3SP-23441-00-00

$27.99

14

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

15

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

16

PLATE, NUMBER

4DA-23485-01-00

Unavailable

17

BOLT, WITH WASHER(3JD)

90119-06185-00

Unavailable

18

WASHER, SPECIAL

3SP-23418-00-00

Unavailable

19

GUIDE, CABLE

4DA-23389-00-00

Unavailable

20

SCREW, PAN HEAD

98507-05014-00

Unavailable
