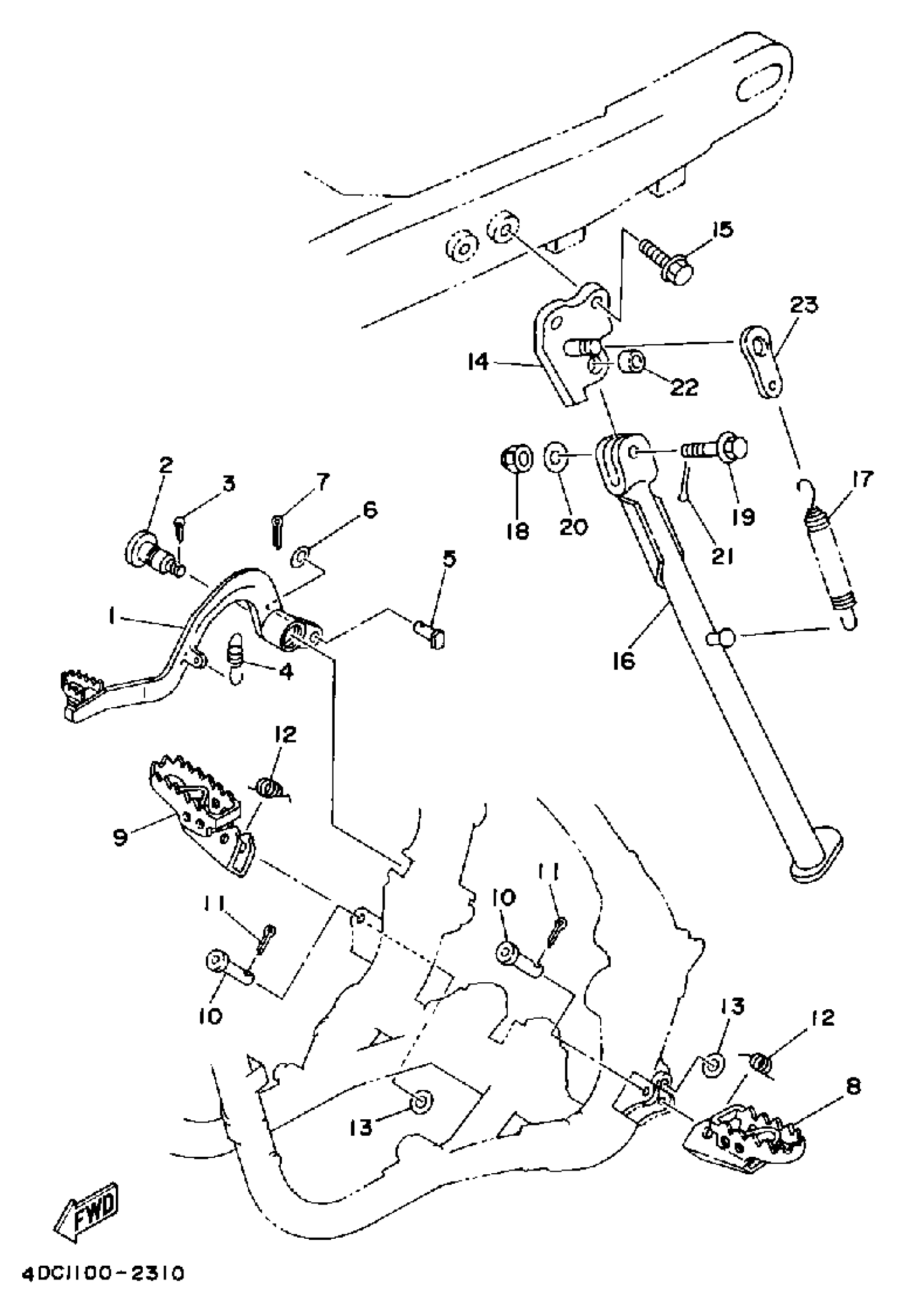

Yamaha WR250ZE (WR250Z) 1993 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL,BRAKE

99999-02364-00

Unavailable

2

BOLT

4AA-27217-00-00

Unavailable

3

PIN, COTTER

91490-20025-00

$1.99

4

SPRING, TENSION

90506-14410-00

Unavailable

5

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

PIN, COTTER

91490-25020-00

$3.19

8

FOOTREST 1

4DA-27411-00-00

Unavailable

9

FOOTREST 2

4DA-27421-00-00

Unavailable

10

PIN, CLEVIS(2HJ)

90240-10117-00

$14.99

11

PIN, COTTER

91490-25020-00

$3.19

12

SPRING, TORSION(3JD)

90508-28777-00

$7.49

13

WASHER, PLAIN(735)

90201-10119-00

Unavailable

14

BRACKET,SIDE STAND

4JW-27321-00-T9

Unavailable

15

BOLT, FLANGE

95817-10030-00

$8.49

16

STAND,SIDE

99999-02779-00

Unavailable

17

SPRING, TENSION

90507-32059-00

Unavailable

18

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

19

BOLT, FLANGE (2XJ)

90105-10549-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

PIN, COTTER

91490-25020-00

$3.19

22

COLLAR

90387-133Y9-00

Unavailable

23

BRACKET 1

4AA-27263-00-00

Unavailable
